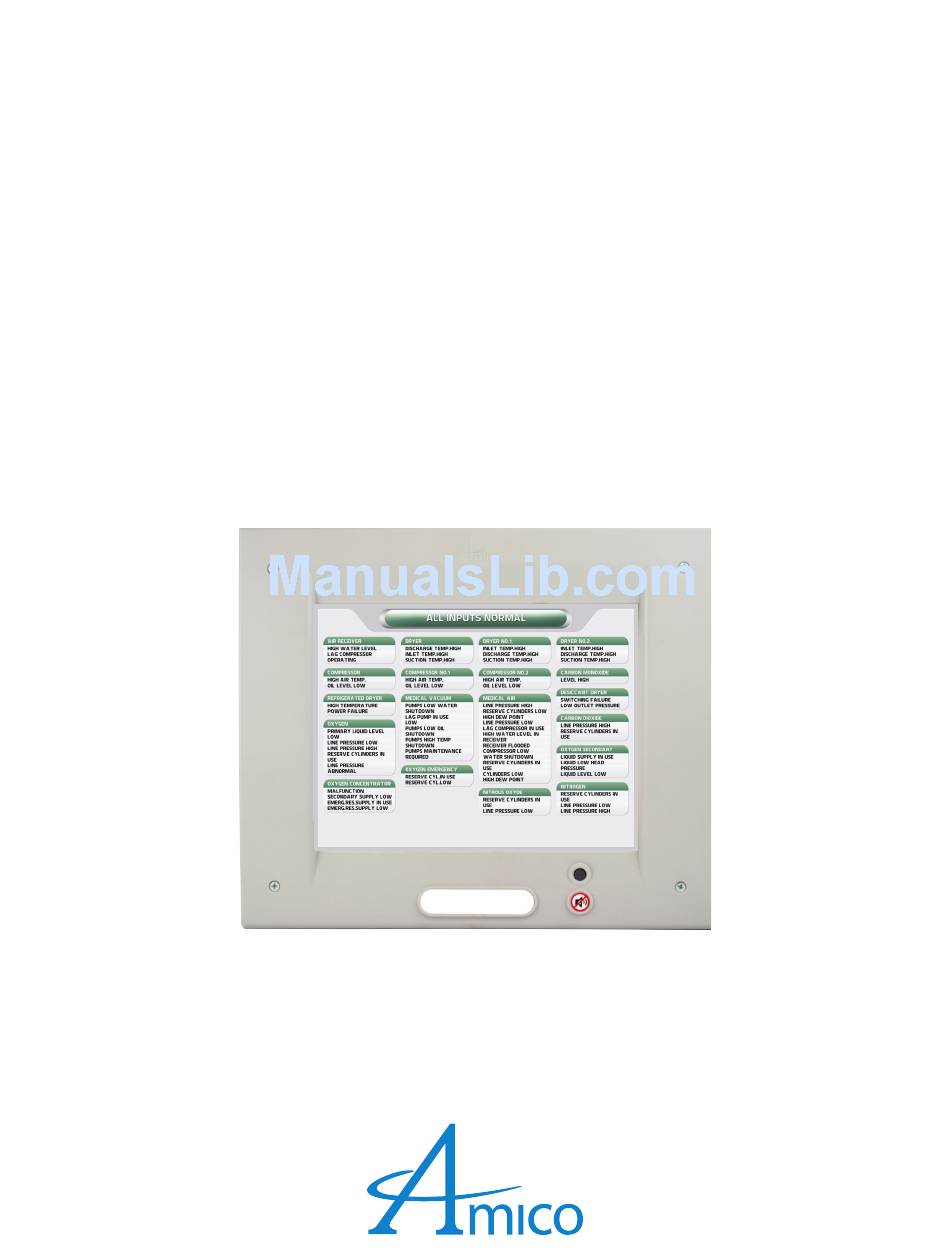

Operating & Maintenance Manual
Alert-4 Ethernet LCD
Master Alarm
w w w . a m i c o . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alert-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amico Alert-4

  • Page 1 Operating & Maintenance Manual Alert-4 Ethernet LCD Master Alarm w w w . a m i c o . c o m...
  • Page 2: Table Of Contents

    The Alarm Back Box Frame/Module Assembly System Power Supply LCD Display Setup Closing the Frame/Module Assembly Configuration Guide 9 - 13 Network Setup Installation Guide 15 - 16 Network Diagrams 17 - 18 Spare Part Numbers Maintenance Mode Troubleshooting Amico Corporation...
  • Page 3: Www.amico.com

    Contents Appendix A Wiring Diagram: LCD Motherboard Appendix B Wiring Diagram: Auto-Switch Power Supply Appendix C Wiring Diagram: LCD Display Module - Alarm Buzzer Appendix D Technical Specifications www.amico.com...
  • Page 4: User Responsibility

    Amico Corporation or their distributors. All alarms should not be repaired or altered without prior written or verbal approval from Amico Corporation or its All alarms should not be repaired, or altered without prior written or verbal approval of Amico Corporation or it’s distributors.
  • Page 5: Features

    • The Amico Alert 4 series Master alarm supports Internet Explorer and Google Chrome Description of the Alarm SHIPMENT DETAILS When you receive an Alert-4 Master LCD series alarm from Amico Corporation, the package will consist of two main sections: the Alarm Back Box, and the Frame/Module Assembly. THE ALARM BACK BOX The Alarm Back Box contains the auto-switchable System Power Supply with an ON/OFF switch, a built-in fuse and terminal blocks (115 to 220 VAC - 50 to 60 Hz).
  • Page 6: Description Of Modules

    By holding the “MUTE” button for 20 seconds, the module will display the terminal points. This module also contains a fail-safe relay that de-energizes when the buzzer is activated. This relay can be used with the Amico Remote Buzzer for applications requiring a remote audible alarm or a Building Management System.
  • Page 7: Installation Guide

    All alarms should not be repaired, or altered without prior written or verbal Remove the frame/module assembly from its protective box. manual, when assembled, operated, maintained and serviced in accordance approval of Amico Corporation or it’s distributors. Failure to comply will void with the installation instructions provided. all warranty on the alarm.
  • Page 8: Lcd Display Setup

    LCD Alarm closed. ii. Carefully place the front frame over the frame panel. Screw in the screws that were removed in Step 2, part ii. The alarm shall now be ready for use. Amico Corporation...
  • Page 9: Configuration Guide

    Module allows up to 16 characters per line. To configure the alarm channels, perform the following steps: 1. Open Master Configuration program provided by Amico Corporation on the SD card. 2. Click “File” located at the top left corner. Then click “Start New Config”. Then click “Add Group”.
  • Page 10 Configuration Guide 3. Double click on the “Group 1" column. The “Edit Group” window will pop up. 4. Under “Group Name”, identify medical gas source supply (e.g., Oxygen Bulk Farm). Amico Corporation...
  • Page 11 Primary Liquid Level Low). To set alarm conditions for normally open or closed circuit, click the drop down arrow to change alarm conditions. a. To modify the Group Name, double click to open the “Edit Group” window. Revise the group name then click “Apply“. www.amico.com...
  • Page 12 To modify the Channel Name, double click to open the “Edit Group” window. Click the channel you want to revise then revise the channel name. Click “Modify” then click “Apply“. 6. Click the “Apply” button to complete each group. Amico Corporation...
  • Page 13 Configuration Guide 7. Save the Configuration file to the SD Card and rename the file. The file name must be saved as master.cfg as “Master Configuration“ file type. www.amico.com...
  • Page 14: Network Setup

    NOTE: It is best to use a switch instead of a hub because the device communicates at 10 Mbits/s a switch and it also improves network performance and keeps unnecessary traffic from being routed to the alarm. • Amico Alert 4 Master Alarm will be set to factory default settings, the IP Address, Subnet Mask and Gateway as following: IP Address: 192.168.1.100...
  • Page 15: Installation Guide

    Open the SD Card with files provided by Amico Corporation. Open the file named “Network” to change desire network IP address. Change the selected Amico’s default IP address to the desire IP address, Gateway and Subnet Mask, then save the file by clicking “File“ then “Save“.
  • Page 16: Installation Guide

    If the configurated information does not appear on the screen, repeat above steps. If the problem persists, contact Amico Corporation for further assistance. • Once the text is visible on the LCD Alarm screen, leave the SD Card in the slot for approximately 1 minute in order for the information to be completely uploaded onto the master alarm, and then proceed to remove the card.
  • Page 17: Network Diagrams

    Network Diagrams DIRECT CONNECTION SIMPLE UNMANAGED NETWORK www.amico.com...
  • Page 18: Network Diagrams

    Network Diagrams COMPLEX MANAGED NETWORK Amico Corporation...
  • Page 19: Spare Part Numbers

    • Press the Setup button and select the Maintenance Mode by pressing the B4 button • Use the Up and Down buttons to activate the Maintenance Mode to either Enable or Disable. Display will show "Maintenance Mode Active" when Maintenance Mode is enabled. www.amico.com...
  • Page 20: Troubleshooting

    Disconnect the DC power cable from system power supply to LCD module is the LCD module and then reconnect. If loose audible alarm still persists, replace the System Power Supply unit. Faulty push button Replace the LCD module. Amico Corporation...
  • Page 21 WIRING DIAGRAM: LCD MOTHERBOARD Connector Mute Button (located on reverse side of board) LCD Cable Connector Dry Contacts (to Building Management SD Card System) Reset +12V Button GRND LCD Power Four Push Buttons Buzzer 12V DC Output Ethernet Port www.amico.com...
  • Page 22 115 to 220 VAC N - Neutral G - Ground G - Ground Ground Ground Toggle Switch Toggle Switch Fuse (1 AMPw) Fuse (1 AMPw) DC Power Cable: Connect to LCD Module DC Power Cable: Connect to Annunciator Module Amico Corporation...
  • Page 23 NO COM NC 12V GND NOTE: Relays on the annunciator are fail safe for Version 3.1 or newer. Relays are not fail safe for Versions Reset +12V Button 3.0 or older. GRND NO COM NC 12V GND NO COM NC NO COM www.amico.com...
  • Page 24 Maximum 10,000 ft [3,000 m] Cable: Minimum #22 gauge wire Signal: 5 VDC 30 µA LCD Generic Alarm: Output: Dry Contacts NC, open on Alarm Rating: 30 VDC 1.0 Amps. 60 VDC 0.3 Amps. 125 VAC 0.5 Amps. Amico Corporation...
  • Page 25 Amico Corporation | www.amico.com 85 Fulton Way, Richmond Hill Ontario, L4B 2N4, Canada Toll Free Tel: 1.877.462.6426 Toll Free Fax: 1.866.440.4986 Tel: 905.764.0800 Fax: 905.764.0862 Email: info@amico.com APE-MANUAL-ALERT4-MASTER 01.28.2015...
