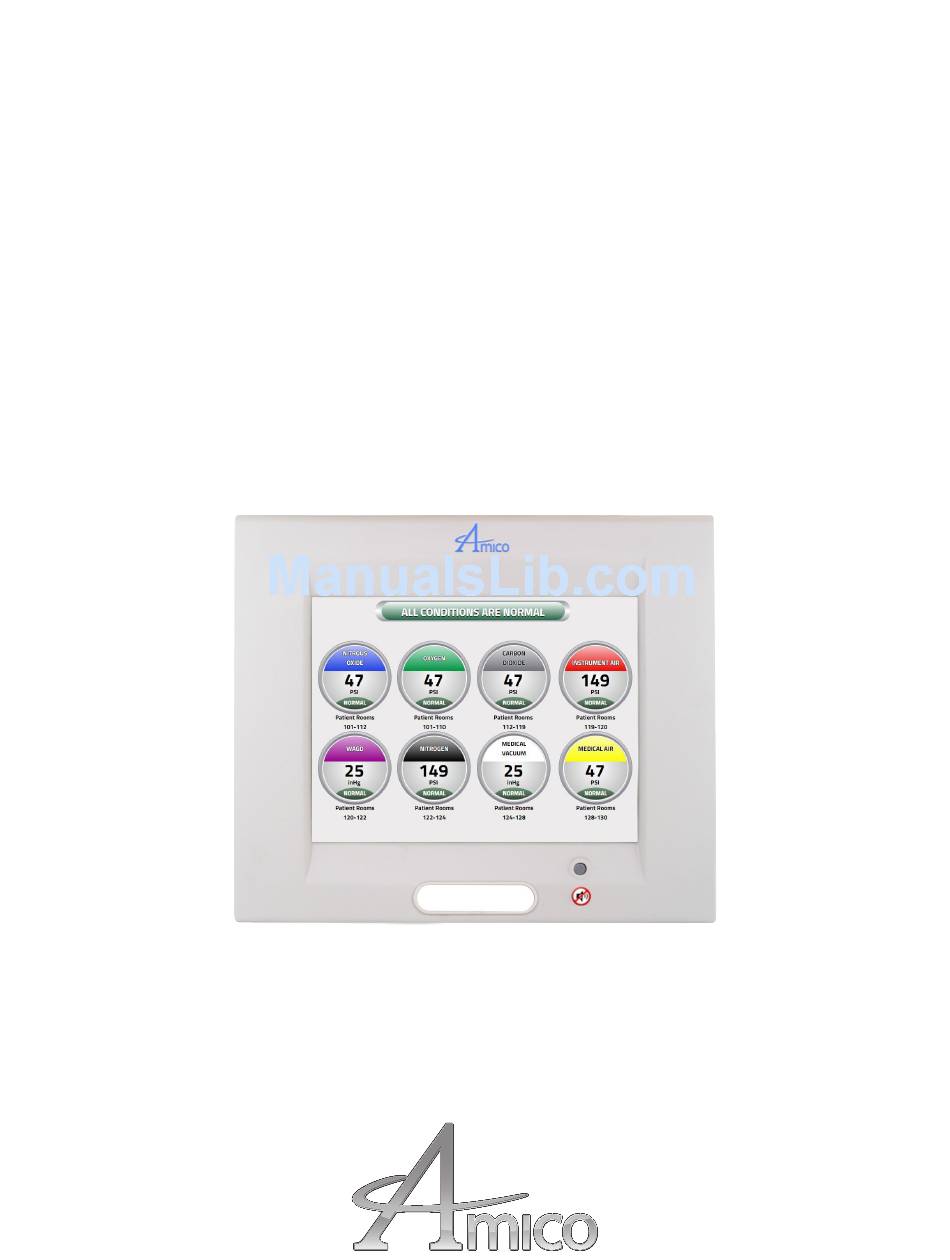

- Page 1 Operating & Maintenance Manual Alert-4 Ethernet LCD Area Alarm Andersen Medical Gas 12 Place Lafi fi tte Madisonville, LA 70447 http://www.TheMedicalGas.com 1-866-288-3783...
-
Page 2: Table Of Contents
Local Remote LCD Display Module LCD Display Setup Closing The Frame/Module Assembly Configuration Guide 12 - 18 Network Setup Changing IP Address 13-14 Email Setup Text Setup Connecting to Alarm Direct Connection Simple Unmanaged Network Complex Managed Network Amico Corporation... - Page 3 Wiring Diagram: Auto-Switch Power Supply Appendix C Wiring Diagram: LCD Display Module - Alarm Buzzer Appendix D Wiring Diagram: LCD Display Module - Local Sensor Appendix E Wiring Diagram: LCD Display Module - Remote Sensor Appendix F Technical Specifications Appendix G Wiring Notes www.amico.com...
-
Page 4: User Responsibility
Should such repair or replacement become necessary, please contact Amico Corporation All alarms should not be repaired or altered without prior written or verbal approval from Amico Corporation or its or their distributors. -
Page 5: Features
• LCD Alarm available in 1 to 8 gases Description of the Alarm SHIPMENT DETAILS When you receive an Alert-4 LCD series alarm from Amico Corporation, the package will consist of three main sections: the Alarm Back Box, Sensors and the Frame/Module Assembly. THE ALARM BACK BOX The Alarm Back Box contains the auto-switchable System Power Supply with an ON/OFF switch, a built-in fuse and terminal blocks (115 to 220 VAC - 50 to 60 Hz). -
Page 6: Description Of Modules
Ethernet that de-energizes when the buzzer is activated. This relay can be Jumper Port used with the Amico Remote Buzzer for applications requiring a remote audible alarm, master alarm or a Building Management System. SENSOR MODULE The Sensor Module contains the transducer which converts the source of the pressure/vacuum into a digital signal that is displayed on the LCD alarm. -
Page 7: Installation Guide
All alarms should not be repaired, or altered without prior written or verbal approval of Amico Corporation or it’s distributors. Failure to comply will void Alert-3 sensor operating pressure range: all warranty on the alarm. -
Page 8: Remote
Attach the LCD screen to the back box assembly by using flat head screws approval of Amico Corporation or it’s distributors. Failure to comply will void (provided with frame in a plastic bag) to the hinge located on the back box. -
Page 9: System Power Supply
USER RESPONSIBILITY All alarms should not be repaired, or altered without prior written or verbal approval of Amico Corporation or it’s distributors. Failure to comply will void Installation Guide all warranty on the alarm. WARNING CAUTION Statements in this manual preceded by the words... -
Page 10: Local
COM (Common), NO (Normally Open) or NC (Normally Closed), using the diagram in Appendix A. See Appendix G for contact rating. Once the sensors are connected and the power has been switched on, use the following steps to setup the LCD Alarm. 10 Amico Corporation... -
Page 11: Lcd Display Setup
Close the frame panel by tightening the screws found on the frame panel to the back box. Ensure that the approval of Amico Corporation or it’s distributors. Failure to comply will void screws are securely fastened to keep the LCD Alarm closed. -
Page 12: Configuration Guide
NOTE: It is best to use a switch instead of a hub because the device communicates at 10 Mbps. A switch is better able to support this speed, improves network performance and keeps unnecessary traffic from being routed to the alarm. • Amico Alert-4 Area alarm will be set to factory default setting, the IP Address, Subnet Mask and Gateway as following: IP address: 192.168.1.100... -
Page 13: Changing Ip Address
Configuration Guide CHANGING IP ADDRESS Open the SD Card with the files provided by Amico Corporation. Open the file named “network” to change the network IP address. Change the default IP address to the desired IP address, Gateway and Subnet Mask; then save the file by clicking “File“... - Page 14 If the configured information does not appear on the screen, repeat the steps above. If the problem persists, contact Amico Corporation for further assistance. • Once the information is visible on the LCD Alarm screen, leave the SD Card in the slot for approximately 1 minute in order for the information to be completely uploaded onto the alarm, and then proceed to remove the card.
-
Page 15: Email Setup
This product will perform to conformity with the descriptions contained in this manual, when assembled, operated, maintained and serviced in accordance Open the network configuration file on the SD card provided by Amico to input the SMTP server parameters. with the installation instructions provided. -
Page 16: Text Setup
Should such repair or replacement become necessary, please contact Amico Corporation Open the network configuration file on the SD card provided by Amico to input the SMTP server parameters. or their distributors. -
Page 17: Connecting To Alarm
• Start the web browser (Google Chrome, Internet Explorer) • Enter the device IP address eg: (http://192.168.1.1xx) in the browser’s address bar*. NOTE: To find Alarm IP Address, press reset button on the back of the Alert-4 Area Alarm. DIRECT CONNECTION SIMPLE UNMANAGED NETWORK www.amico.com... -
Page 18: Complex Managed Network
Configuration Guide COMPLEX MANAGED NETWORK 18 Amico Corporation... -
Page 19: Programming Gas Locations
6. While the LCD Alarm is on, press the reset button, then press and hold the setup button until the information from the file saved on the SD Card (location.txt) appears on the LCD Alarm Screen. • If the gas location text does not appear on the screen, repeat step #6. If the problem persists, contact Amico Corporation for further assistance. -
Page 20: A4 Alarm Iphone App
3. The screen will prompt for you to name the device. The 4. The App icon will be display in the Home Screen. name can be either a device name or it can be a location where the device is installed. 20 Amico Corporation... -
Page 21: A4 Alarm Android App
3. The Short Cut icon will be display in the Home Screen. 4. The device name can be edited by clicking “Edit”. The name can be either a device name or it can be a location where the device is installed. Click “Save”. www.amico.com... -
Page 22: Model Numbers
F = French (CSA/ISO) = Nitrogen S = Spanish (NFPA/ISO) CO2 = Carbon Dioxide WAG = Waste Anesthetic Gas Disposal AGS = Anesthetic Gas Scavenging System NOTE: Each Alert-3 Sensor comes with an A2P-PIPE = Instrument Air 22 Amico Corporation... -
Page 23: Spare Part Numbers
Pipe, Demand Check,Gas Specific Label CO2 A2P-PIPE-EVA Pipe, Demand Check,Gas Specific Label WAG A2P-PIPE-IAR Pipe, Demand Check,Gas Specific Label IAR A2P-PIPE Pressure Module Pipe Assembly (Alert-2) A3X-P-SW-PVCAP LCD PVA Switch Cap-Gray A3X-LCD-LABEL LCD Alarm Front Label A3X-LCD-LABEL-MUTE Alert-3 Mute Label www.amico.com... -
Page 24: Demand Check Valves
DISS Demand Check, Nut and Nipple - NIT S-DIS-KIT-WAG DISS Demand Check, Nut and Nipple- WAG S-DIS-KIT-AGS DISS Demand Check, Nut and Nipple- AGS S-DIS-KIT-IAR DISS Demand Check, Nut and Nipple - IAR S-DIS-KIT-CO2 DISS Demand Check, Nut and Nipple - CO2 24 Amico Corporation... -
Page 25: Dimensions
[19.05] or cable ALERT-4 SENSOR 6" - 8" [0.1m - 0.2 m] #22 gauge 1/2”-14 NPSM [13] stranded, shielded and twisted 1.88 [48] pair cable supplied Wrench Flats [25] (Approximate, can vary) DISS Connector 1/2" Conduit Connection www.amico.com... -
Page 26: Troubleshooting
Disconnect the DC power cable from system power supply to LCD module is the LCD module and then reconnect. If loose audible alarm still persists, replace the System Power Supply unit. Faulty push button Replace the LCD module. 26 Amico Corporation... -
Page 27: Troubleshooting
(see pg. 11, Step 9) Faulty sensors Replace sensors FACTORY DEFAULT SETTING GAS Mid Pressure = 60 psi = 40 psi Vacuum = 32 inHg = 12 inHg High Pressure = 195 psi = 140 psi www.amico.com... -
Page 28: Appendix A
Amico Corporation or their distributors. All alarms should not be repaired, or altered without prior written or verbal approval of Amico Corporation or it’s distributors. Failure to comply will void Four Push 12V DC Buttons all warranty on the alarm. -
Page 29: Wiring Diagram: Auto-Switch Power Supply
Connect to Annunciator Module or their distributors. All alarms should not be repaired, or altered without prior written or verbal approval of Amico Corporation or it’s distributors. Failure to comply will void all warranty on the alarm. WARNING CAUTION Statements in this manual preceded by the words... -
Page 30: Wiring Diagram: Lcd Display Module - Alarm Buzzer
NC COM NO 12V GND NO COM NC 12V GND NOTE: Relays on the annunciator are fail safe for Version 3.1 or newer. Reset +12V Button GRND Relays are not fail safe for Versions 3.0 or older. 30 Amico Corporation... -
Page 31: Wiring Diagram: Lcd Display Module - Local Sensor
All alarms should not be repaired, or altered without prior written or verba drain wire at sensor or inside approval of Amico Corporation or it’s distributors. Failure to comply will vo all warranty on the alarm. alarm panel back box... -
Page 32: Wiring Diagram: Lcd Display Module - Remote Sensor
Note: For multiple sensors, a multi-conductor twisted pair cable can be used. NOTE: For multiple sensors, a multi-conductor #22 Gauge Reset stranded, shielded and +12V Button GRND twisted pair cable ONLY must be used. 32 Amico Corporation... -
Page 33: Technical Specifications
Maximum 10,000 ft [3,000 m] Cable: Minimum #22 gauge stranded wire Signal: 5 VDC < 5 µA LCD Generic Alarm: Output: Dry Contacts NC, open on Alarm Rating: 30 VDC 1.0 Amps. 60 VDC 0.3 Amps. 125 VAC 0.5 Amps. www.amico.com... -
Page 34: Appendix G Wiring
The following rules along with references to this manual’s schematics clarify wiring requirements. Two conductor cables (must be #22 gauge stranded, shielded and twisted pair cable type) are required for each Gas Sensor module to the Gas Input board. 34 Amico Corporation... -
Page 35: Notes
Notes www.amico.com... -
Page 36: Www.amico.com
Madisonville, LA 70447 http://www.TheMedicalGas.com 1-866-288-3783 Amico Corporation | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada 71 East Industry Court, Deer Park, NY 11729, USA Toll Free Tel: 1.877.462.6426 | Tel: 905.764.0800 | Fax: 905.764.0862 Email: info@amico.com | www.amico.com...
