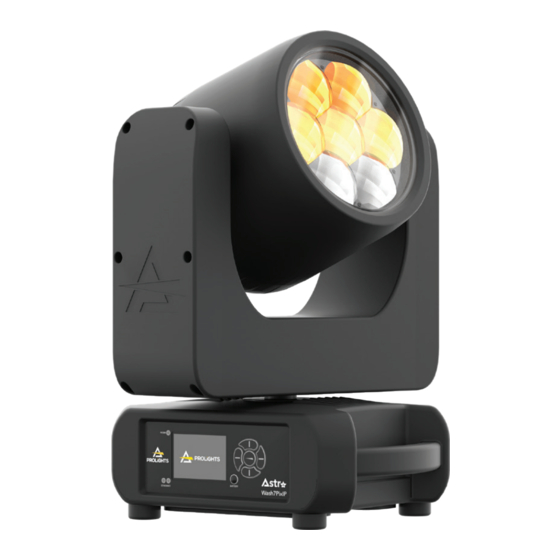

- Page 1 Astra Wash7PixIP IP65 moving wash light with 7x40W RGBW LED and 4°-59° zoom USER MANUAL English version REV.02-09/21...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
IDENTIFICATION OF ELECTRONIC BOARDS ............29 16 - PERIODICAL CLEANING 17 - TEST OF IP65 RATING 18 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............33 REPLACING THE FUSE ....................33 VISUAL CHECK OF PRODUCT HOUSING ..............33 TROUBLESHOOTING ..................... 34 PROLIGHTS - Astra Wash7PixIP... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Astra Wash7PixIP...
-
Page 7: Packaging
• FCLASTRAB260IP: flight case for 2 pcs of ASTRABEAM260IP; • OSIP: IP65 quick-lock omega bracket compatible with IP65 moving heads; • IPTESTBOX: portable vacuum and pressure tester for ProLights IP fixtures; • UPBOX2: Firmware uploader kit, USB IN, 3-pin XLR DMX OUT. -
Page 8: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR1235A/B clamp Steel security cable OS24 108 mm [4.2 in] Fig. 02 PROLIGHTS - Astra Wash7PixIP... -
Page 9: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Wash7PixIP... -
Page 10: Product Overview
8. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C; 9. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. Fig. 03 PROLIGHTS - Astra Wash7PixIP... -
Page 11: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 25 DMX channels configuration PROLIGHTS - Astra Wash7PixIP... -
Page 12: Construction Of The Dmx Termination
(Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • IP addresses recommended: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Wash7PixIP... -
Page 13: Ethernet To Dmx Operations
NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. NOTE: Do not use IN TO WDMX and ETH TO DMX simultaneously, this will cause data conflict on DMX output signal. PROLIGHTS - Astra Wash7PixIP... -
Page 14: Operation As A Wireless Receiver
• The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Wash7PixIP... -
Page 15: Control Panel
• Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network (color orange). PROLIGHTS - Astra Wash7PixIP... -
Page 16: Menu Structure
ETHERNET ARTNET SETTINGS IP ADDRESS Set IP address of the fixture. SETTING Set Net for ArtNet protocol. SUBNET Set Subnet for ArtNet protocol. UNIVERSE Universe ArtNet protocol. PROLIGHTS - Astra Wash7PixIP... - Page 17 CUSTOM P DEGREE To choose pan values in case of Custom position. 315° CUSTOM T DEGREE To choose tilt values in case of Custom position. 100% FIXTURE AUTO FAN MODE Select Fan behaviour. SETTINGS SILENT HIGH PROLIGHTS - Astra Wash7PixIP...
- Page 18 WITH DMX including or not the dmx ADDRESS address. ADVANCED RESET To reset these functions. PAN & TILT ZOOM CALIBRATION PASSWORD For the calibration of these functions. 050 password for user reset. TILT PROLIGHTS - Astra Wash7PixIP...
- Page 19 PAN, TILT... To see any error messages. MESSAGE FIXTURE XXXXXXXXXX View informations about fixture MODEL model. RDM UID (READ AND RESET) View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about soft- VERSION ware version. PROLIGHTS - Astra Wash7PixIP...
-
Page 20: Shortcut
Directly flip display without enter inside menu. after power on DOWN Reset without Fixture will be powered on without reset on pan/tilt then power on pan/tilt movements movements. ENTER + UP Bootloader Force firmware upgrade. then power on PROLIGHTS - Astra Wash7PixIP... -
Page 21: Rdm Functions
0x0140 DMX_FAIL_MODE 0x0141 DMX_STARTUP_MODE 0x0142 Dimmer DIMMER_INFO 0x0340 Settings MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - Astra Wash7PixIP... - Page 22 Custom Pids FIX. ENGINE PROT. (0:W/DMX 1:sACN 0x8010 2:ArtNet) PIX. ENGINE PROT. (0:W/DMX 1:sACN 0x8020 2:ArtNet 3:sAK 4:ArtK 5:K 6:sAN) PIX. ENGINE ADDR. (1-512) 0x8030 PIX. ENGINE MODE (0:Off 1:Ring 2:Pixel) 0x8040 KLINGNET (0:Off 1:On) 0x8050 PROLIGHTS - Astra Wash7PixIP...
-
Page 23: Dmx Charts
CTO on colors Background Strobe Tint Tint Background Red Pattern Background Green Pattern Speed Background Blue Pattern Fade Background White Pattern Transition Foreground Intensity Foreground Strobe Background Intensity Background Strobe Background Red Background Green Background Blue Background White PROLIGHTS - Astra Wash7PixIP... - Page 24 Blue 3 White 3 Red 4 Green 4 Blue 4 White 4 Red 5 Green 5 Blue 5 White 5 Red 6 Green 6 Blue 6 White 6 Red 7 Green 7 Blue 7 White 7 PROLIGHTS - Astra Wash7PixIP...
- Page 25 044 ÷ 045 Deep Golden Amber 046 ÷ 047 Medium Blue 048 ÷ 049 Bright Pink 050 ÷ 051 Mauve 052 ÷ 053 Dark Green 054 ÷ 055 Lee Green 056 ÷ 057 Dark Blue 058 ÷ 059 PROLIGHTS - Astra Wash7PixIP...
- Page 26 Lineary from 0% to 100% 000 ÷ 255 ZOOM FINE Lineary from 0% to 100% 000 ÷ 255 PIXEL ENGINE PROTOCOL CROSSFADE Fades from 1 to 2 protocol according to the combination choosed 000 ÷ 255 PROLIGHTS - Astra Wash7PixIP...
- Page 27 136 ÷ 137 IN TO WDMX ON (MAIN FIXTURE TO WDMX) 138 ÷ 139 IN TO WDMX ON (PIXEL ENGINE TO WDMX) 140 ÷ 141 Reserved 142 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - Astra Wash7PixIP...
- Page 28 Lineary from 0% to 100% 000 ÷ 255 BACKGROUND GREEN Lineary from 0% to 100% 000 ÷ 255 BACKGROUND BLUE Lineary from 0% to 100% 000 ÷ 255 BACKGROUND WHITE Lineary from 0% to 100% 000 ÷ 255 PROLIGHTS - Astra Wash7PixIP...
-
Page 29: Ring Layout
13 - RING LAYOUT Fig. 08 14 - PIXEL LAYOUT Fig. 09 PROLIGHTS - Astra Wash7PixIP... -
Page 30: Error Messages
[LED DRIVER overheating in the head has occurred and the Yellow TEMPERATURE ERROR] lamp has been switched OFF by the product protection system. [LED PCB ERROR] LED PCB 1 not detected during reset Yellow PROLIGHTS - Astra Wash7PixIP... -
Page 31: Identification Of Electronic Boards
IDENTIFICATION OF ELECTRONIC BOARDS 3U PCB 2U PCB 1U PCB Fig. 10 PROLIGHTS - Astra Wash7PixIP... -
Page 32: Periodical Cleaning
16 - PERIODICAL CLEANING WARNING! Turn OFF power and allow approximately 20 minutes for the fixture to cool down. Use a soft cloth dampened with any detergent liquid for cleaning to remove the dirt from the optics. Fig. 11 PROLIGHTS - Astra Wash7PixIP... -
Page 33: Test Of Ip65 Rating
17 - TEST OF IP65 RATING After servicing to controll the correct sealing to use the IPTESTBOX. Remove the gore valve from the connections panel. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. PROLIGHTS - Astra Wash7PixIP... - Page 34 Loosen the four screws (4) and remove the rear cover. Remove the gore valve on the rear connec- tion heatsilk module (5) and insert the hex socket cap head included in the IPTESTBOX box (6). For the operating procedure using the instrument, refer to the IPTESTBOX user manual. Fig. 12 PROLIGHTS - Astra Wash7PixIP...
-
Page 35: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 36: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 37 Note...
- Page 38 Note...
- Page 40 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
