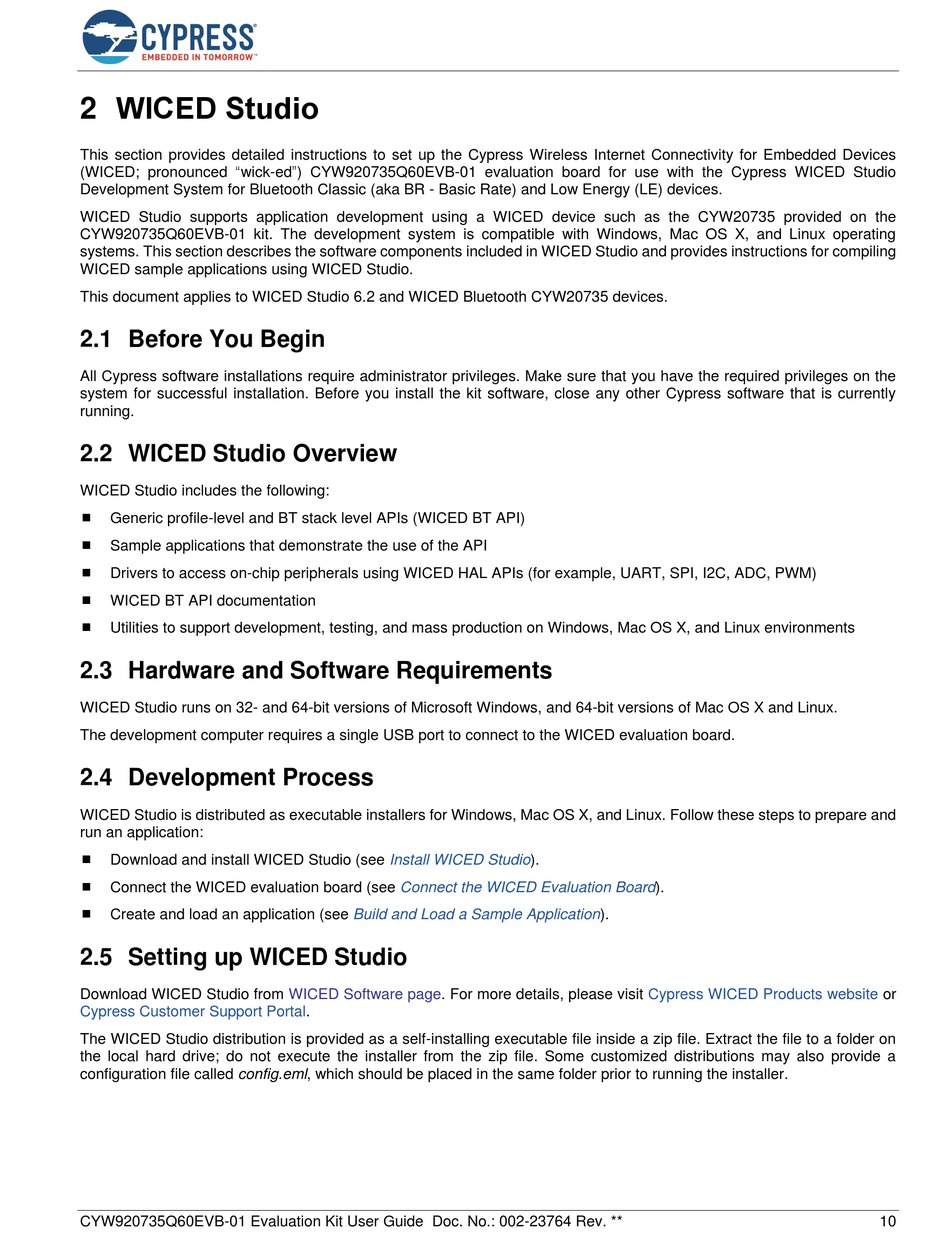

2 WICED Studio

This section provides detailed instructions to set up the Cypress Wireless Internet Connectivity for Embedded Devices
(WICED; pronounced "wick-ed") CYW920735Q60EVB-01 evaluation board for use with the Cypress WICED Studio
Development System for Bluetooth Classic (aka BR - Basic Rate) and Low Energy (LE) devices.
WICED Studio supports application development using a WICED device such as the CYW20735 provided on the
CYW920735Q60EVB-01 kit. The development system is compatible with Windows, Mac OS X, and Linux operating
systems. This section describes the software components included in WICED Studio and provides instructions for compiling
WICED sample applications using WICED Studio.
This document applies to WICED Studio 6.2 and WICED Bluetooth CYW20735 devices.

2.1 Before You Begin

All Cypress software installations require administrator privileges. Make sure that you have the required privileges on the
system for successful installation. Before you install the kit software, close any other Cypress software that is currently
running.

2.2 WICED Studio Overview

WICED Studio includes the following:

Generic profile-level and BT stack level APIs (WICED BT API)

Sample applications that demonstrate the use of the API

Drivers to access on-chip peripherals using WICED HAL APIs (for example, UART, SPI, I2C, ADC, PWM)

WICED BT API documentation

Utilities to support development, testing, and mass production on Windows, Mac OS X, and Linux environments

2.3 Hardware and Software Requirements

WICED Studio runs on 32- and 64-bit versions of Microsoft Windows, and 64-bit versions of Mac OS X and Linux.
The development computer requires a single USB port to connect to the WICED evaluation board.

2.4 Development Process

WICED Studio is distributed as executable installers for Windows, Mac OS X, and Linux. Follow these steps to prepare and
run an application:

Download and install WICED Studio (see

Connect the WICED evaluation board (see

Create and load an application (see

2.5 Setting up WICED Studio

Download WICED Studio from
Cypress Customer Support
The WICED Studio distribution is provided as a self-installing executable file inside a zip file. Extract the file to a folder on
the local hard drive; do not execute the installer from the zip file. Some customized distributions may also provide a
configuration file called config.eml, which should be placed in the same folder prior to running the installer.
CYW920735Q60EVB-01 Evaluation Kit User Guide Doc. No.: 002-23764 Rev. **
Install WICED
Connect the WICED Evaluation
Build and Load a Sample
WICED Software page. For more details, please visit
Portal.
Studio).
Board).
Application).
Cypress WICED Products website or
