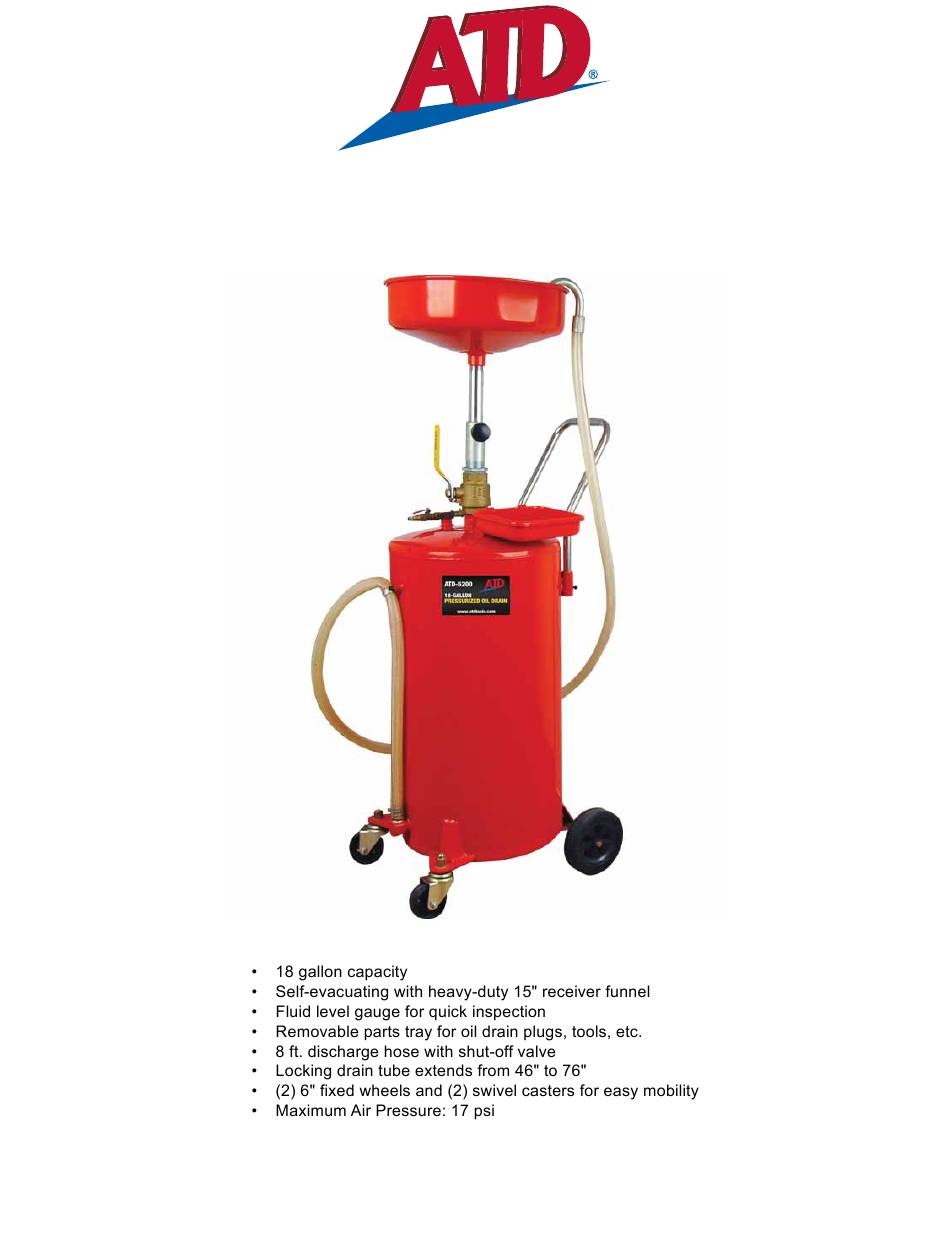

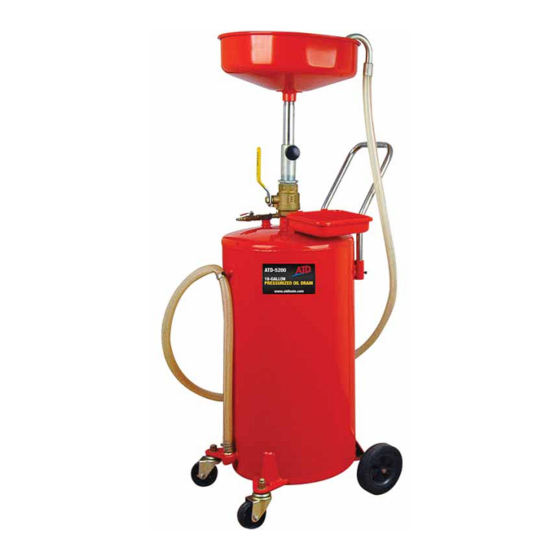

- Page 1 ATD-5200 18 Gallon Pressurized Oil Drain Owner’s Manual FEATURES: ATD5200_rev_1117 Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
- Page 2 General Safety Warnings: WARNING: The instru ons and warnings contained in this manual should be read and understood before using or this tool. Do not allow anyone to use or operate this tool un l they have read this manual and have developed a thorough understanding of how this tool works. Failure to observe any of the following instruc ons could result in severe personal injury to tool user and bystanders, or cause damage to the tool and property.
- Page 3 WARNING: Always use air hose and couplings with a minimum working pressure ra ng of at least 1 1/2 mes the maximum working pressure ra ng of the tool. WARNING: Do not depress the tool trigger/lever when conne ng the air supply hose. WARNING: Do not lock, tape, wire, or otherwise disable the “ON/OFF”...
- Page 4 WARNING: MAX Pressure – 17 psi. Never pressurize tank with ball valve open. If used oil does not evacuate tank upon pressuriza check that ball valve is fully closed (handle in horizontal pos n). If this does not correct the problem remove the unit from service and contact an authorized service center for repair.
- Page 5 Opera ng Ins TO DRAIN OIL: With valve fully open (valve handle in ver cal pos on), raise drain bowl to desired height and lock in place. Drain oil into bowl/tank assembly. Check sight gauge tube on back side of tank frequently. DO NOT ll tank above maximum oil level as shown.
- Page 6 TO EVACUATE OIL Evacuate used oil from tank when maximum oil level is obtained. DO NOT ll tank above maximum oil level as indicated above. Raise drain bowl and lock in place, close valve fully (valve handle in horizontal pos on), and place nozzle SECURELY into used oil co on reservoir.
- Page 7 ATD-5200 ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION T5200 01 UNNE A E B Y T5200 15 TANK A E B Y T5200 02 D A N TUBE T5200 K T5200 03 ” N T5200 17 BA BED...
- Page 8 WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES...
