Summary of Contents for ATD Tools SPI-77000
- Page 1 SPI-77000 User Manual Peugeot...
-
Page 2: Table Of Contents
Contents Product Installation........................1 Toggle Switch Setup........................1 Cables Connection........................2 Product accessories....................2 Cable connection chart....................2 CarPlay box & Wi-Fi antenna installation...............3 Mic installation......................4 Sound Setup..........................5 Reverse Camera and 360 Camera..................6 CarPlay and Android Auto......................7 Wireless CarPlay / Android Auto................7 Wired CarPlay / Android Auto...................8 Air Play and Mirror Link......................8 Wireless Air Play......................8 Wireless Android Mirroring..................9... -
Page 3: Product Installation
1. Product Installation Please scan below QR code, view the detail via YouTube video about dashboard removal guidance. 2. Toggle Switch Setup Where to find the toggle switch? Notice: TF card slot only used for the software upgrading. Dial code setup Notice: if the car has original OEM camera, the status of code NO.1 shall be “on”. -
Page 4: Cables Connection

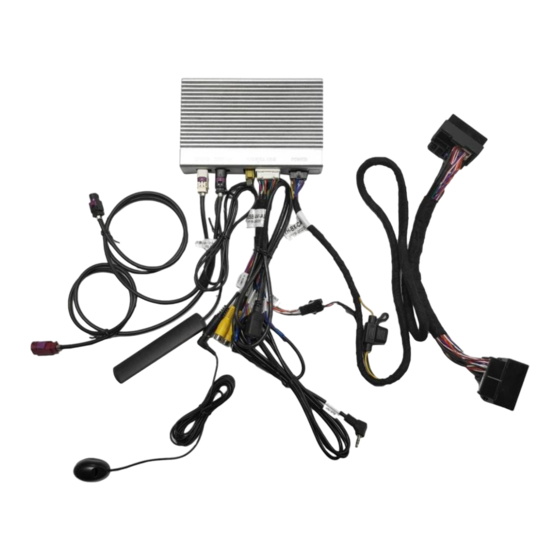

3. Cables Connection 3.1 Product accessories 3.2 Cable connection chart ① LVDS IN cable: connect with original car CD host LVDS port and LVDS IN port of 2 / 13... -
Page 5: Carplay Box & Wi-Fi Antenna Installation
CarPlay decoder ② LVDS OUT cable: connect with original LVDS cable and LVDS out port of CarPlay decoder ③ WIFI antenna ④ External MIC ⑤ AUX OUT connect ⑥ AUX ⑦ and ⑧ New power cable: connect with original CD host and power cable 3.3 CarPlay box &... -
Page 6: Sound Setup
After cable connection done, long-press the “phone” button for 2 seconds, you can switch the system between the original system and the CarPlay system. 4. Sound Setup 1) Disconnect the Bluetooth between your phone and your car. 2) Connect the Audio cable together as below shown 4 / 13... -
Page 7: Reverse Camera And 360 Camera
Notice: Sound transmission need to connect “Aux out”. 3) AUX setup Before using the CarPlay system, please set “AUX” as audio transmission channel. 5. Reverse Camera and 360 Camera 1) Original camera setting If the car has original camera, code NO.1 of toggle switch need to be set as “on”. 2) Aftermarket rear camera For the aftermarket rear camera, please follow below figure to connect the cable. -
Page 8: Carplay And Android Auto
3) Aftermarket 360 camera 360 camera needs to connect cable NO. 3 and NO. 9（REVERSE CAMERA IN and 360 CAMERA CONTROL）. 6. CarPlay and Android Auto 6.1 Wireless CarPlay / Android Auto 1) Disconnect or remove the Bluetooth connection between your phone and car. -
Page 9: Wired Carplay / Android Auto
3) Turn on “Bluetooth” as well. 4) Search the Bluetooth of the product. The Bluetooth name of the product shall be “Car Audio_XXXX”. 5) Pair the Bluetooth. 6) Allow the sync 7) Start to use CarPlay / Android Auto function. Wired CarPlay / Android Auto 1) Connect the Product to your phone by USB cable. -
Page 10: Air Play And Mirror Link
7. Air Play and Mirror Link 7.1 Wireless Air Play 1) Please disconnect the CarPlay connection if the CarPlay is working (turn off “WI-FI” switch). 2) Click “Mirroring” icon on the main interface as below figure 7.1, the hotspot name and password will be shown at the lower left corner of the mirroring interface as figure 7.2 shown. -
Page 11: Wireless Android Mirroring
4) Search and connect WI-FI named “CarPlay_XXXX” shown at the bottom left corner of the screen by your iPhone, and enter password: 88888888. (Only the first-time connection needs to enter password) 5) Open the shortcut menu bar of iPhone, select "screen mirroring" and turn it on, and then you can use Air Play function. - Page 12 Disconnect the CarPlay connection if the CarPlay is working as well. 3) Click “Mirroring” icon on the main interface as below figure 7.3. Figure 7.3: main interface of the screen Select and tick Android in figure 7.4 Figure 7.4: mirroring interface 5) Turn on the Bluetooth of the android phone, search the Bluetooth named as “Car Audio_XXXX”...
- Page 13 7) On the “Portable WLAN hotspot” interface, select “Configure WLAN hotspot” to enter hotspot configuration interface, set the name and password of "Personal Hotspot" to be consistent with the name and password shown on the above figure 7.2 "Mirroring" interface. 8) Tick “Show advanced options”...
-
Page 14: Contact Us
8. Contact Us Please contact us via purchase platform if you need any help. Tip: before contacting us, please help us to collect the following information. 1) the order ID 2) the car model 3) the year of the car 4) screen size of the car 5) the toggle switch setup 6) pictures about the LVDS cable connection... -
Page 15: Faq
9. FAQ Question 1: No sound during the call Solution: Disconnect the Bluetooth between your phone and your car. Question 2: Echo sound during the call Solution: Press setting-system-factory mode-echo cancellation-starts to debug from the bottom-right side- confirm after echo missing Question 3: Steering wheel control buttons Solution: For the steering wheel control buttons, the CarPlay interface decoder box support voice control button, Tel button, voice “+”...
