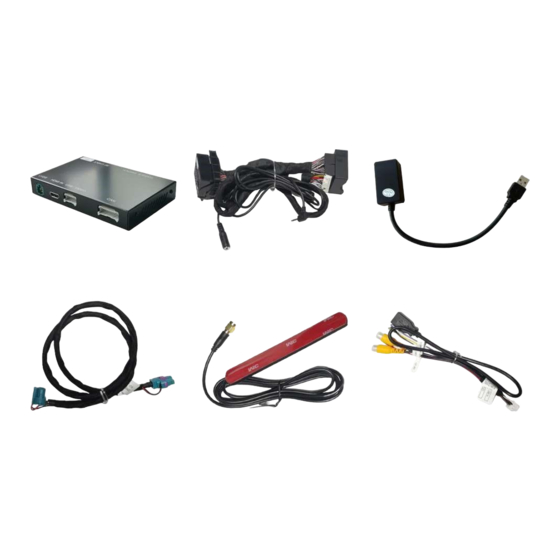

ATD Tools SPI-77202 User Manual

Evo id5/ld6
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPI-77202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATD Tools SPI-77202

Summary of Contents for ATD Tools SPI-77202

  • Page 2: Table Of Contents

    Contents Toggle Switch Setup .........................1 Choose the toggle switch setup by the size of your car’s screen ........1 1.1. Where to find the toggle (DIP) switches? ..............1 1.2. Set the toggle switch settings according to the size of your car’s screen .....2 1.3.

  • Page 3: Toggle Switch Setup

    1. Toggle Switch Setup 1.1 Choose the toggle switch setup by the size of your car’s screen 6.5 inch screen 8.8 & 10.2 inch screen 1.2 Where to find the toggle (DIP) switches? 1 / 16...

  • Page 4: Set The Toggle Switch Settings According To The Size Of Your Car's Screen

    1.3 Set the toggle switch settings according to the size of your car’s screen. If the screen has 10.25 inch but with resolution 1440*540, the toggle switch setting is as follow 2 / 16...

  • Page 5: Dashboard Removal

    2. Dashboard Removal Demo Please scan QR code, view the detail via YouTube video on dashboard removal guidance. Demo Tip: dashboard removal steps is different in different cars. We suggest to finish the dashboard removal and the installation by a professional. 3.

  • Page 6: Cable Connection Chart

    3.2 Cable connection chart Please follow the connection chart accurately (detailed instructions below). After the cables are all connected, you will be able to switch between the original BMW and the CarPlay interfaces by long pressing the “MENU” button on the iDrive knob. 4 / 16...

  • Page 7: Power Cable Connection

    3.3 Power cable connection Unplug the OEM original power cable from the head unit and reconnect it to the new cable harness. Then plug the new cable into the head unit. If your car has fiber optic cable, you will need to move the original fiber optic cable to the new harness.

  • Page 8: Lvds Cable Connection

    3.4 LVDS cable connection 1) The ORIGINAL LVDS cable goes from the HEAD UNIT “LVDS IN” of the CarPlay box. 2) The NEW LVDS cable goes to THE SCREEN from the “LVDS OUT” of the CarPlay box. Note: Connecting the LVDS cables incorrectly will result in a black screen! 6 / 16...

  • Page 9: Wifi Antenna And Usb-Av Cable Connection

    3.5 WiFi antenna and USB-AV cable connection Note: To avoid losing the WiFi signal, make sure the antenna is not placed close to metal objects. 7 / 16...

  • Page 10: Carplay Sound Setup

    The CarPlay interface decoder box should be installed in an appropriate space near, or on, the OEM head unit. Also can be put into the glove box. on the OEM head unit Beside the OEM head unit 4. CarPlay Decoder Sound Setup 4.1 Bluetooth settings If your phone already has a Bluetooth connection to your car, disconnect it.

  • Page 11: Set Usb

    USB audio cable will be connected to the car’s USB port in the center console box, so that the sound from the CarPlay function will work via the car’s USB function. 4.3 Set USB Before using the CarPlay system, you need to set the sound input on your OEM interface to “USB”, otherwise the CarPlay /Android Auto system don’t have sound! 4.3.1.
  • Page 12 4.3.2 Long press the “MENU” button from iDrive knob to enter into the CarPlay Decoder main interface. CarPlay Decoder main interface 10 / 16...

  • Page 13: Reverse And Front Cameras

    5. Reverse and Front Cameras 5.1 Original OEM camera Enter the “Setup” menu from the decoder main menu, choose “Reverse”, then make sure the “Reverse Camera” option is set to “Original”. Make sure that the following three options are all set to “off”. 5.2 Aftermarket camera Aftermarket rear view camera cable connection 11 / 16...

  • Page 14: Settings For Aftermarket Reverse Camera And Front Cameras

    Aftermarket front view camera cable connection 5.3 Settings for aftermarket reverse camera and front cameras After the aftermarket camera cables are connected, you need to check the camera settings (click the “Setup” button from the decoder main menu). “Reverse” camera settings: choose “Reverse”, from the menu and set the reverse camera to “Aftermarket”.

  • Page 15: Faq

    6. FAQ 1. Why is there no sound during the call? Solution: Disconnect the Bluetooth between your phone and your car. 2. There is an Echo during a phone call Solution: in the Audio setting, set the “Mic Echo PreConfig“ into “X3”, then restart the engine. 3.
  • Page 16 If the steering wheel control buttons are not working, activate the option “Enable Wheel Key”, in the “System” menu found in the “Settings” menu. 4. How do I activate Siri? There are two ways to activate the Siri function: 1) Use the Voice Control button on the steering wheel or 2) Long press the confirm button on the iDrive controller 14 / 16...

  • Page 17: Contact Us

    7. Contact Us Please contact us via purchase platform if you need any help. Tip: before contacting us, please help us to collect the following information. 1. the order ID 2. the car model 3. the year of the car 4.
