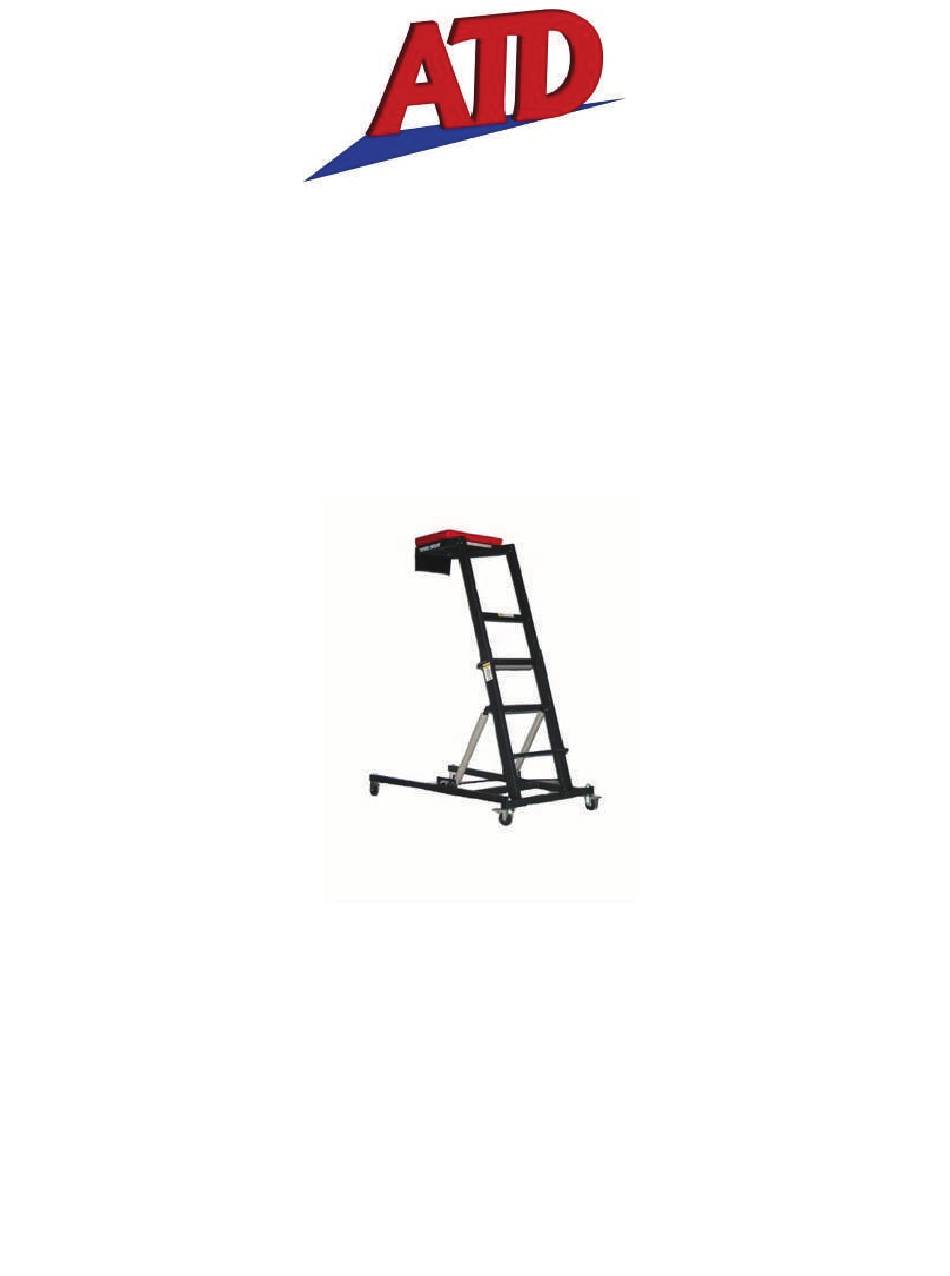

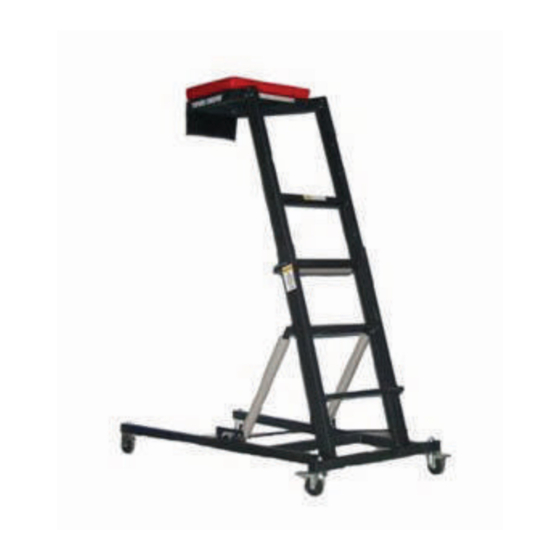

- Page 1 MANUAL Foldable Topside Creeper Model ATD-8116F Please read and understand all safety advisories and operating instruction in this manual to ensure safe and productive operation of your new Topside Creeper.
-
Page 2: Safety First
Safety First WARNING: Failure to follow these safety requirements could result in personal injury. This product is a tool to reach what are normally hard to reach places, such as the topside of an engine compartment for mechanics. Always inspect the product for damage before each use. Do not use if damage is detected. Make sure all nuts and bolts are secure before each use. - Page 3 Changing Working Height The working height of the T from 44” (110cm) to 68” (172cm) in height. To change the working height: 1. Lock casters (A2) by pressing the lock tab with your foot on each of the locking casters. 2.
-
Page 4: Parts And Hardware
Parts And Hardware J - Square Tube A1 - Front Caster x 2 (ATD-10238R) M1 - Right Leg A2 - Locking Caster x 2 (ATD-10237) M2 - Left Leg 18mm B - 18mm Flange Nut x 4 K - Base 19mm C - 19mm Lock Nut x 4 D - 8mm Lock Nut x 8... - Page 8 Rely only on high-grade automotive creepers offered on our virtual shelves.
