Summary of Contents for ATD Tools SPI-77300
-
Page 2: Table Of Contents
Contents Toggle Switch Setup ........................ 1 1.1. Choose the toggle switch setup according to the size of your car’s screen .....1 1.2. Where to find the toggle (DIP) switches? ..............3 1.3. Set the toggle switch settings according to the size of your car’s screen ......3 1.4. -
Page 3: Toggle Switch Setup
1. Toggle Switch Setup 1.1 Choose the toggle switch setup according to the size of your car’s screen Car Model 5.8 inch screen inch screen A-Class B-Class C-Class G-Class E-Class E-Coupe C-class W204 ML / GL 1/21... - Page 4 2/21...
-
Page 5: Where To Find The Toggle (Dip) Switches
1.2 Where to find the toggle (DIP) switches? 1.3 Set the toggle switch according to the size of your car’s screen. 1.4 Toggle switch setup incorrectly will result in a black screen, flash screen, half-screen, etc. 3/21... -
Page 6: Problem From Toggle Switch Setup Incorrectly
Please contact us for the correct toggle switch setup code if you meet problems as in the follow chart. Black screen when switch to CarPlay function Flash screen in OEM function Half-screen when switch to CarPlay function Half-screen when switch to CarPlay function Dashboard alarm 1.5 After the power cable connection, when change the toggle switch setup, you need to... -
Page 7: Steps For Change The Toggle Switch
Steps for change the toggle switch Step 1 : power off the engine Step 2 : change the toggle switch according the toggle switch dial setup chart Step 3 : unplug and reconnect the CAN power cable Step 4 : power on the engine 5/21... -
Page 8: Dashboard Removal
2. Dashboard Removal Please scan QR code, view the detail via YouTube video on dashboard removal guidance. A-Class CLA GLA B-Class C-Class 2011-2014 E-Class ML GL 6/21... -
Page 9: Kit Contents

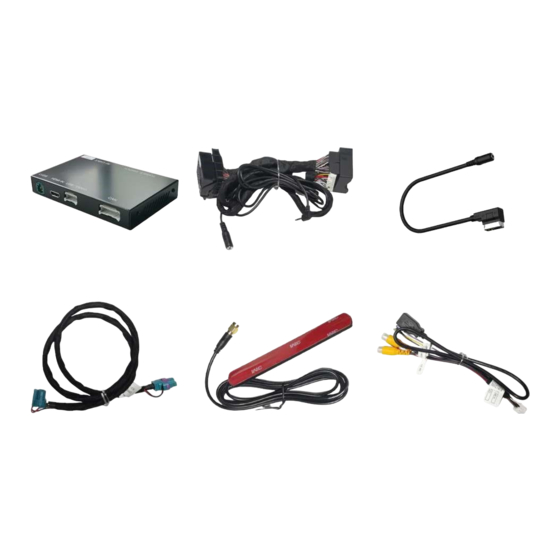

3. Kit Contents 3.1 Cables and accessories 7/21... -
Page 10: Cable Connection Chart
3.2 Cable connection chart Please follow the connection chart accurately (detailed instructions below). After the cables are all connected, you will be able to switch between the original Mercedes and the CarPlay interfaces by long pressing the “C” button on the knob controller. 8/21... -
Page 11: Power Cable Connection
3.3 Power cable connection 1.) Unplug the OEM original power cable from the head unit and reconnect it to the new cable harness. Then plug the new cable into the head unit. 2.) If your car has fibre optic cable, you need to move the original fibre optic cable from OEM power cable to the new power cable harness. -
Page 12: Lvds Cable Connection
3.3 LVDS cable connection 1 ) New LVDS cable 1 goes to the LVDS port of OEM the head unit. 2 ) New LVDS cable 2 goes to the original LVDS cable. Note: Connecting the LVDS cables incorrectly will result in a black screen! 3) where to find the “LVDS”... -
Page 13: Wifi Antenna And Usb-Av Cable Connection
3.5 WiFi antenna and USB-AV cable connection Note: To avoid losing the WiFi signal, make sure the antenna is not placed close to metal objects. 11 / 21... -
Page 14: Ami Audio Cable Connection
3.6 AMI Audio cable connection If your car has AMI port in the central console box, you need to connect the AMI cable to your car AMI port, so that the sound from the CarPlay function will work via the car’s AMI AUX function. 12 / 21... -
Page 15: Audio Gnd Cable Connection
3.7 Audio GND cable connection In the power cable harness, there is a wire with label “Audio GND”. There is no need to connect the “Audio GND” cable, unless the sound of the CarPlay is distorted or with noise. If you have problem about the sound of the CarPlay, like noise, distorted sound, etc., please connect the “Audio GND”... -
Page 16: Where To Put The Carplay Box
Where to put the CarPlay box? The CarPlay interface decoder box should be installed in an appropriate space near, or on, the OEM head unit. Or in the glove box. on the OEM head unit Beside the OEM head unit In the glove box In the glove box 14 / 21... -
Page 17: Carplay Sound Setup
4. CarPlay Decoder Sound Setup 4.1 Bluetooth settings If your phone already has a Bluetooth connection to your car, disconnect it. 4.2 AMI cable connection (only for cars with AMI port) Connect the decoder AMI audio cable to your car AMI port If your car has AMI port in the central console box 4.3 Set AUX Before using the CarPlay system, you need to set the sound input on your OEM interface to “AUX”, otherwise... - Page 18 CarPlay Decoder main interface 16 / 21...
-
Page 19: Reverse And Front Cameras
5. Reverse and Front Cameras 5.1 Original OEM camera Enter the “Setup” menu from the decoder main menu, choose “Reverse”, then make sure the “Reverse Camera” option is set to “Original”. Make sure that the following three options are all set to “off”. 5.2 Aftermarket camera Aftermarket rear view camera cable connection 17 / 21... -
Page 20: Settings For Aftermarket Reverse Camera And Front Cameras
Aftermarket front view camera cable connection 5.3 Settings for aftermarket reverse camera and front cameras After the aftermarket camera cables are connected, you need to check the camera settings (click the “Setup” button from the decoder main menu). “Reverse” camera settings: choose “Reverse”, from the menu and set the reverse camera to “Aftermarket”. the options “Reverse line detect”, the “Reverse display track”, and the “Reverse display radar”... -
Page 21: Faq
6. FAQ 1. Why is there no sound during the call? Solution: Disconnect the Bluetooth between your phone and your car. 2. Why is there no sound during CarPlay function? Solution: After finishing the “AUX” setting, if the CarPlay system don't has sound, you need to move the original fibre optic cable to CarPlay source power cable. - Page 22 5. How do I activate Siri? There are two ways to activate the Siri function: 1) Use the Voice Control button on the steering wheel or 2) Long press the confirm button on the knob controller 20 / 21...
-
Page 23: Contact Us
7. Contact Us Please contact us via purchase platform if you need any help. Tip: before contacting us, please help us to collect the following information. 1. the order ID 2. the car model 3. the year of the car 4.
