- Page 1 SPI-77700 User’s Manual Volvo...
-
Page 2: Table Of Contents
Contents Dashboard Removal ......................1 Toggle Switch Setup......................1 Cables Connection......................2 3.1 Product accessories....................2 3.2 Cable connection chart..................2 3.3 Power cable connection..................3 3.4 CarPlay box & Wi-Fi antenna installation..............4 3.5 Mic installation......................5 Sound Setup ........................5 Reverse Camera and 360 Camera..................6 CarPlay and Android Auto....................8 6.1 Wireless CarPlay / Android Auto................8 6.2 Wired CarPlay / Android Auto.................9 Air Play and Mirror Link......................9... -
Page 3: Dashboard Removal
1. Dashboard Removal Please scan below QR code, view the detail via YouTube video on dashboard removal guidance. 2. Toggle Switch Setup 2.1 Where is the toggle switch? Notice: TF card slot only used for the software upgrading. 2.2 Dial code setup Notice: if the car has original OEM camera, the status of code NO.1 shall be “on”. -
Page 4: Cables Connection

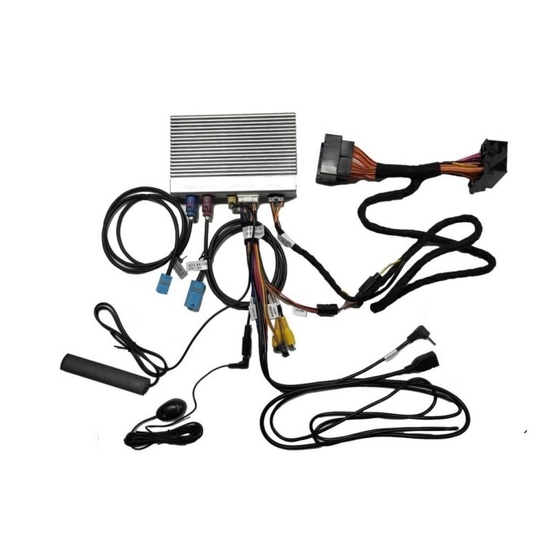

3. Cables Connection Product accessories 3.2 Cable Connection Chart 2 / 14... -
Page 5: Power Cable Connection
① LVDS IN cable: connect with original car CD host LVDS port and LVDS IN port of CarPlay decoder ② LVDS OUT cable: connect with original LVDS cable and LVDS out port of CarPlay decoder ③ WIFI antenna ④ External MIC ⑤... -
Page 6: Carplay Box & Wi-Fi Antenna Installation
CarPlay box & Wi-Fi antenna installation CarPlay box can be installed inside the Storage box in front of passenger, or come other suitable locations. The Wi-Fi antenna cannot be placed close to metal objects. (The signal will be very poor if Wi-Fi antenna is close to the metal objects.) 4 / 14... -
Page 7: Mic Installation
3.5 Mic installation Below is the example of Mic installation and cable laying, just take it as reference. After all the cables installation done, by long press “EXIT” button, you can switch the system between the original system and the CarPlay system. 4. -
Page 8: Reverse Camera And 360 Camera
Notice: Sound transmission need to connect “Aux out”. AUX setup Before using the CarPlay function, please set “AUX audio” as audio transmission method. 5. Reverse Camera and 360 Camera 1) Original camera setting If the car has original camera, code NO.1 of toggle switch need to be set as “on” status. 2) Aftermarket rear camera For the aftermarket rear camera, please follow below sketch map to connect the cable. - Page 9 3) Aftermarket 360 camera 360 camera needs to connect cable NO. 3 and NO. 9（REVERSE CAMERA IN and 360CAMERA CONTROL）. 7 / 14...
-
Page 10: Carplay And Android Auto
6. CarPlay and Android Auto 6.1 Wireless CarPlay / Android Auto Disconnect or remove the Bluetooth connection between your phone and car. Turn on your mobile Phone “Wi-Fi” switch. Turn on “Bluetooth” as well. Search the Bluetooth of the product. The Bluetooth name of the product shall be “Car Audio_XXXX”. -
Page 11: Wired Carplay / Android Auto
6.2 Wired CarPlay / Android Auto Connect the product to your phone by USB cable. Use wired CarPlay / Android Auto function. 7. Air Play and Mirror Link 7.1 Wireless Air Play Please disconnect the CarPlay connection if the CarPlay is working (turn off “WI-FI” switch). Click “Mirroring”... -
Page 12: Wireless Android Mirroring
Select and Click iPhone as shown in below figure 7.2. Figure 7.2: mirroring interface Search and connect WI-FI named “CarPlay_XXXX” shown at the bottom left corner of the screen by your iPhone, and enter password: 88888888. (Only the first-time connection needs to enter password) Open the shortcut... - Page 13 Figure 7.3: main interface of the screen Select and tick Android in figure 7.4 Figure 7.4: mirroring interface Turn on the Bluetooth of the android phone, search the Bluetooth named as “Car Audio_XXXX” and pair it. Go to the “Mobile network” setting of your phone, select “Tethering & personal hotspot” and press “Portable WLAN hotspot”.
- Page 14 On the “Portable WLAN hotspot” interface, select “Configure WLAN hotspot” to enter hotspot configuration interface, set the name and password of "Personal Hotspot" to be consistent with the name and password shown on the above figure 7.4 "Mirroring interface”. Tick “Show advanced options” and select "5.0 GHz Band" for the hotspot AP frequency band; turn on the "Personal Hotspot"...
-
Page 15: Contact Us
8. Contact Us Please contact us via purchase platform if you need any help. Tip: before contacting us, please help us to collect the following information. the order ID the car model the year of the car screen size of the car the toggle switch setup pictures about the LVDS cable connection the software version (in the CarPlay decoder menu, enter into the “Setting”, choose the... -
Page 16: Faq
9. FAQ Questions 1: No sound during the call Solution: Disconnect the Bluetooth between your phone and your car. Questions 2: Echo sound during the call Solution: Press setting-system-factory mode-echo cancellation-starts to debug from the bottom- right side- confirm after echo missing Questions 3: Steering wheel control buttons Solution: For the steering wheel control buttons, the CarPlay interface decoder box support voice control button, Tel button, voice “+”...
