- Page 1 User’s Manual SPI-77102 & SPI-77106...
-
Page 2: Table Of Contents
Contents Toggle Switch Setup ........................ 1 Choose the toggle switch setup ................1 1.1. Where to find the toggle (DIP) switches? ..............2 1.2. Set the toggle switch ....................2 1.3. Problem from Toggle switch setup incorrectly ............3 1.4. Dashboard Removal ........................ -
Page 3: Toggle Switch Setup
1. Toggle Switch Setup 1.1 Choose the toggle switch setup according to the year of the car and the MMI system of the car. Car year MMI picture system 2012-2016 MMI 3G+ 2016-2018 MIB 2 2012-2018 (A6 with 6.5” monitor) 1 / 20... -
Page 4: Where To Find The Toggle (Dip) Switches

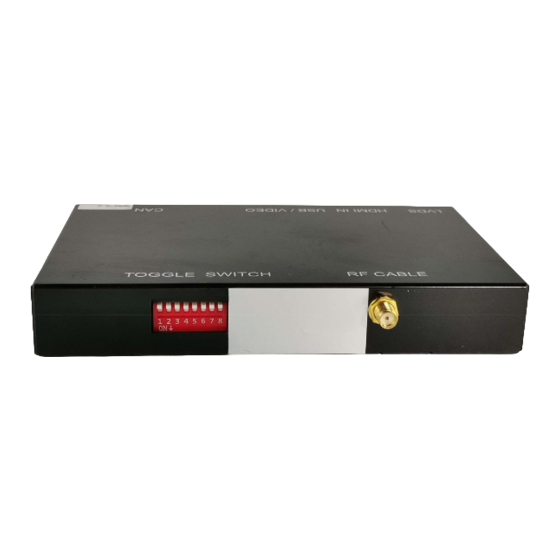

1.2 Where to find the toggle (DIP) switches? 1.3 Set the toggle switch according to the year of the car and the MMI system of the car. Tips: 1. Pin 7: with OEM parking sensor Off / 0, No OEM parking sensor On /1 2. Pin 8: with OEM Bluetooth ... -
Page 5: Problem From Toggle Switch Setup Incorrectly
1.4 Toggle switch setup incorrectly will result in a black screen, flash screen, half-screen, etc. Please contact us for the correct toggle switch setup code if you meet problems as in the follow chart. Black screen when switching to CarPlay function Flash screen in OEM function Half-screen when switching to CarPlay function Half-screen when switching to CarPlay function... -
Page 6: Dashboard Removal
2. Dashboard Removal Please scan QR code, view the detail via YouTube video on dashboard removal guidance. For A4 A5 Q5 Q7 4 / 20... -
Page 7: Kit Contents
3. Kit Contents 3.1 Cable connection chart Please follow the connection chart accurately (detailed instructions below). After the cables are all connected, you will be able to switch between the original Audi and the CarPlay interfaces by long pressing the “MEDIA” button on the MMI controller. 5 / 20... -
Page 8: Power Cable Connection
3.2 Head Unit power cable connection Unplug the OEM original power cable from the head unit and reconnect it to the new cable harness. Then plug the new cable into the head unit. 6 / 20... - Page 9 Power cable for Audi A6/A7/S6/S7 2012-2016 with MMI 3G+ system Power cable for Audi A6/A7/S6/S7 2016-2018 with MIB 2 system 7/20...
-
Page 10: A/C Controller Power Cable Connection
3.3 A/C controller power cable connection 8/20... -
Page 11: Lvds Cable Connection
3.4 LVDS cable connection Where to find the LVDS port? The LVDS port is different for different OEM head unit host. 9 / 20... - Page 12 LVDS cable connection 1 ) New LVDS cable 1 goes to the LVDS port of OEM the head unit. 2 ) New LVDS cable 2 goes to the original LVDS cable. Note: Connecting the LVDS cables incorrectly will result in a black screen! 10/20...
-
Page 13: Wifi Antenna And Usb-Av Cable Connection
3.5 WiFi antenna and USB-AV cable connection Note: To avoid losing the WiFi signal, make sure the antenna is not placed close to metal objects. 3.6 AMI audio cable connection (only for Audi cars with AMI function) If your car has AMI port, you need to connect the AMI cable to your car AMI port, so that the sound from the CarPlay function will work via the car’s AMI AUX function. - Page 14 Where to find the AMI port? in the glove-box in the glove-box in the central console box behind media interface doors AMI cable connection 12 / 20...
-
Page 15: Where To Put The Carplay Box
3.7 Where to put the CarPlay box? The CarPlay interface decoder box should be installed in an appropriate space near, or on, the OEM head unit. Or in the glove box. on the OEM head unit Beside the OEM head unit In the glove box In the glove box 4. - Page 16 On the original Audi System, navigate to the “Media“ interface, click the “External audio input” 14/20...
-
Page 17: Set Ami
4.3 Set AMI (only for Audi cars with AMI function) If your car has AMI port, after connect the AMI cable to your car AMI port, you need to set the “Media” into “AMI”. After finish the AUX or the AMI setting, long press “MEDIA” button from MMI knob controller, you can switch the system between the original Audi system and the CarPlay system. -
Page 18: Reverse And Front Cameras
CarPlay Decoder main interface 5. Reverse and Front Cameras 5.1 Original OEM camera Enter the “Setup” menu from the decoder main menu, choose “Reverse”, then make sure the “Reverse Camera” option is set to “Original”. Make sure that the following three options are all set to “off”. 16 / 20... -
Page 19: Aftermarket Camera
5.2 Aftermarket camera Aftermarket rear view camera cable connection Aftermarket front view camera cable connection 17 / 20... -
Page 20: Settings For Aftermarket Reverse Camera And Front Cameras
5.3 Settings for aftermarket reverse camera and front cameras After the aftermarket camera cables are connected, you need to check the camera settings (click the “Setup” button from the decoder main menu). “Reverse” camera settings: choose “Reverse”, from the menu and set the reverse camera to “Aftermarket”. -
Page 21: Faq
6. FAQ 1. Why is there no sound during the call? Solution: Disconnect the Bluetooth between your phone and your car. 2. Why is there no sound during CarPlay function? Solution: Check the car, if the car has AMI port, AMI cable needs to be connected to the original AMI port. -
Page 22: Contact Us
7. Contact Us Please contact us via purchase platform or the WhatsApp if you need any help. Tip: before contacting us, please help us to collect the following information. 1. the order ID 2. the car model 3. the year of the car 4.
