- Page 1 User’s Manual SPI-77105...
-
Page 2: Table Of Contents
Contents Toggle Switch Setup ........................ 1 1.1. Where to find the toggle (DIP) switches? ..............1 1.2. Set the toggle switch ....................1 1.3. Problem from Toggle switch setup incorrectly ............1 Dashboard Removal ........................ 2 Kit Contents ..........................3 3.1. -
Page 3: Toggle Switch Setup

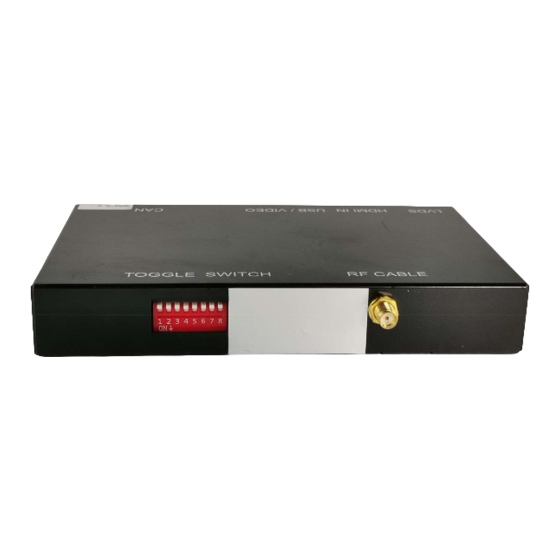

1. Toggle Switch Setup 1.1 Where to find the toggle (DIP) switches? Set the toggle switch Tips: 1. Pin 7: with OEM parking sensor Off / 0, No OEM parking sensor On /1 2. Pin 2. 8: with OEM Bluetooth Off / 0, No OEM Bluetooth On /1 The dial setup may cause the black screen if your car has 7”... -
Page 4: Dashboard Removal
Black screen when switch to CarPlay function Flash screen in OEM function Half-screen when switch to CarPlay function Half-screen when switch to CarPlay function 2. Dashboard Removal Please scan QR code, view the detail via YouTube video on dashboard removal guidance. Dashboard removal and cable connection Where to put the Carplay box 2/21... -
Page 5: Kit Contents
3. Kit Contents 3.1 Cable connection chart Please follow the connection chart accurately (detailed instructions below). After the cables are all connected, you will be able to switch between the original Audi and the CarPlay interfaces by long pressing the “MEDIA” button on the MMI controller. 3/21... -
Page 6: Power Cable Connection
3.2 Head Unit power cable connection Unplug the OEM original power cable from the head unit and reconnect it to the new cable harness. Then plug the new cable into the head unit. Note: In the power cable, don’t need to connect the grey cable to the green cable. -
Page 7: A/C Controller Power Cable Connection
3.3 A/C controller power cable connection 5 / 21... - Page 8 6 / 21...
-
Page 9: Headlight Range Control Module Installation
3.4 Headlight range control module cable connection 3.4.1 The headlight range control module is in the glover box. 3.4.2 Cable connection 7 / 21... -
Page 10: Lvds Cable Connection
3.5 LVDS cable connection 1 ) New LVDS cable 1 goes to the LVDS port of OEM the head unit. 2 ) New LVDS cable 2 goes to the original LVDS cable. Note: Connecting the LVDS cables incorrectly will result in a black screen! 8 / 21... -
Page 11: Wifi Antenna And Usb-Av Cable Connection
3.6 WiFi antenna and USB-AV cable connection Note: To avoid losing the WiFi signal, make sure the antenna is not placed close to metal objects. 9 / 21... -
Page 12: Fpc Adapter Board Installation
3.7 FPC adapter board installation Before install the FPC adapter board, you need to test the CarPlay function. Below are the correct steps for FPC adapter board installation. (Please do them step by step) Step 1: set the correct toggle switch. Step 2: install all the cable, including the head unit power cable, the A/C controller power cable, the headlight range control cable, the LVDS cable and the WiFi antenna. - Page 13 11 / 21...
-
Page 14: Ami Audio Cable Connection
3.8 AMI audio cable connection (only for Audi cars with AMI function) If your car has AMI port, you need to connect the AMI cable to your car AMI port, so that the sound from the CarPlay function will work via the car’s AMI AUX function. 12 / 21... - Page 15 Where to find the AMI port? in the glove-box in the glove-box in the central console box behind media interface doors AMI cable connection 13 / 21...
-
Page 16: Microphone Connection
3.9 Microphone connection Aftermarket mic should be installed close to the driver position. 14 / 20... -
Page 17: Where To Put The Carplay Box
3.10 Where to put the CarPlay box? The CarPlay interface decoder box should be in the glove box. Please scan QR code, view the detail via YouTube video on how to put the CarPlay module in the glove box. Where to put the Carplay box 15 / 21... -
Page 18: Carplay Sound Setup
4. CarPlay Decoder Sound Setup 4.4 Bluetooth settings If your phone already has a Bluetooth connection to your car, disconnect it. 4.2 Set AUX Before using the CarPlay system, you need to set the sound input on your OEM interface to “AUX”, otherwise the CarPlay /Android Auto system will have sound! On the original Audi System, navigate to the “Media“... - Page 19 After finish the AUX or the AMI setting, long press “MEDIA” button from MMI knob controller, you can switch the system between the original Audi system and the CarPlay system. 17 / 21...
-
Page 20: Reverse And Front Cameras
5. Reverse and Front Cameras 5.1 Original OEM camera Enter the “Setup” menu from the decoder main menu, choose “Reverse”, then make sure the “Reverse Camera” option is set to “Original”. Make sure that the following three options are all set to “off”. 5.2 Aftermarket camera Aftermarket rear view camera cable connection 18 / 21... -
Page 21: Settings For Aftermarket Reverse Camera And Front Cameras
Aftermarket front view camera cable connection 5.3 Settings for aftermarket reverse camera and front cameras After the aftermarket camera cables are connected, you need to check the camera settings (click the “Setup” button from the decoder main menu). “Reverse” camera settings: choose “Reverse”, from the menu and set the reverse camera to “Aftermarket”. -
Page 22: Faq
6. FAQ 1. Why is there no sound during the call? Solution: Disconnect the Bluetooth between your phone and your car. 2. Why is there no sound during CarPlay function? Solution: Check the car, if the car has AMI port, AMI cable needs to be connected to the original AMI port. -
Page 23: Contact Us
7. Contact Us Please contact us via purchase platform if you need any help. Tip: before contacting us, please help us to collect the following information. 1. the order ID 2. the car model 3. the year of the car 4.
