  • Page 1 User’s Manual SPI-77104...
  • Page 2: Table Of Contents

    Contents Toggle Switch Setup ........................ 1 1.1. Choose the toggle switch setup according to the model of the car ......1 1.2. Where to find the toggle (DIP) switches? ..............2 1.3. Set the toggle switch according to the model of the car ..........2 1.4.
  • Page 3: Toggle Switch Setup

    1. Toggle Switch Setup 1.1 Choose the toggle switch setup by the model of your car. Car interior Car Model 2010-2011 A6 / A7 /S6 / S7 2010-2015 Q7 1/18...
  • Page 4: Where To Find The Toggle (Dip) Switches

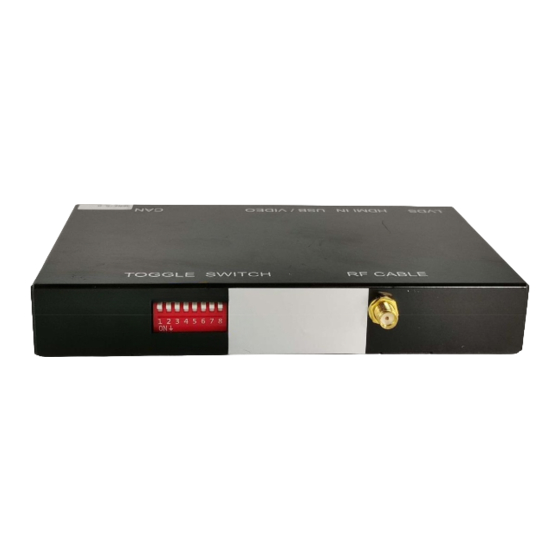

    1.2 Where to find the toggle (DIP) switches? Set the toggle switch according to the car model. Tips: 1. Pin 7: with OEM parking sensor  Off / 0, No OEM parking sensor  On /1 2. 2. Pin 8: with OEM Bluetooth  Off / 0, No OEM Bluetooth  On /1 2/18...
  • Page 5 Tips: 1. Pin 7: with OEM parking sensor  Off / 0, No OEM parking sensor  On /1 2. 2. Pin 8: with OEM Bluetooth  Off / 0, No OEM Bluetooth  On /1 Note: If your Audi car is with 3G MMI Low / Basic version (with BNav), the toggle switch setup is with 345  3/18...
  • Page 6: Problem From Toggle Switch Setup Incorrectly

    1.4 Toggle switch setup incorrectly will result in a black screen, flash screen, half-screen, etc. Please contact us for the correct toggle switch setup code if you meet problems as in the follow chart. Black screen when switch to CarPlay function Flash screen in OEM function Half-screen when switch to CarPlay function Half-screen when switch to CarPlay function...
  • Page 7: Kit Contents

    2. Kit Contents 2.1 Cable connection chart Please follow the connection chart accurately (detailed instructions below). After the cables are all connected, you will be able to switch between the original Audi and the CarPlay interfaces by long pressing the “NAV” or “MEDIA” button on the MMI controller. 5/18...
  • Page 8: Power Cable Connection

    2.2 Head Unit power cable connection Unplug the OEM original power cable from the head unit and reconnect it to the new cable harness. Then plug the new cable into the head unit. Note: In the power cable, don’t need to connect the grey cable to the green cable.
  • Page 9: A/C Controller Power Cable Connection

    2.3 A/C controller power cable connection 7/18...
  • Page 10: Lvds Cable Connection

    2.4 LVDS cable connection 1 ) New LVDS cable 1 goes to the LVDS port of OEM the head unit. 2 ) New LVDS cable 2 goes to the original LVDS cable. Note: Connecting the LVDS cables incorrectly will result in a black screen! Tip: The LVDS port is different for different OEM head unit host.
  • Page 11: Wifi Antenna And Usb-Av Cable Connection

    2.5 WiFi antenna and USB-AV cable connection Note: To avoid losing the WiFi signal, make sure the antenna is not placed close to metal objects. 9/18...
  • Page 12: Ami Audio Cable Connection

    2.6 AMI audio cable connection (only for Audi cars with AMI function) If your car has AMI port, you need to connect the AMI cable to your car AMI port, so that the sound from the CarPlay function will work via the car’s AMI AUX function. Where to find the AMI port? in the glove-box in the glove-box...
  • Page 13: Where To Put The Carplay Box

    2.7 Where to put the CarPlay box? The CarPlay interface decoder box should be installed in an appropriate space near, or on, the OEM head unit. Or in the glove box. on the OEM head unit Beside the OEM head unit In the glove box In the glove box 11 / 19...
  • Page 14: Carplay Sound Setup

    3. CarPlay Decoder Sound Setup 3.1 Bluetooth settings If your phone already has a Bluetooth connection to your car, disconnect it. 3.2 Set AUX Before using the CarPlay system, you need to set the sound input on your OEM interface to “AUX”, otherwise the CarPlay /Android Auto system will have sound! On the original Audi System, navigate to the “Media“...
  • Page 15: Set Ami

    3.3 Set AMI (only for Audi cars with AMI function) If your car has AMI port, after connect the AMI cable to your car AMI port, you need to set the “Media” into “AMI” After finish the AUX or the AMI setting, long press “NAV” or “MEDIA” button from MMI knob controller, you can switch the system between the original Audi system and the CarPlay system.
  • Page 16: Reverse And Front Cameras

    CarPlay Decoder main interface 4. Reverse and Front Cameras 4.1 Original OEM camera Enter the “Setup” menu from the decoder main menu, choose “Reverse”, then make sure the “Reverse Camera” option is set to “Original”. Make sure that the following three options are all set to “off”. 14 / 19...
  • Page 17: Aftermarket Camera

    4.2 Aftermarket camera Aftermarket rear view camera cable connection Aftermarket front view camera cable connection 4.3 Settings for aftermarket reverse camera and front cameras After the aftermarket camera cables are connected, you need to check the camera settings (click the “Setup”...
  • Page 18: Settings For Aftermarket Reverse Camera And Front Cameras

    “Reverse” camera settings: choose “Reverse”, from the menu and set the reverse camera to “Aftermarket”. the options “Reverse line detect”, the “Reverse display track”, and the “Reverse display radar” should all be set to “off”. Front view camera settings: choose “Reverse”, from the menu and set the front view time between 1 to 15 seconds 6.
  • Page 19: Contact Us

    7. Contact Us Please contact us via purchase platform or the WhatsApp if you need any help. Tip: Before contacting us, please help us to collect the following information. 1. the order ID 2. the car model 3. the year of the car 4.
  • Page 20 7. the software version (in the CarPlay decoder menu, enter into the “Setting”, choose the “System Version”, you will see the software version.) 18 / 19...
