Led Diagnostics And Terminal Identification - Altronix AL1012ULXB Installation Instructions Manual

Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Terminal Legend Function/Description
L, G, N Connect 115VAC / 60Hz to these terminals: L to hot, N to neutral, G to ground.
+ DC – 12VDC @ 10A continuous non power-limited output.
Used to notify loss of AC power, e.g. connect to audible device or alarm panel. Relay normally
AC FAIL
energized when AC power is present. Contact rating 1A @ 28VDC. AC or brownout fail is reported
NC, C, NO
within 1 minute of event.
Used to indicate low battery condition, e.g. connect to alarm panel. Relay normally energized when
BAT FAIL DC power is present. Contact rating 1A @ 28VDC. A removed battery is reported within
NC, C, NO 5 minutes. Battery reconnection is reported within 1 minute.
Low battery threshold: @ approximately 10.5VDC.
+ BAT – Stand-by battery connections. Maximum charge current 0.7A.

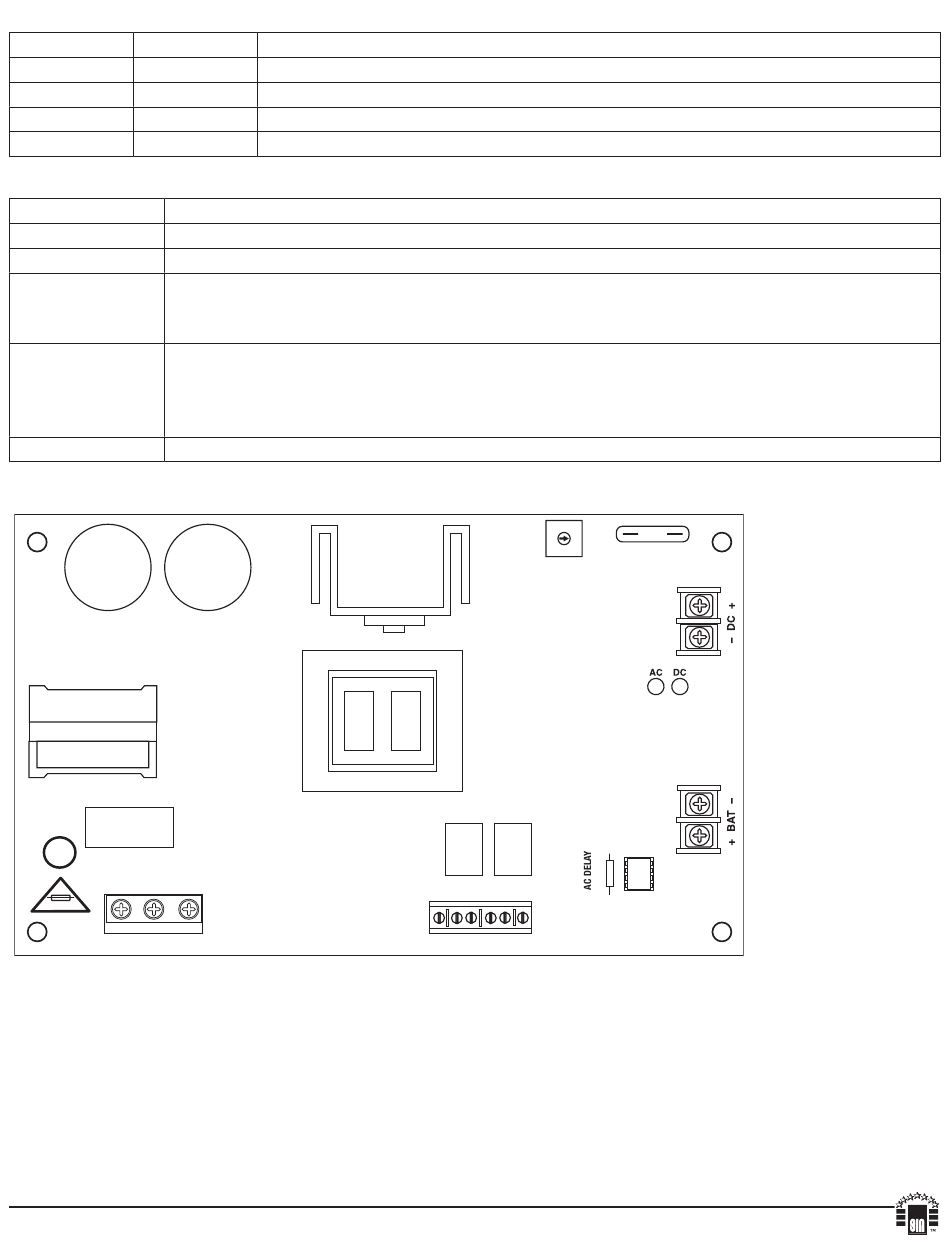

Fig. 1
5A 250V
L G N
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A.
IIAL1012ULXB Rev. 041411
LED Diagnostics:
Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery supplying power.
No DC output.
Loss of AC. Discharged or no stand-by battery. No DC output.
Terminal Identification:
BAT FAIL
NC C NO NC C NO
VR1
15
AC FAIL
E16P
MEMBER
