Visit us online at
www.uswatersystems.com

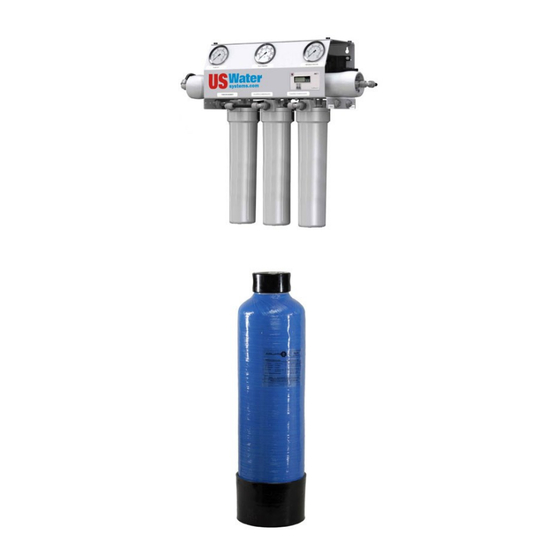

US Water Coffee Shop Reverse Osmosis
and Re-mineralization System
Owners Manual
Models:
225-CSRO-M
REVISION #
1.0
REVISION DATE February 12, 2018
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
info@uswatersystems.com
www.uswatersystems.com
1-800-608-8792
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for US Water Systems 225-CSRO-M
Summary of Contents for US Water Systems 225-CSRO-M

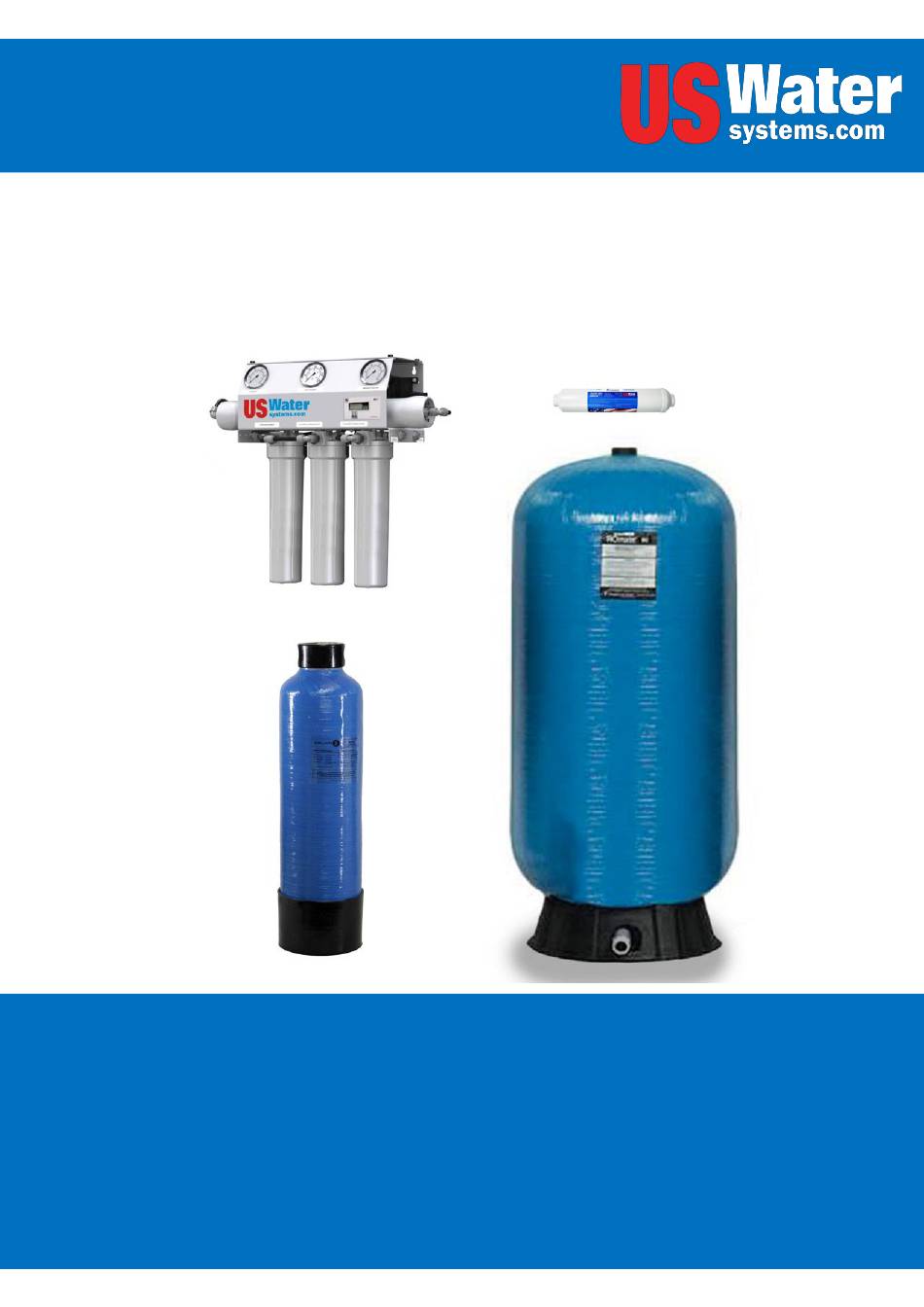

- Page 1 Visit us online at www.uswatersystems.com US Water Coffee Shop Reverse Osmosis and Re-mineralization System Owners Manual Models: 225-CSRO-M US Water Systems Corporate Office 1209 Country Club Road REVISION # Indianapolis, IN 46234 REVISION DATE February 12, 2018 info@uswatersystems.com www.uswatersystems.com 1-800-608-8792...
-
Page 2: Table Of Contents
Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 to report any ship- ping damage within 24 hours of delivery. Claims made after 24 hours may not be honored. -
Page 3: Proper Installation
Proper Installation This water treatment system must be properly installed and located in accordance with the Installation Instructions before it is used or the warranty will be void. Do not install or store where it will be 125 psi. If daytime pressure is over 80 psi, ... -
Page 4: System Overview
System Overview Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792... -
Page 5: Before Starting
Before Starting Installation Tools, Pipe, and Fittings, Other Materials Channel Locks Teflon tape Drill and Bits General Hand Tools Additional tools may be required if modification to the plumbing is required. NOTE: The system MUST be vertical to work properly. DO NOT use this system with the tank in the horizontal positon. -
Page 6: System Preparation
System Preparation Remove the carbon tank and tank head from the packaging. Remove the shipping cap from the carbon tank and install the tank head by placing the upper basket over the distributor tube and turning it clockwise until hand tight. BE SURE not to cross- thread the head in the tank. - Page 7 System Preparation Install the 1” x 1/2” reducing bushing in the “IN” port of the filter head. BE SURE to use Teflon tape on the threads. Make sure the fitting tightens in the head. If the fitting bottoms out, remove it and put more tape on the bushing. It should snug up before it bottoms in the port.
-
Page 8: System Installation
System Installation Mount the RO system on the wall using the proper wall fasteners. It is recommended that the system is mounted using wall studs. Sometimes a backing board is needed to secure the studs and the RO system. BE SURE to mount the system level. Install the fittings on the storage tank and quantum disinfection filter. -
Page 9: System Start-Up
System Startup Attached a temporary tube to the carbon filter “OUT” port and convey it to a drain. Slowly open the inlet water valve and allow the carbon tank to fill and rinse until the water runs clear. NOTE: A white plastic or Styrofoam cup can be used to check the water clarity. Once the water runs clear attach the carbon filter “OUT”... -
Page 10: Maintenance Schedule
Maintenance Schedule Component Task Related Part Numbers Carbon Filter Replace Carbon every 3-5 years 600-CENTAUR-C RO System Replace Pre and Post Filters eve- Sediment: 551-USWGS-2520-05 ry 6-12 months Carbon: 507-USWCB-2520-10 Re-mineralization: 507-USWF-2520-PH RO System Replace the RO membrane every Membrane: 255-USWEM-2521 3-5 years Storage... -
Page 11: Warranty
FIVE YEAR COVERAGE government regulations or other circumstances beyond the Storage Tank control of US WATER SYSTEMS, INC.. We warrant that for five (5) years from the date of : US WATER O OBTAIN WARRANTY SERVICE...
