AUMA SA 07.1 - SA 30.1 Operation Instructions Manual

Multi-turn actuators with actuator controls auma matic am 01.1; auma matic am 02.1
Hide thumbs
Table of Contents

Advertisement

Quick Links

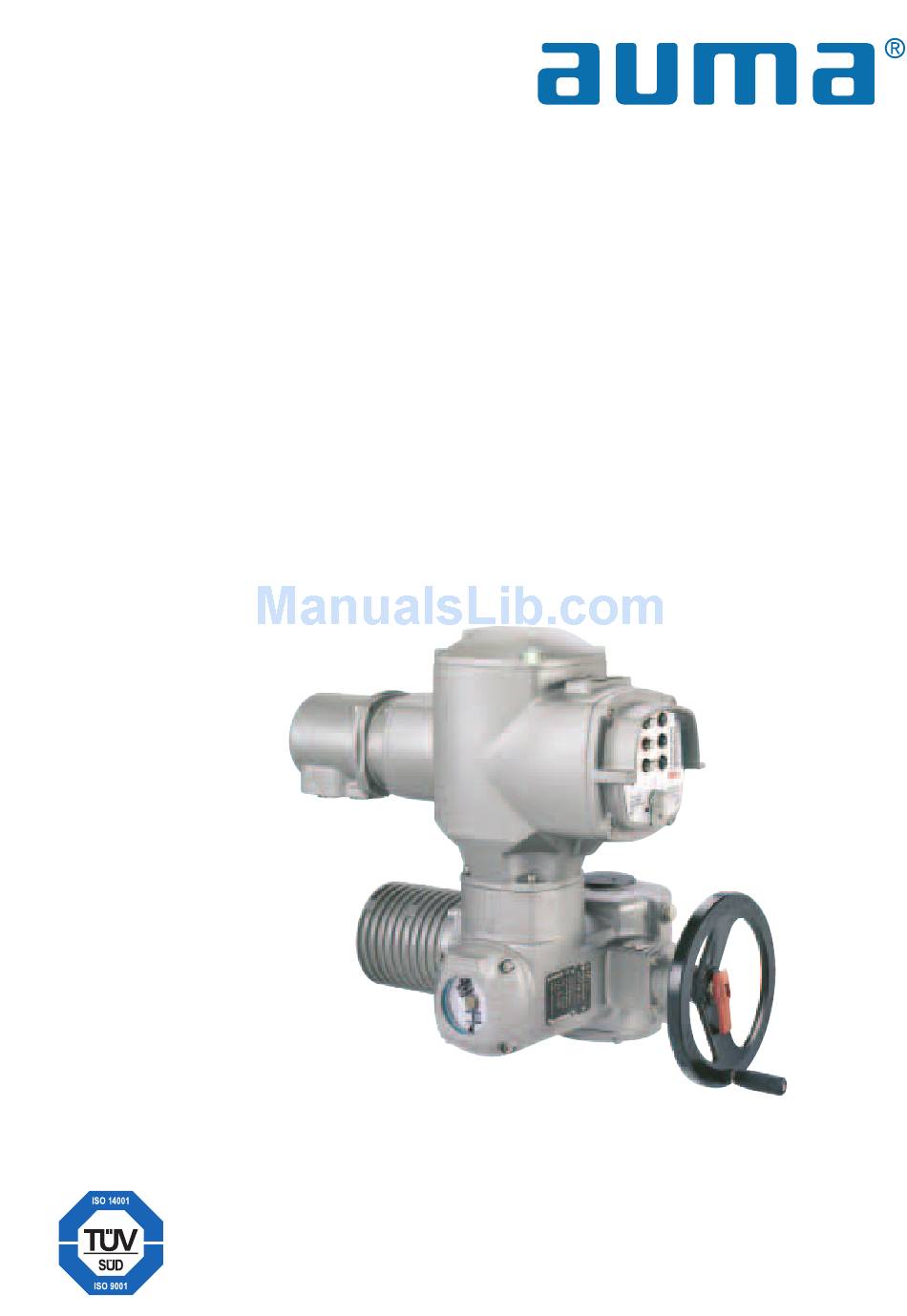

Electric multi-turn actuators
SA 07.1 – SA 30.1
SAR 07.1 – SAR 30.1
with actuator controls
AUMA MATIC AM 01.1/AM 02.1
Operation instructions
