Wall Mounted Enclosure Installation Reference

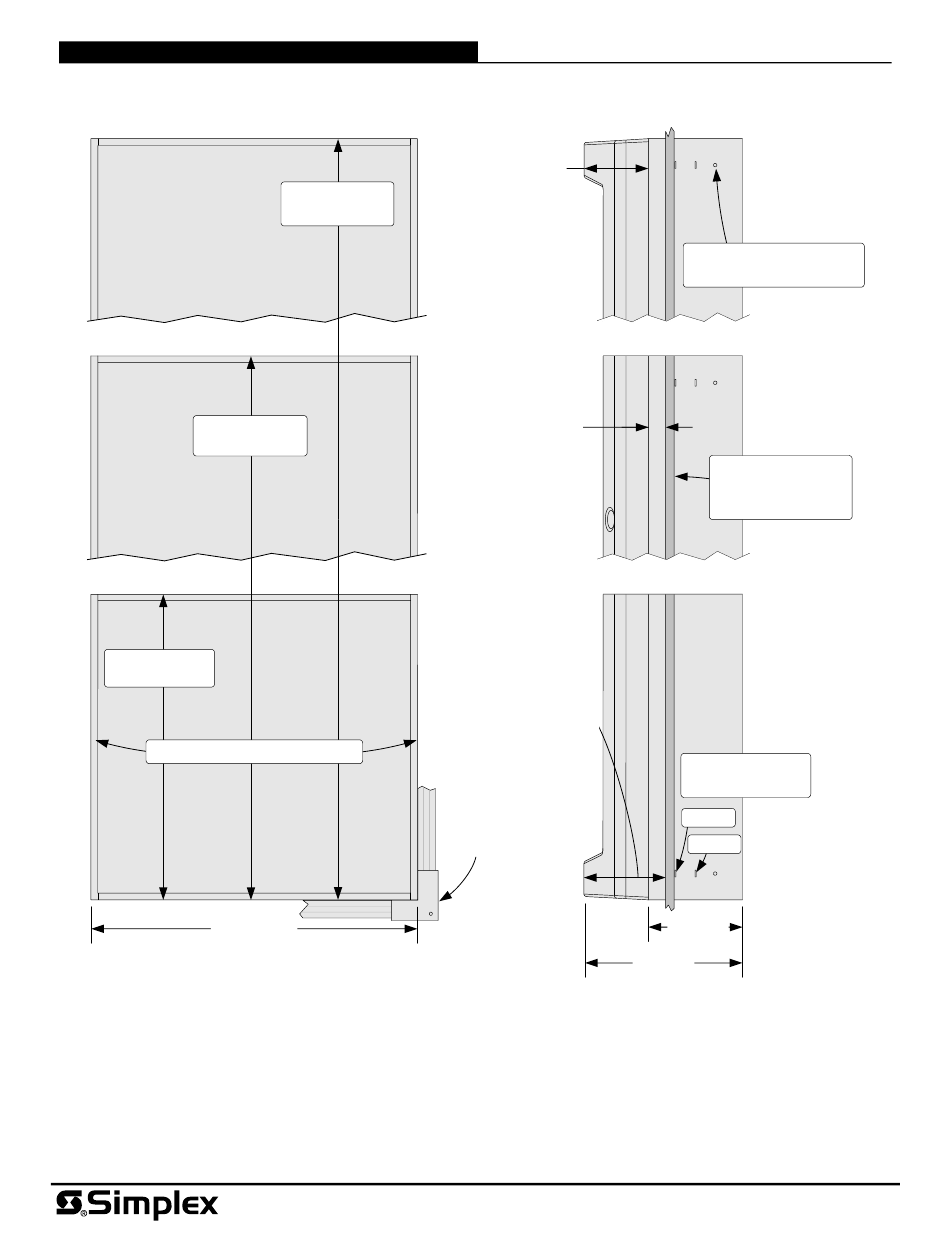

Front view, box outline without door
2 Bay height =
40" (1016 mm)
1 Bay height =
22" (559 mm)
Doors can be hinged left or right
24" (610 mm)
NOTE: A system ground must be provided for Earth Detection and transient protection devices. This connection
shall be made to an approved, dedicated Earth connection per NFPA 70, Article 250, and NFPA 780.
TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.
© 2018 Tyco Fire Protection Products. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
3 Bay height =
56" (1422 mm)
Exposed door and cabinet
6-1/8" (156 mm) minimum
Optional semi-flush
Tyco Fire Protection Products • Westminster, MA • 01441-0001 • USA
www.simplexgrinnell.com
Side view with door attached
Door thickness
4-3/4"(121 mm)
Exposed cabinet for
semi-flush mounting
1-3/8" (35 mm)
minimum
for semi-flush mounting
trim kit reference
Knockout screw/nail holes
(for semi-flush mounting)
Wall board reference
for semi-flush
mounting, 6" stud
Stud alignment
markers, each side
6" stud
4" stud
6-29/32"
(175 mm)
11-11/16"
(296 mm)
S4100-0038-14 5/2018
