The TS400 and TS410 are 6 zone microprocessor based intruder alarm panels. Before attempting
to operate the system, please ensure that you have read these instructions and discussed the
operation of the system with the installation engineer. If you experience problems with the alarm
system refer to the "Fault Finding" section on the back page.

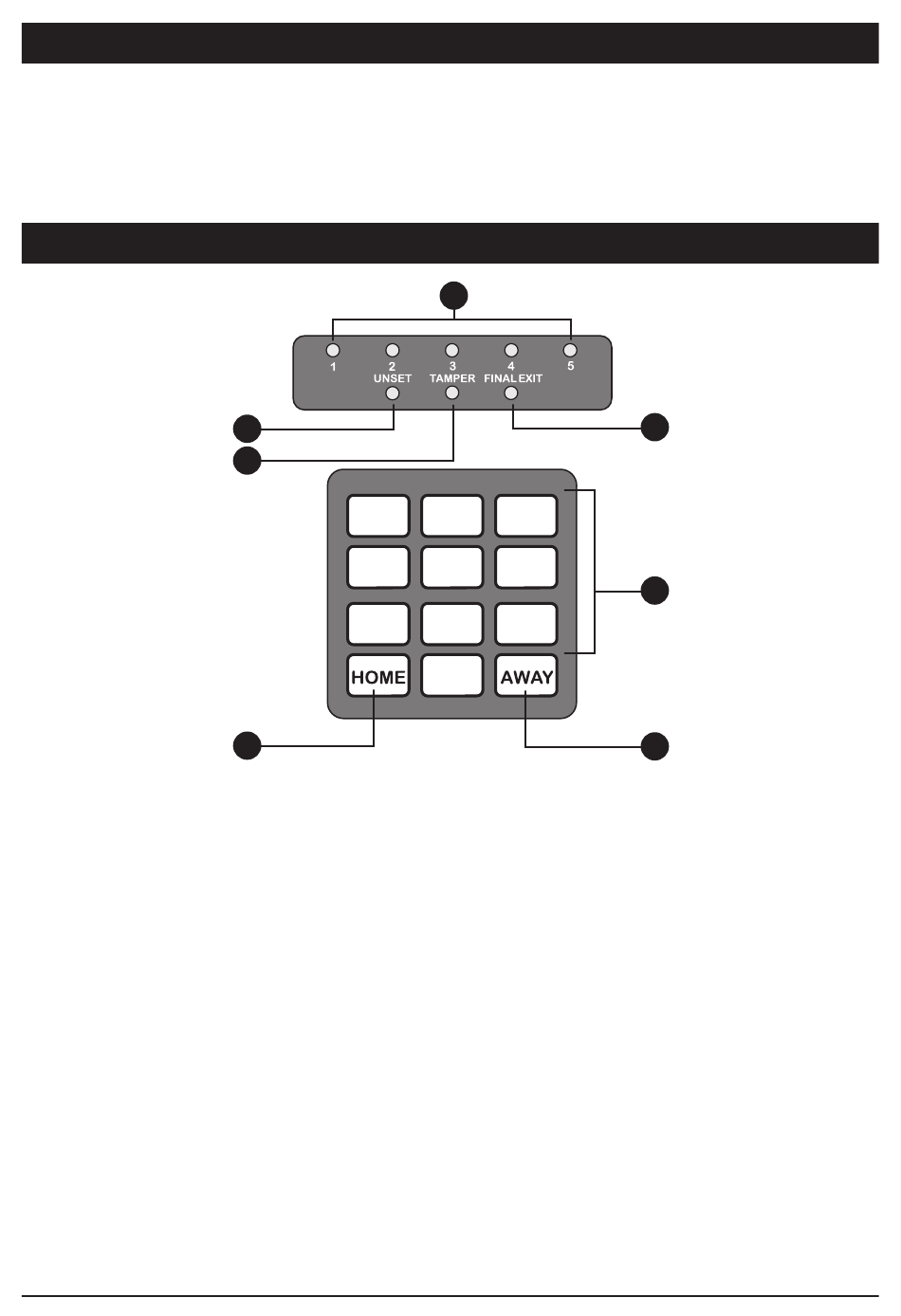

Figure 1 Operator Controls & Indicators
1 Zone Indicators
These red indicators are used to show the
status of zones 1 to 5.
2 Unset Indicator
This green indicator is used to indicate the
status of the system, set or unset. It also
flashes when the mains power to the
system is removed or when the master
user selects the user menu.
3 Tamper Indicator
This red indicator is used to indicate a
system tamper alarm, i.e. someone
removing the cover from a detector or
control panel. The tamper indicator will
also flash when the selecting "chime"
circuits.
2
Introduction
Operator Controls & Indicators
2
3
1
4
7
7
1
2
3
5
6
8 9
0
4 Final Exit Indicator
This red indicator is used to show the
status of the final exit zone. The final exit
zone is normally the front door or last
detector triggered when leaving the
building.
5 Keypad
10 digit keypad used for operating the
system.
6 Away Key
The away key is used when full setting the
system.
7 Home key
The home key is used when part setting
the system.
4
5
6
