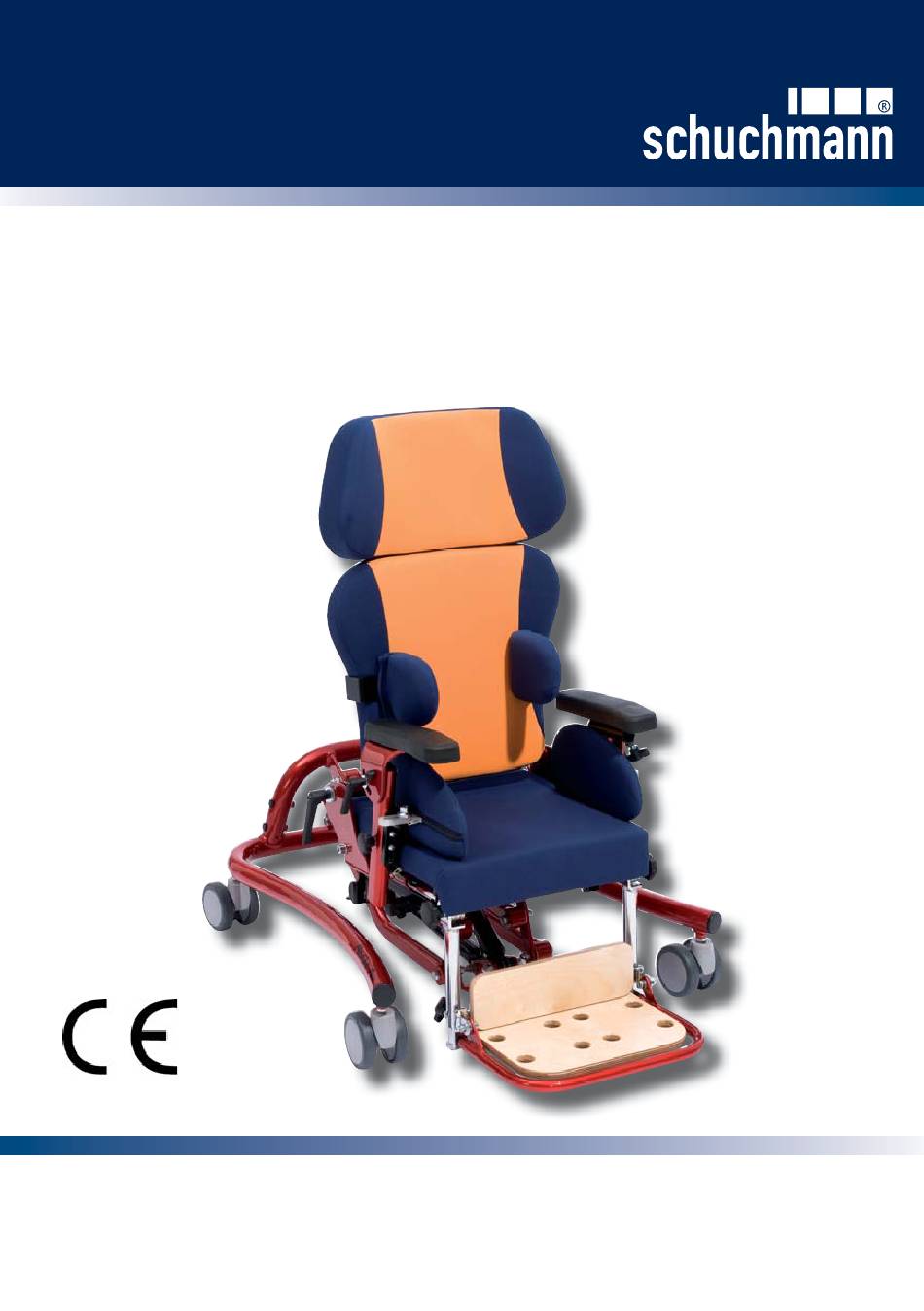

- Page 1 MADITA-FUN Posture Chair User Manual...
- Page 2 Please retain these instructions with the product, keeping them safely for future reference. We advise you to make a photocopy in case they become lost or ask us for a further copy. Yours faithfully, Schuchmann Team...
-
Page 3: Table Of Contents
4.1 Head Support 4.2 Side bolsters 4.3 Side bolster additional info 4.4 Hip bolsters (seat width) 4.5 Table 4.6 Knee abduction wedge 5. Cleaning and maintenance 6. Technical data 7. Guarantee details MADITA-FUN - Modifi cation status C - Issued 11.2010... -
Page 4: General Information
General Information / Overview General Information / Overview General information Th e Madita Fun Posture Chair is intended for use by children and young persons who are unable to sit or stand unaided. Attention: Th e product must not be used without supervision ... -
Page 5: Operation Of The Standard Product
Operation of the standard product Operation of the standard product 3.1 Locking the castors Th e Posture Chair is parked by locking the two rear castors. Foot operation of the brakes: Releasing the brakes: Warning: Th e brakes only operate correctly on even surfaces! 3.2 Seat height adjustment Seat height adjustment is assisted by a gas spring. -
Page 6: Seat Angle
Operation of the standard product Operation of the standard product 3.3 Seat angle adjustment In order to adjust the seat angle, the hand release lever should be pushed downwards. Th e seat unit can then be moved into the ‘ A ctive’ or ‘Passive’ position. Th e locking bracket should be hinged down to avoid the lever being unintentionally adjusted when in use. -
Page 7: Back Rest Height
Operation of the standard product Operation of the standard product 3.6 Back rest height To adjust the height of the back rest, the two locking wheels behind the back rest (see arrows) should be loosened. When the back rest is in the desired position, the locking wheels should be retightened. -
Page 8: Arm Rests
Operation of the standard product / Use of accessories Operation of the standard product / Use of accessories 3.9 Arm rests Arm rest height adjustment Th e two arm rests are adjusted by loosening the locking wheels (B) on the arm rests left and right. When in the required position, the locking wheels should be retightened. -
Page 9: Side Bolsters
Use of accessories Use of accessories 4.2 Side bolsters To adjust the width, loosen and remove the two nuts (see arrows) on the back of the back rest. Th e height is adjusted by loosening the nuts and bolts at the required height in the slotted holes (see arrows) in the backrest plate. -
Page 10: Table
Use of accessories Use of accessories 4.5 Use of table Table height Th is is adjusted by means of the arm rests. Depth adjustment To alter the distance of the table form the user, the winged locking nuts (see arrow) should be loosened. Retighten the wing nuts aft er adjustment. -
Page 11: Cleaning And Maintenance
Cleaning and maintenance / Technical Data / Guarantee Cleaning and maintenance / Technical Data / Guarantee Cleaning and maintenance Th e Posture Chair is designed to be relatively maintenance free. All parts are corrosion resistant. However under unfavourable conditions some slight rusting may occur. If this happens, it can be easily removed by simply wiping with polish and a soft cloth. - Page 12 Distributor: Serial number: schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen · Fon +49 (0)5405/909-0 · Fax +49 (0)5405/909-109 mail@schuchmann-reha.de · www.schuchmann-reha.de...
