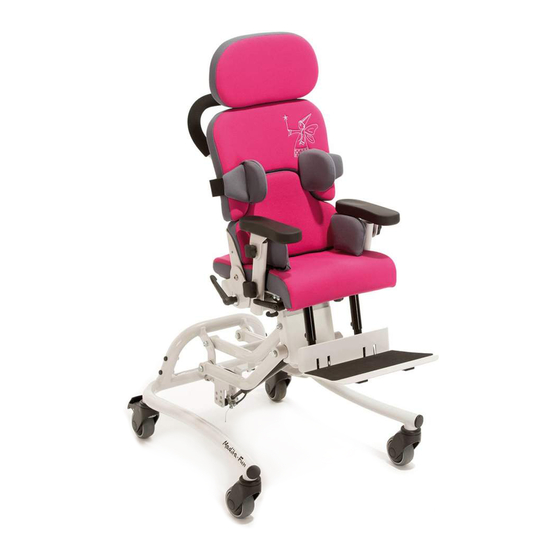

The mobile therapy chair that grows with the child
Hide thumbs Also See for MADITA-Fun:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
MADITA-Fun
the mobile therapy chair that grows with the child
Instructions for use

Advertisement

Table of Contents
loading

Related Manuals for Schuchmann MADITA-Fun

Summary of Contents for Schuchmann MADITA-Fun

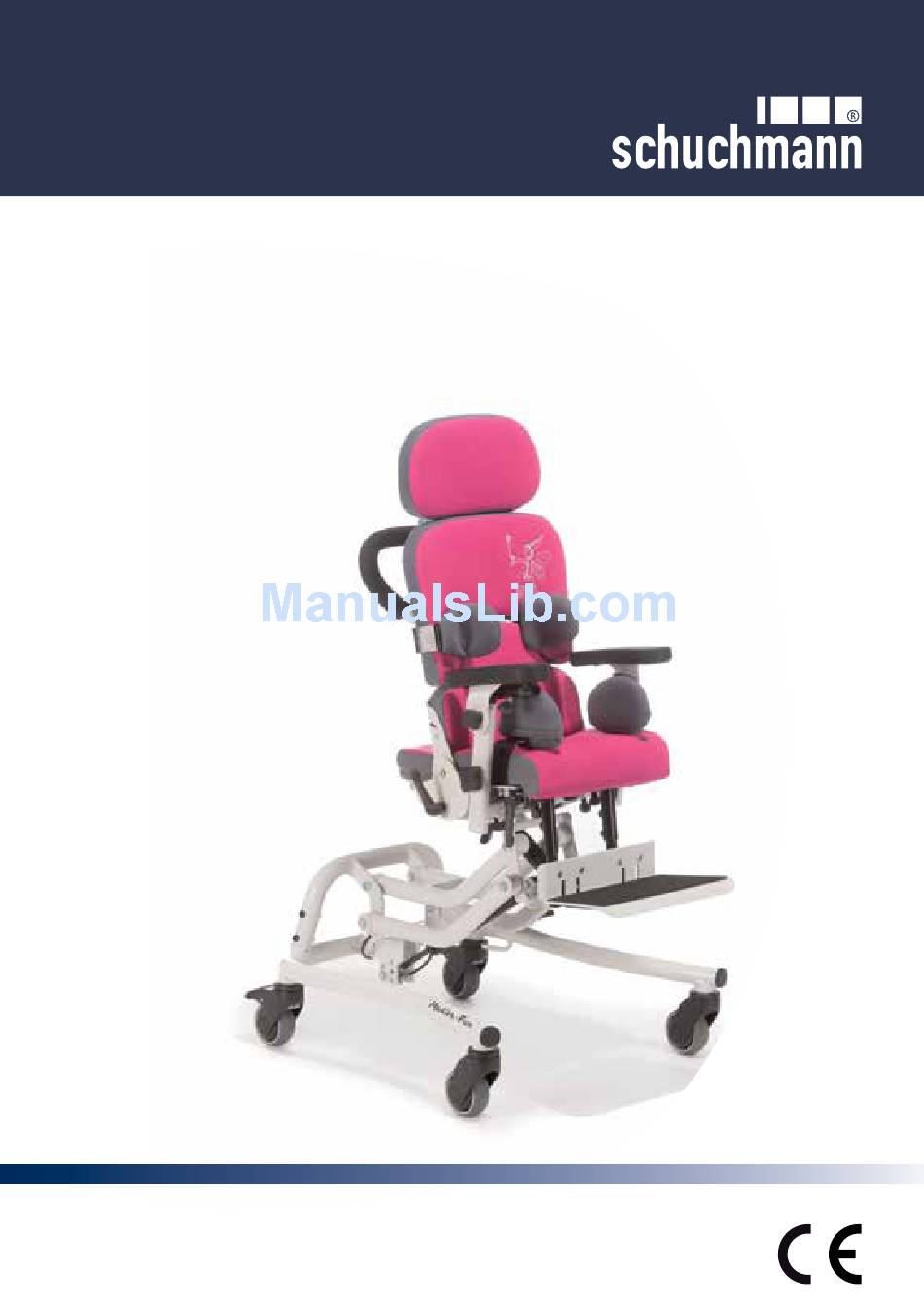

  • Page 1 MADITA-Fun the mobile therapy chair that grows with the child Instructions for use...
  • Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your Schuchmann Team...

  • Page 3: Table Of Contents

    Content Page 1.1 Delivery ............................4 1.2 Safety measures prior to use .......................4 1.3 Safe disposal ..........................4 1.4 Where to store the Instructions for use ..................4 2.1 Material information ........................5 2.2 Handling / transport ........................5 2.3 Application areas, use according to the intended purpose ............5 2.4 Use not in accordance with the intended purpose / warning guidelines ........6 2.5 Equipment for basic model ......................6 2.6 Equipment for basic model ......................7...

  • Page 4: Delivery

    1. Preparation of the therapy chair for use 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (deter- mination of the faults) to be made in the presence of the forwarder.

  • Page 5: Material Information

    MADITA-Fun is a versatile, grows with the child therapy chair for use at home, in kindergarten and at school, and is suitable for all ages from infancy to young peop- le.

  • Page 6: Use Not In Accordance With The Intended Purpose / Warning Guidelines

    2.4 Use not in accordance with the intended purpose / warning guidelines CAUTION! • Ensure that the therapy chair is only used by one child/teenager. • Only use the therapy chair on an even and solid surface. • Do not use the therapy chair to transport people. •...

  • Page 7: Equipment For Basic Model

    2.6 Equipment for basic model • Headrest • Knee abduction wedge • Removable back • Wheel base extension • Thorax pelotte pads (also foldable) • Strap assembly kit for the seat area • Thigh guides • Strap assembly kit for the back area •...

  • Page 8: Seat Height

    3. Settings Settings and adjustments to the product or accessories may only be made by peo- ple who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user‘s extremities are in the respective area when making adjustments of any kind to minimise the risk of injury.

  • Page 9: Seat Angle

    3.2 Seat angle In order to adjust the angle of the seat pan, the hand trigger (A) on the seat pan support is pulled upwards. The seat pan can now be adjusted through the application of pressure into an active or passive position.

  • Page 10: Back Height

    3.5 Back height Loosen the cylinder head screw (A) with the he- xagonal wrench (M8) at the rear and bring the back into the required height. 3.6 Armrests The armrests can be adjusted in angle, height and width. The angular adjustment takes place after loose- ning the star knob (B).

  • Page 11: Foot Bench / Footrests

    3.7 Foot bench / footrests Loosen the clamping lever (A) below the seat surface and bring the foot bench into the required position. Using the ratchet joint, the position can be adjusted in small steps. The footrests can be adjusted individually. To do this, loosen the clamping lever (B) under the seat surface and bring the footrests into the required position.

  • Page 12: Castors

    3.8 Castors The therapy chair should always be prevented from rolling away inadvertently through braking of the 2 rear castors. To do this, press the brake (A) down with the tip of your foot. The brake serves merely to prevent inadvertent rolling away on level surfaces.

  • Page 13: Accessories

    4. Accessories 4.1 Headrest The headrest can be adjusted in height, depth and angle. In order to do this, please loosen the 2 cylinder head screws (A) with a hexagonal wrench and bring the headrest into the required position. 4.2 Removable back The removable back can be operated on the back of the therapy chair.

  • Page 14: Thorax Pelotte Pads

    4.3 Thorax pelotte pads The thorax pelotte pads are individually adjustab- le in height and width. In order to do this, please loosen the 2 pan head screws (A) with a hexago- nal wrench and bring the thorax pelotte pad into the required position.

  • Page 15: Abducting Leg Guides

    4.6 Abducting leg guides The abducting leg guides permit the medically necessary abduction of the thighs and the com- pensation of a seat depth difference. In order to adjust guides, please loosen the nuts below the seat surface, and bring the leg guides into the re- quired position.

  • Page 16: Parking Brake

    4.8 Parking brake The parking brake can be operated by the user himself. If the lever is pressed down (A), the bra- ke is released. If the lever (A) is upward, the bra- ke engages. 4.9 Anti-tip mechanism The anti-tip mechanism is adjustable in height. To adjust the height, open the lever (B), position the anti-tip mechanism to the required height and close the lever once more.

  • Page 17: Cleaning

    Please also pay attention to our general cleaning and hygiene advice. You can find them at www.schuchmann-reha.com/MADITA-Fun 5.2 Repairs Please carry out a daily visual inspection and check the therapy chair regularly for cracks, breaks, missing parts and malfunctions.

  • Page 18: Technical Data

    6. Technical Data Dimensions - basic model MADITA- MADITA- MADITA- MADITA- Fun Size 0 Fun Size 1 Fun Size 1 b Fun Size 2 Seat depth 15 - 25 cm 21 - 30 cm 26 - 36 cm 30 - 42 cm Seat width 16 - 26 cm 20 - 30 cm...

  • Page 19: Identification

    Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classi- fied as product class 1 „MADITA-FUN“ - the modern, integrative therapy chair Art.-No.: 74 00 000 (Size 0) 74 01 100 (Size 1b)

  • Page 20: Serial Number / Date Of Manufacture

    · info@schuchmann-reha.de · Fon +49 (0) 5405 / 909 - 0 8.3 Product version The MADITA-FUN therapy chair is available in three sizes and can be supplemen- ted through a wide range of accessories (see Point 3). 8.4 Issue of the document Instructions for use MADITA-FUN - Change status D;...
