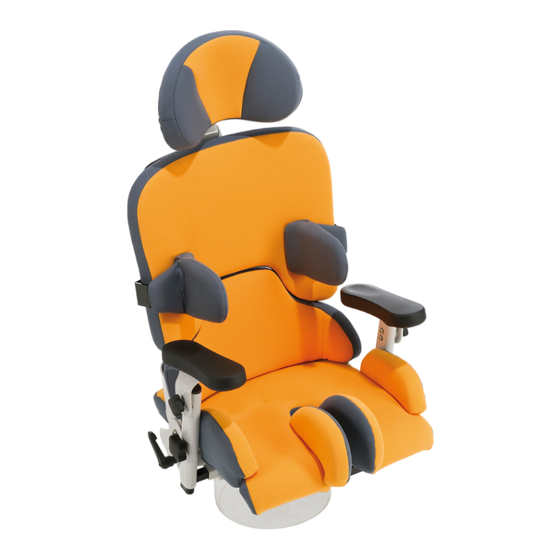

sofie. The versatile seat unit that grows with the child.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sofie. and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schuchmann sofie.

Summary of Contents for Schuchmann sofie.

  • Page 1 sofie. Instructions for use. sofie. The versatile seat unit that grows with the child.
  • Page 3 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...

  • Page 4: Table Of Contents

    Contents. 1. Preparation..................05 1.1 Delivery ........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal ......................05 1.3.1 Packaging ....................05 1.3.2 Product ....................05 1.4 Where to store the Instructions for use ............. 05 2. Product description................06 2.1 Material information ....................

  • Page 5: Preparation

    1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and any transport damage. Inspect the goods in the presence of your for- warder Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder.

  • Page 6: Product Description

    2. Product description. 2.1 Material information The base frame and the individual elements are made of steel which is non-corroding and powder-coated. All body supports (pelotte pads) are padded and covered. The covers are made of 100% polyester and are flame resistant (according to DIN EN 1021-1+2).

  • Page 7: Use Not In Accordance With The Intended Purpose / Warning Guidelines

    • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child. • Only use the seat unit if all components have been correctly mounted and adjusted.

  • Page 8: List Of Accessories

    2. Product description. 2.6 List of accessories • Headrest, padded • Knee abduction wedge, padded • Removable back • Strap assembly kit for the • Thorax pelotte pads (also foldable), seat area padded • Strap assembly kit for the • Thigh guide, padded back area •...

  • Page 9: Settings

    3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user‘s extremities are in the respective area when making adjustments of any kind to minimise the risk of injury.

  • Page 10: Armrests

    3. Settings. 3.4 Armrests The armrests can be adjusted in angle, height and width. The angular adjustment takes pla- ce after loosening the star knob (A). The height can be adjusted through loosening the star knob (B). The width adjustment takes place after loo- sening the two grub screws (C), which are located on the underside of the seat unit.

  • Page 11: Accessories

    4. Accessories. 4.1 Headrest The headrest can be adjusted in height, depth and angle. In order to do this, please loosen the 2 cylinder head screws (A) with a hexa- gonal wrench and bring the headrest into the required position. 4.2 Removable back The removable back can be operated on the back of the therapy chair.
  • Page 12 4. Accessories. 4.4 Foldable thorax pelotte pads The foldable thorax pelotte pads can be fol- ded to the sides to ease placement of the child. To do this, please press the red pushbutton (A) on the side of the thorax pelotte pad over the joint, and swivel the pelotte pad away to the side.

  • Page 13: Abducting Leg Guides

    4. Accessories. 4.6 Abducting leg guides The abducting leg guides permit the medi- cally necessary abduction of the thighs and the compensation of a seat depth differen- ce. In order to adjust the leg guides, please loosen the pan head screws with a hexagonal wrench (A) below the seat pad, and bring the leg guides into the required position.

  • Page 14: Therapietisch

    4. Accessories. 4.8 Therapietisch The therapy table can be adjusted in height and depth. Height adjustment takes place via adjustment of the arm- rests (see point 3.4). For adjustment of the depth, loosen the wing screw (A) and bring the therapy table into the required position.

  • Page 15: Foot Support

    4. Accessories. 4.10 Foot support (fixed-mounted onto the seat unit) sofie. For the an optional foot sup- port (A) is available. This has a non- slip surface (B) and has 8 slots (C) for fixing straps such as foot cuffs or foot fixing straps.
  • Page 16 4. Accessories. 4.11 Fußstützen sofie. Optionally, can also be equip- ped with footrests (A). These have a non-slip surface (B) and have 4 slots each (C) for fixing straps such as foot cuffs or foot fixing straps. For adjust- ment of the knee angle, please loosen the clamping lever (D) under the seat surface on both sides, bring the foot- rests into the required position and...

  • Page 17: Positioning Of The Footrests

    4. Accessories. 4.11.1 Positioning of the footrests For optimum positioning of the feet, the footrests can be adjusted indepen- dently of each other in width, angle and depth. Foot angle The foot angle (A) of the respective footrest can be adjusted from (-)15° to 5°.

  • Page 18: Fußstützen Mit Fußschalen

    4. Accessories. 4.12 Fußstützen mit Fußschalen Optionally, the footrests can also be equipped with foot pans (A). Here, as on the standard design, the knee angle can be adjusted, the foot pans folded up and the height adjusted (see point 3.8).

  • Page 19: Repairs And Cleaning

    5. Repairs and cleaning. 5.1 Cleaning All frame elements and surfaces can be cleaned with a sponge or moist clo- th using normal antibacterial detergents. The covers can be removed and washed at 30° in the washing machine. Please also pay attention to our www.schuch- general cleaning and hygiene advice.

  • Page 20: Technical Data

    6 . Technical data. Dimensions - basic model Size 0 Size 1 Size 1 b Size 2 Seat depth 15 - 25 cm 21 - 30 cm 26 - 36 cm 30 - 42 cm Seat width 16 - 26 cm 20 - 30 cm 20 - 30 cm 28 - 38 cm...

  • Page 21: Identification

    8. Identification. 8.1 EG-Konformitätserklärung Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below, classified in product class 1, sofie.

  • Page 22: Serial Number / Date Of Manufacture

    - Change status G; Issue 09.2018 8.5 Name and address of the manufacturer, specialist dealer supplying the product This product was manufactured by: Schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen Tel. +49 (0)5405/909-0 · Fax +49 (0)5405/909-109 info@schuchmann.de · www.schuchmann.de...
  • Page 23 sofie.
