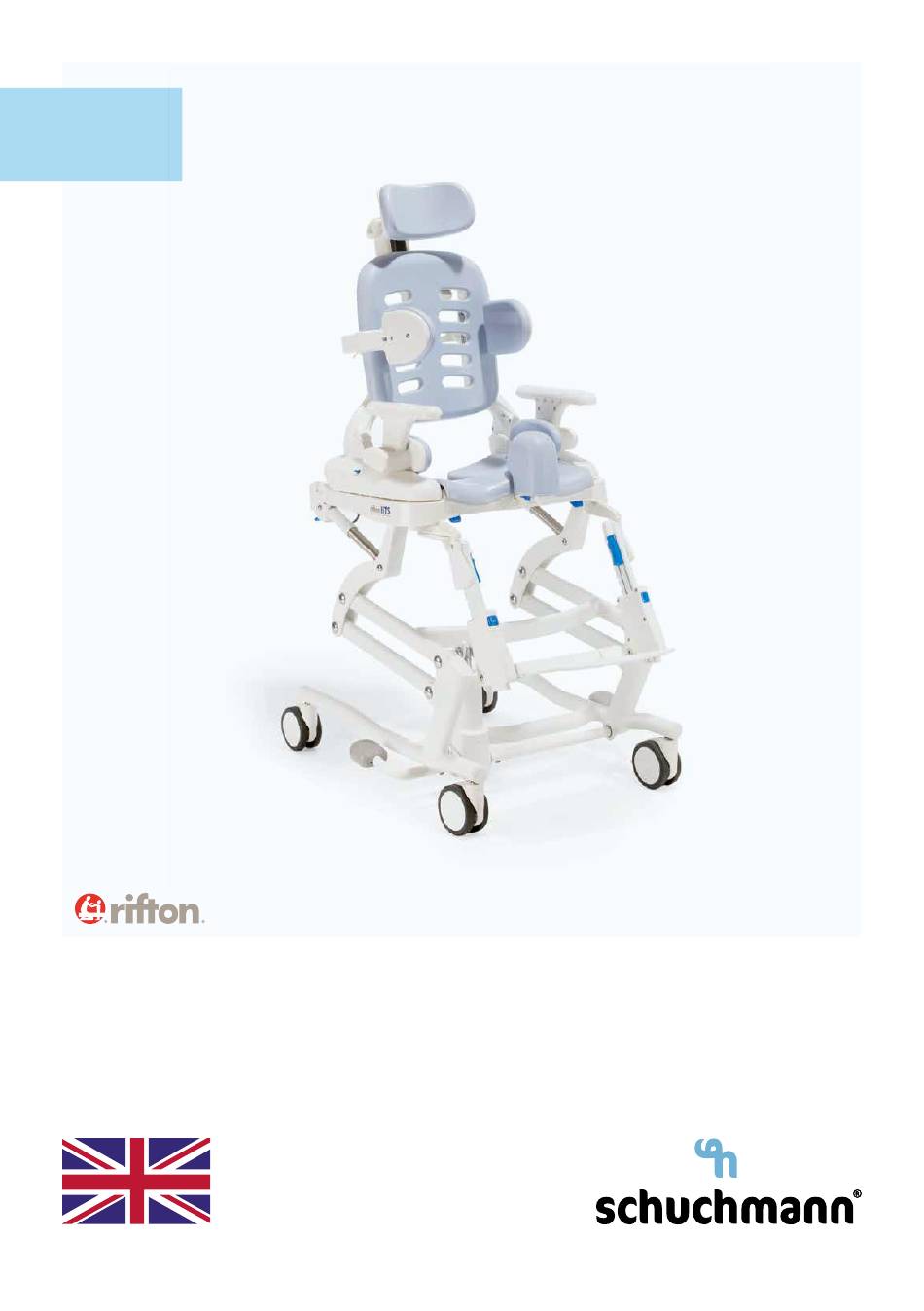

  • Page 1 hts. Instructions for use. hts. The universal hygiene system.
  • Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...

  • Page 3: Table Of Contents

    Contents. 1. Preparation................... 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description............... 06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indication when used as toilet seat .............
  • Page 4 Contents. 4.11 Foot cuffs ........................20 4.12 Table / arm support....................20 4.13 Attachment bar ......................21 4.14 Castors ..........................21 4.15 Abduction wedge ....................22 4.16 Deflector ........................22 4.17 Toilet bucket .......................22 4.18 Push handles......................23 5. Cleaning and servicing..............23 5.1 Cleaning and disinfecting ..................23 5.1.1 Cleaning .......................23 5.1.2 Disinfection ......................23 5.2 Servicing ........................24...

  • Page 5: Preparation

    1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de .

  • Page 6: Product Description

    2. Product description. 2.1 Material information All individual steel parts (nuts, bolts and screws etc.) are made of stainless steel. The pad parts are made from waterproof integral foam made from polyurethane and are flame-retardant (according to DIN EN 1021-1+2). The frame is made of aluminium and stainless steel and is powder-coated.

  • Page 7: Indication When Used As Toilet Seat

    2. Product description. 2.3.1 Indication when used as toilet seat The versatile hts. shower and toilet chair is a medical product of risk class 1 and is suited as toilet seat for users with significant difficulties in using standard toilets and child toilet seats due to: •...

  • Page 8: Equipment For Basic Model

    2. Product description. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Please ensure that none of the user's extremities are in the adjustable area when making settings or adjustments of any kind, especially with...

  • Page 9: Product Overview

    2. Product description. 2.7 Product overview The Fig. below is intended to show you the designation of the most important components as well as the terms which you will find in these Instructions for use. Back pad Thigh guide Armrests Seat pad Locking lever Draw catch...

  • Page 10: Back Angle Adjustment

    3. Settings. 3.1 Back angle adjustment The back angle can be adjusted 6 ° to the front (A), 6 ° to the back (B), and 18 ° to the back (C). To set the back angle, pull up both levers (D) on both sides of the back, bring it into the required position and leave go of the levers.

  • Page 11: Accessories

    4. Accessories. 4.1 Sub-frames Optionally, two mobile sub-frames, two ri- gid sub-frames, one bath sub-frame as well as a travel sub-frame are available. In order to attach the seat onto a sub-frame, place both hooks (A) on the back of the seat unit into the brackets (B) of the respective sub-frame.

  • Page 12: Mobile & Rigid Sub-Frame

    4. Accessories. 4.1.2 Mobile & rigid sub-frame Both the mobile and rigid sub-frames can be adjusted in height. In order to lower the seat, press both levers for the height adjustment (A) on the lengthways struts on the frame, whi- le supporting the weight of the seat.

  • Page 13: Travel Sub-Frame

    4. Accessories. 4.1.4 Travel sub-frame The travel sub-frame is a light, folding frame with a matching bag (A). The frame fits in the rear compartment on the bag (B). The seat, backrest, armrests and other accessories can be stores in the front compartment of the bag (C).

  • Page 14: Headrest

    4. Accessories. 4.3 Headrest In order to attach and set the head- rest, press the button for height ad- justment (A). Insert the headrest into the opening (B) provided and set the required height. Now let go of the button (A) and set the re- quired height until it audibly clicks into place.

  • Page 15: Pelvic Strap

    4. Accessories. 4.5 Pelvic strap Each hts. is equipped with a pelvic strap (A). In order to use the pelvic strap (A), insert the fixing clip (B) into the opening on the back of the side piece. Make sure that the pelvic strap (A) has clicked in well.

  • Page 16: Chest-Shoulder Strap

    4. Accessories. 4.7 Chest-shoulder strap The centre section on the pelvic strap (A) must be removed first to attach the chest-shoulder strap. For this, use the chest-shoulder strap (B) with the inte- grated pelvic strap. Tighten the pelvic strap and insert the shoulder straps into the brackets on the backrest.

  • Page 17: Thigh Guide

    4. Accessories. 4.8 Thigh guide The seat width can be adapted with the thigh guides, which can be atta- ched to the armrests. The seat width reduces by 5 cm in the first position and by 10 cm in the second position. Slide the thigh guides into the armrest so that the inlet (A) in the thigh guides point up and to the back.

  • Page 18: Assembly On The Toilet Seat

    4. Accessories. 4.9.1 Assembly on the toilet seat Observe the following guidelines when installing the foot support on the hts. seat unit. 1. Insert the little metal brackets (A) on the ends of the frame (B) into the recess (C) on the back of the seat unit.

  • Page 19: Foot Support Height Adjustment

    4. Accessories. 4.9.2 Foot support height adjust- ment In order to adjust the height of the foot support, press both buttons for height adjustment (A), set the foot support to the required height and allow the buttons to audibly click into the place in the required position.

  • Page 20: Foot Cuffs

    4. Accessories. 4.11 Foot cuffs To attach the foot cuffs (A) insert the loop of the strap through the horizon- tal opening (B) at the rear of the foot support. Turn the strap and push it into the vertical opening (C). Tighten it.

  • Page 21: Attachment Bar

    4. Accessories. 4.13 Attachment bar There are two types of attachment bar for attachment on round standard toilets or on longer toilets. The attachment bar is fixed in place with the retainer screws used to attach the toilet lid and seat. They provide a secu- re fixing point for the seat and back units.

  • Page 22: Abduction Wedge

    4. Accessories. 4.15 Abduction wedge The padded abduction wedge is attached to the front edge of the toilet seat. Remo- ve the cover cap (A), before inserting the abduction wedge. Remove the abduction wedge by pressing the blue lever (B) and pul- ling the abduction wedge away to the front at the same time.

  • Page 23: Push Handles

    Please also pay atten- Polyurethane/ tion to our general cleaning and hygiene advice. Polyuréthane This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth.

  • Page 24: Servicing

    5. Cleaning and servicing. 5.2 Servicing Please carry out a visual inspection on a daily basis and regularly check the product for cracks, breaks, missing parts and malfunctions. In case of a defect or malfunction, please contact the specialist dealer who supplied you with the product (see Point 8.5).

  • Page 25: Maintenance Plan

    5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product.

  • Page 26: Technical Data

    5. Cleaning and servicing. The product is suited for re-use. Prior to forwarding, please follow the clea- ning and disinfection instructions stated in Point 5.1. Accompanying docu- ments such as these Instructions for use are part of the product and must be passed on to the new user.
  • Page 27 6. Technical data. Dimensions Size 1 Size 2 Size 3 Mobile sub-frames 53 cm 53 cm 57 cm Stationary sub-frames 51 cm 51 cm 53 cm Width Transfer and 67 cm 67 cm 71 cm care sub-frame Mobile sub-frames 39 - 55 cm 39 - 55 cm 44 - 58 cm Seat...

  • Page 28: Guarantee

    7. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion.

  • Page 29: Identification

    EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1...

  • Page 30: Serial Number / Date Of Manufacture

    Date of manufacture Barcode UDI-DI Barcode UDI-PI schuchmann.de • info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The hts. is available in three sizes and can be supplemented through a diverse range of accessories (see Point 4).
  • Page 31 Notes.
  • Page 32 schuchmann.de...
