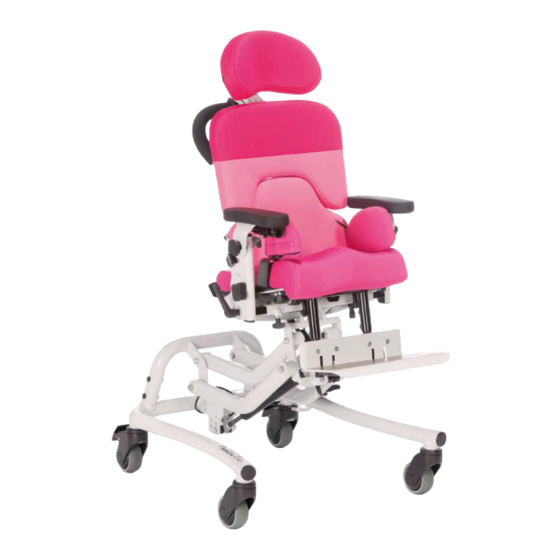

Schuchmann madita-fun Instructions For Use Manual
The modern, integrative therapy chair
Hide thumbs
Also See for madita-fun:
- Instructions for use manual (32 pages) ,
- User manual (12 pages) ,
- Assembly instructions (5 pages)
Related Manuals for Schuchmann madita-fun
Summary of Contents for Schuchmann madita-fun

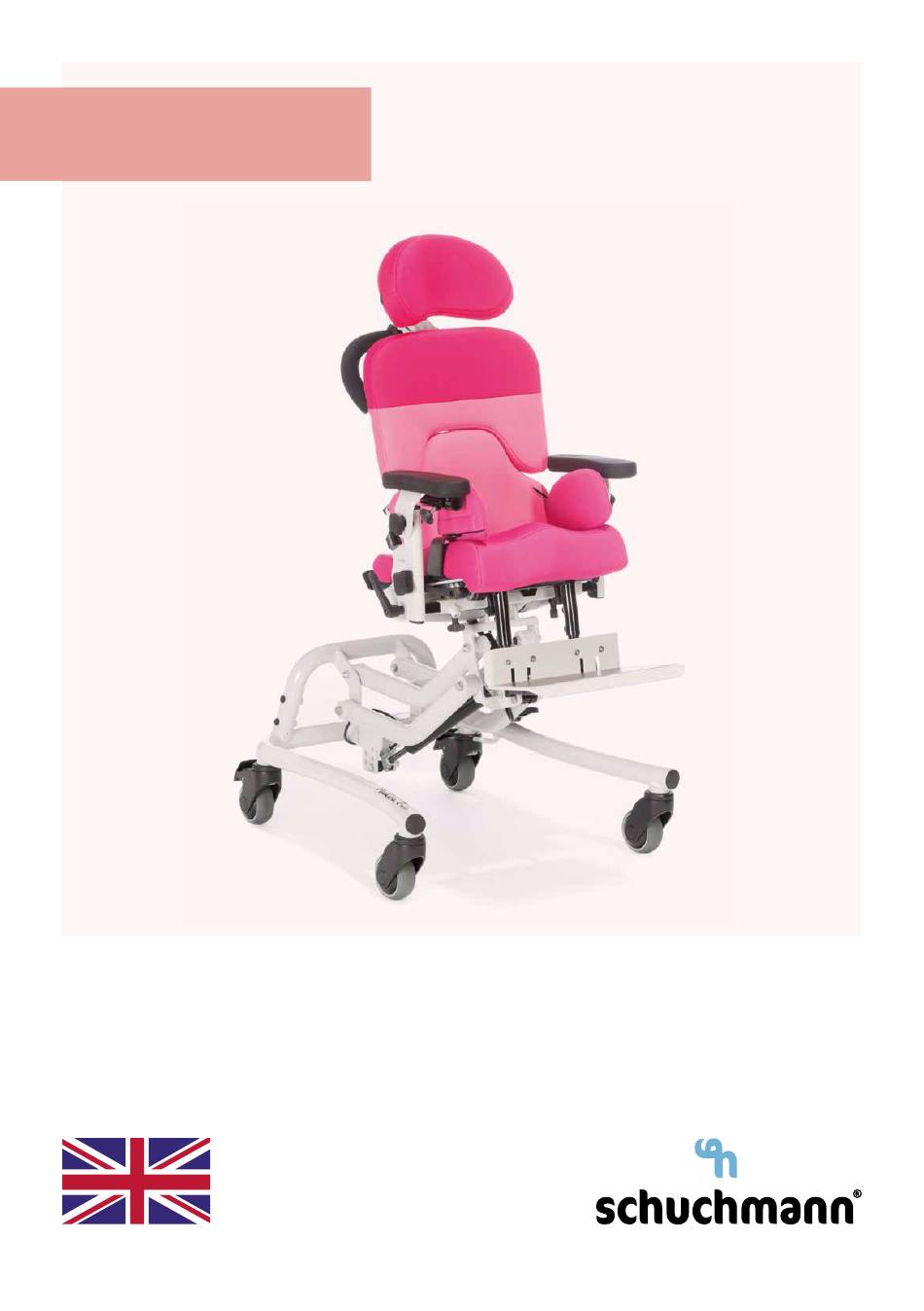

- Page 1 Instructions for use. madita-fun. The modern, integrative therapy chair.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06... - Page 4 Contents. 5. Cleaning and servicing..............20 5.1 Cleaning and disinfecting ..................20 5.1.1 Cleaning ......................20 5.1.2 Disinfection ......................21 5.2 Servicing ........................21 5.3 Maintenance ....................... 21 5.3.1 Maintenance specifications ..............21 5.3.2 Maintenance plan ..................22 5.4 Spare parts ......................... 23 5.5 Duration of use and re-use .................
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Instructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de . -
Page 6: Product Description
2.3 Application areas, use according to the intended purpose The madita-fun. therapy chair is a medical product of risk class 1 and designed for use at home, in nurseries and at school. It can be used for all ages from early childhood to teenage years. Individually adjustable seat dimensions and supporting pelotte pads allow a stable and upright sitting position. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Gui
• Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. • Only use the therapy chair if all components have been correctly mounted and adjusted. -
Page 8: List Of Accessories
2. Product description. 2.6 List of accessories • Headrest • Removable back • Thorax pelotte pads (also foldable) • Thigh guide • Adjustable pelvic guide • Therapy table • Knee abduction wedge • Conversion kit for combination sub-frame • Central parking brake •... -
Page 9: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 10: Seat Angle
3. Settings. Electrical height adjustment is also possib- le. This is operated with the existing remote operation (A). Press the arrow key downwards in order to adjust the seat height downwards and upwards in order to adjust the seat height upwards. In case of problems with the control unit, please contact a specialist dealer so that the product can be returned to the factory if required. -
Page 11: Back Height
3. Settings. 3.5 Back height Loosen the cylinder head screw (A) with the hexagonal wrench (M8) at the rear and bring the back into the requi- red height. 3.6 Armrests The armrests can be adjusted in angle, height and width. The angle is adjus- ted after loosening the star knob (B). -
Page 12: Foot Support
3. Settings. 3.7 Foot support The basic model of the madita-fun. already includes a foot support (A). This has a non-slip surface (B) and has 8 slots (C) for fixing straps such as foot cuffs or foot fixing straps. In order to... -
Page 13: Footrests
3. Settings. 3.8 Footrests Optionally, madita-fun. can also be equipped with footrests (A). These have a non-slip surface (B) and have 4 slots each (C) for fixing straps such as foot cuffs or foot fixing straps. For adjustment of the knee angle, please... -
Page 14: Positioning Of The Footrests
3. Settings. 3.8.1 Positioning of the footrests For optimum positioning of the feet, the footrests can be adjusted inde- pendently of each other in width, angle and depth. In order to adjust the width (C), please loosen the pan head screws (D) under the footrests, bring the footrest into the required position and retighten the pan head screws (D). -
Page 15: Footrests With Foot Pans
3. Settings. 3. Settings. 3.9 Footrests with foot pans Optionally, the footrests can also be equipped with foot pans (A). Here, as on the standard design, the knee ang- le can be adjusted, the foot pans fol- ded up and the height adjusted (see Point 3.8). -
Page 16: Accessories
Support the head of the user with one hand when you make an adjustment to the headrest during use! 4.2 Conversion kit for combination sub-frame When converting madita-fun. to a combination sub-frame, the plastic castors are replaced with 6“ pneu- matic wheels with steering forks and 12 ½“... -
Page 17: Removable Back
4. Accessories. 17 17 4.3 Removable back The removable back can be operated on the back of the therapy chair. Loosen the twist grip (A), press the locking lever (B) together and then remove the back. The function of the removable back can be integrated into the therapy plan and also used for short periods of time, as the back, including the headrest, is quickly plugged in... -
Page 18: Thigh Guide
4. Accessories. 4.6 Thigh guide thigh guide pads individu- ally adjustable height depth. In order to adjust the depth, loosen the nuts (A) under the seat area and bring the thigh gui- de pad into the required position. The depth adjustment is possible on any thigh guide except on the standard version for Size 0 with adjustable pelvic guide. -
Page 19: Adjustable Pelvic Guide
4. Accessories. 4.8 Adjustable pelvic guide The adjustable pelvic guide can be adjusted in width, provides the user with a high level of security positions pelvis. First loosen the cylinder head screw on the rear of the therapy chair at the lower edge of the cover (A). -
Page 20: Knee Abduction Wedge
For all removable fabrics please pay attention to the sewn-in care labels (such as A + B) on Obermaterial/ top cloth/dessus: the respective element. Please also pay attention to 100% Polyester our general cleaning and hygiene advice. This can be found at www.schuchmann.de/mediathek. -
Page 21: Disinfection
5. Cleaning and servicing. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and pla- stic parts. Liquid disinfectants are available as ready-to-use solutions that are sprayed on and evenly applied with a soft cloth. Alternatively, wipes pre-soaked with disinfectant can be used to wipe the products over the entire surface. -
Page 22: Maintenance Plan
5. Cleaning and servicing. • Functionality of the rollers (concentricity, smooth running) • Check the harness for damage (clamping devices, closures, seams) • Check the pads and covers for damage • Legibility of the type label • Final complete functional check of the aid •... -
Page 23: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product. -
Page 24: Technical Data
6. Technical data. Dimensions Size 0 Size 1 Size 1 b Size 2 Seat depth* 15 - 25 cm 21 - 30 cm 26 - 36 cm 30 - 42 cm Seat width 16 - 26 cm 20 - 30 cm 20 - 30 cm 28 - 38 cm Back height with short back... -
Page 25: Guarantee
7. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 26: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 27: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The madita-fun. therapy chair is available in three sizes and can be supple- mented through a diverse range of accessories (see Point 3). 8.4 Issue of the document Instructions for use madita-fun. - Page 28 schuchmann.de...
