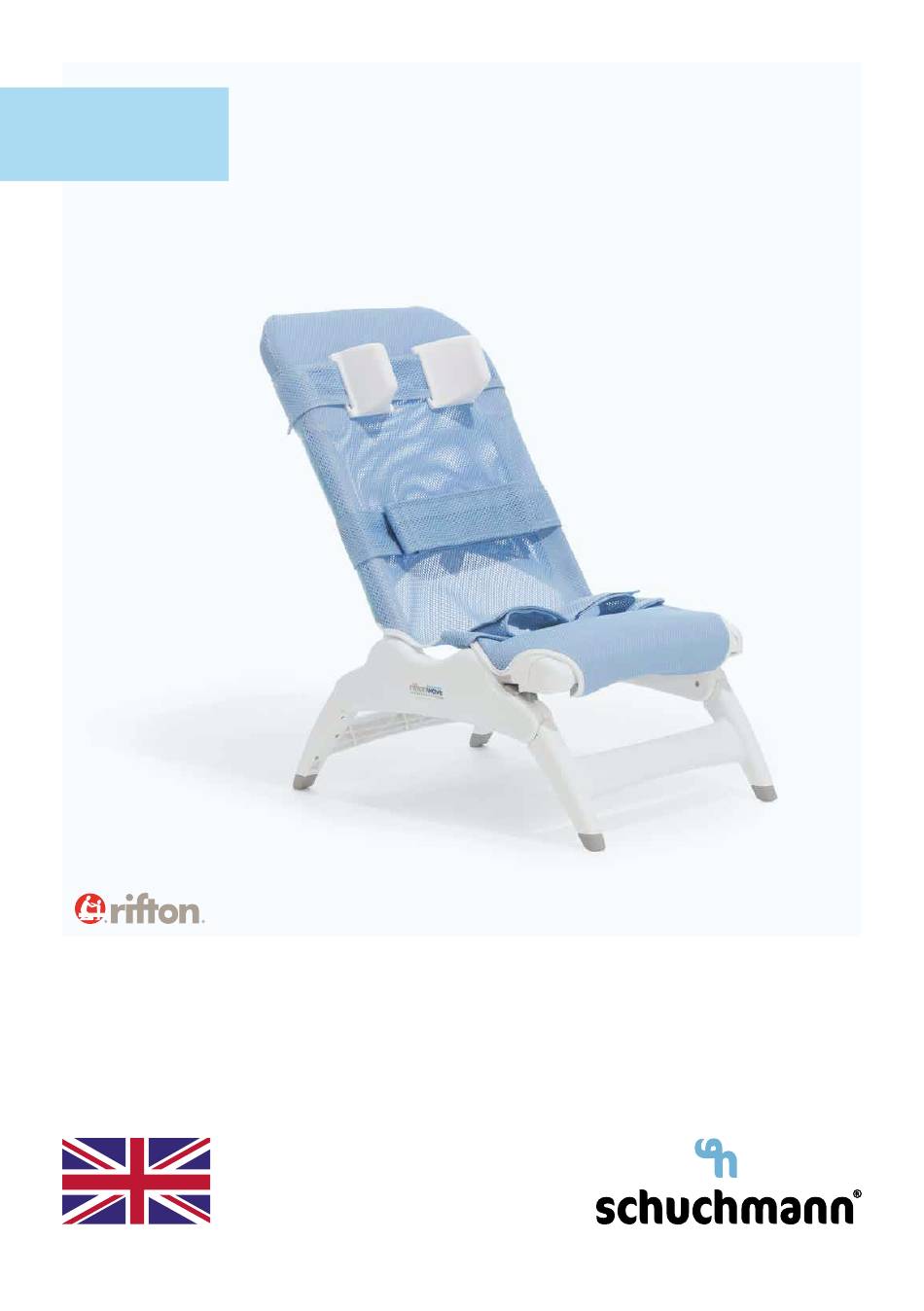

- Page 1 wave. Instructions for use. wave. The bathing and shower cradle by Rifton.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................... 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description............... 06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indication ......................06... - Page 4 Contents. 6. Technical data................16 7. Guarantee..................17 8. Identification................18 8.1 EU Declaration of Conformity ................18 8.2 Serial number / date of manufacture ............19 8.3 Product version ......................20 8.4 Issue of the document ..................20 8.5 Name and address of the manufacturer, specialist dealer sup- plying the product ....................20...
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de . -
Page 6: Product Description
2. Product description. 2.1 Material information The wave. bathing and shower cradle is made from UV-resistant PVC pipe and nylon fabric. All metal parts are produced from rustproof steel. The straps are sewn from Nylon hook and eye tape. The bathing cradle sub-frame is made from UV-resistant PVC pipe. -
Page 7: Contraindications
• Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Only use the bathing and shower cradle if all components have been correctly mounted and adjusted. -
Page 8: Equipment For Basic Model
2. Product description. 2.5 Equipment for basic model • UV-resistant plastic frame with removable cover • angle of seating surface and backrest can be adjusted • Back angle adjustable through practical one-hand operation • Two lying heights due to adjustable feet •... -
Page 9: Settings
The wave. bathing and shower cradle offers support while bathing in bathtubs or other bathing environments. The seat, the back and the calf support are adjustable. Rifton Wave is available in three sizes. All sizes of the bathing cradle fit onto the shower sub-frame (A), the bathtub subfra- me (B) and the transfer sub-frame (C). -
Page 10: Headrest / Torso Support
3. Settings. 3.4 Headrest / torso support The position of the headrest / torso support (A) can quickly and easily be continuously adjusted to the desired position. The width can be adjusted by moving the respective guide. 3.5 Chest, pelvic and leg straps The position of the chest strap / pelvic harness (B) can quickly and easily be continuously adjusted to the... -
Page 11: Accessories
4. Accessories. 4.1 Mounting the bathing cradle on the bath sub-frame Put the bathing cradle feet into the ma- ximum upright position (see Point 3.6). Then press the bathing cradle feet firmly into the mounts (A) of the sub-frame until they engage. In order to remove the bathing cradle, press the grey levers (B) down, as shown, one after the other and lift the bathing... -
Page 12: Mounting The Bathing Cradle Onto The Transfer Sub-Frame
4. Accessories. 4.3 Mounting the bathing cradle onto the transfer sub-frame Press the grey tabs (A) together and put the legs in an upright position until they enga- ge audibly. Subsequently bring the standing legs of the bathing cradle into a completely flat position (see Point 3.6) and hook in the bathing cradle below the hook (B). -
Page 13: Swivel Movement Of The Transfer Sub-Frame From Right To Left
4. Accessories. 4.3.2 Swivel movement of the transfer sub-frame from right to left (or vice versa) The transfer sub-frame can be swivelled eit- her to the left or to the right. In order to chan- ge the respective direction of swivel, remove the screws (A). -
Page 14: Cleaning And Servicing
Polyurethane/ Please also pay attention to our general clea- Polyuréthane ning and hygiene advice. This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. -
Page 15: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product. -
Page 16: Technical Data
6. Technical data. Dimensions Size 1 Size 2 Size 3 Seat depth 27 cm 33 cm 43 cm Seat width 38 cm 38 cm 44 cm Back height 58 cm 67 cm 81 cm Seat height 5 cm / 18 cm 5 cm / 18 cm 5 cm / 18 cm Seat height with bath sub-frame... -
Page 17: Guarantee
7. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 18: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 19: Serial Number / Date Of Manufacture
Rudolf-Runge-Str. 3 • 49143 Bissendorf • Germany max. load Product Size Type Max. load SN / UDI-PI UDI-DI Date of manufacture Barcode UDI-DI Barcode UDI-PI schuchmann.de • info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR... -
Page 20: Product Version
8.5 Name and address of the manufacturer, specialist dealer supplying the product This product was manufactured by: Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Germany Phone +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 info@schuchmann.de ·...
