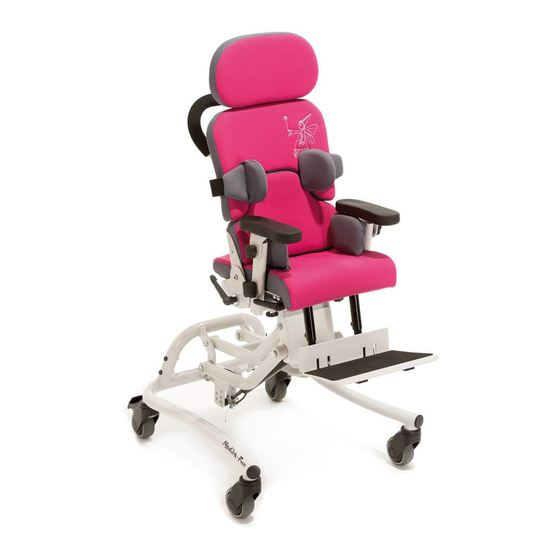

Schuchmann MADITA-FUN Instructions For Use Manual
Modern, integrative therapy chair
Hide thumbs
Also See for MADITA-FUN:
- Instructions for use manual (32 pages) ,
- User manual (12 pages) ,
- Assembly instructions (5 pages)
Related Manuals for Schuchmann MADITA-FUN
Summary of Contents for Schuchmann MADITA-FUN

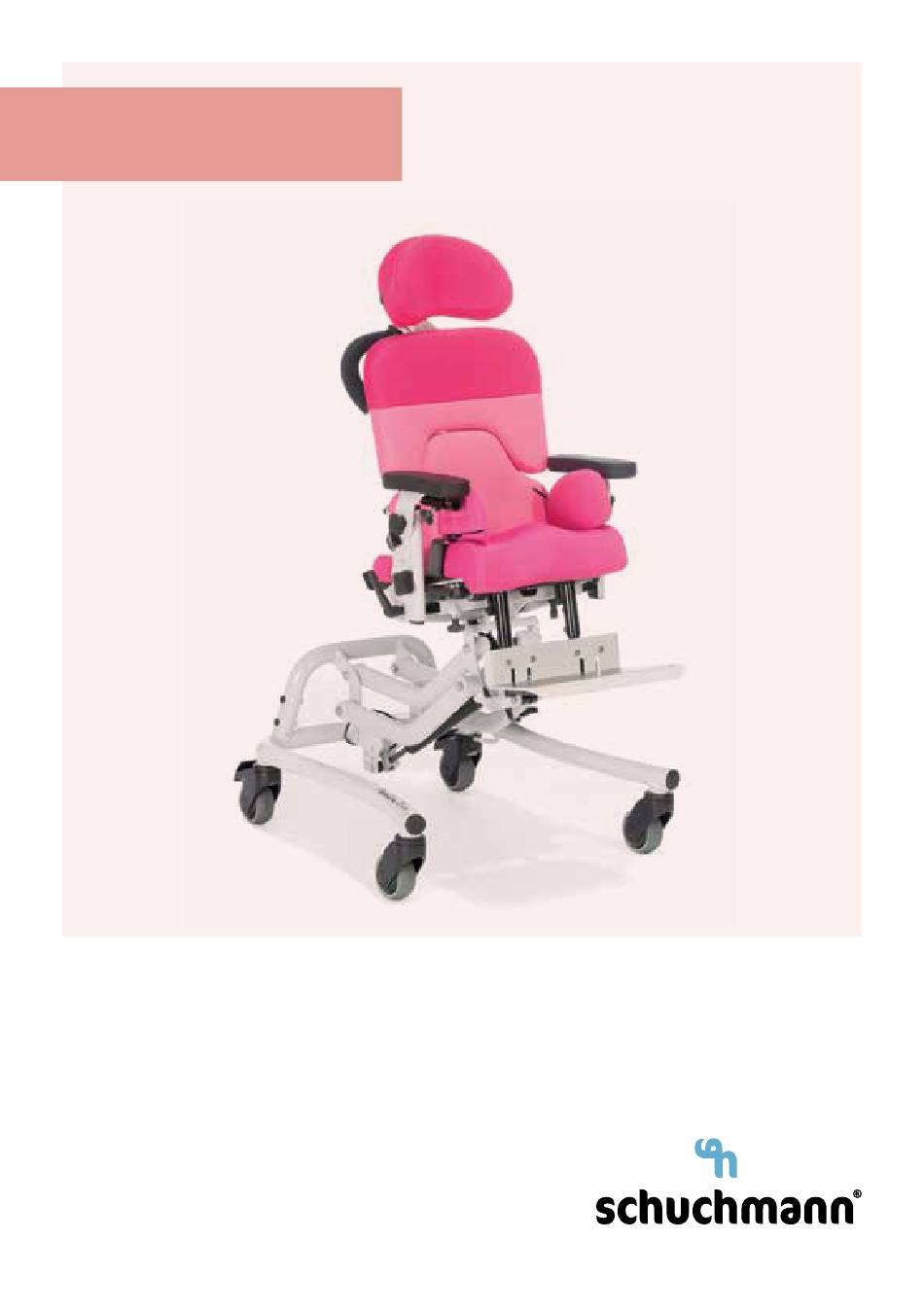

- Page 1 Instructions for use. madita-fun. The modern, integrative therapy chair.
- Page 2 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation..................05 1.1 Delivery ........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal ......................05 1.3.1 Packaging ....................05 1.3.2 Produkt ....................05 1.4 Where to store the Instructions for use ............. 05 2. Product description................06 2.1 Material information .................... - Page 4 Inhalt. 5. Repairs and cleaning..............20 5.1 Cleaning ........................20 5.2 Repairs ........................20 5.3 Spare parts ......................20 5.4 Duration of use and re-use ................21 6. Technical data................21 7. Guarantee..................22 8. Identification.................23 8.1 EC declaration of conformity ................23 8.2 Serial number / date of manufacture ............24 8.3 Product version ......................24 8.4 Ausgabe des Dokuments .................24 8.5 Name and address of the manufacturer,...
-
Page 5: Preparation
1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. Please send a complaint in writing to the specialist dealer responsible. -
Page 6: Product Description
The child may not be located in the therapy chair whilst it is being transported! 2.3 Application areas, use according to the intended purpose madita-fun. therapy chair has been designed for children and teen- agers who are unable to sit or stand independently, but whose limited torso madita-fun. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Guidelines
• The max. load (see point 6) may not be exceeded. • Do not use the therapy chair if it has defective, worn or missing parts. • For reasons of fire safety, the therapy chair may not be placed close to an open fire or any other strong source of heat such as electric or gas heaters. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child. • Only use the therapy chair if all components have been correctly mounted and adjusted. • Please ensure that none of the user‘s extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 8: Auflistung Zubehör
2. Product description. 2.6 Auflistung Zubehör • Headrest • Hydraulic height adjustment • Removable back • Electrical height adjustment • Thorax pelotte pads (also foldable) • Anti-tip mechanism • Thigh guide • Incontinence coating • Adjustable pelvic guide • Wheel base extension • Therapy table • Strap assembly kit for the • Knee abduction wedge seat area • Conversion kit for combination • Strap assembly kit for the subframe back area • Central parking brake • Incontinence coating • Fixing aids... -
Page 9: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user‘s extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. 3.1 Seat height The seat height is adjusted using a gas pressure spring. -
Page 10: Seat Angle
3. Settings. Electrical height adjustment is also possib- le. This is operated with the existing remote operation (A). Press the arrow key downwards in order to adjust the seat height downwards and upwards in order to adjust the seat height upwards. -
Page 11: Back Height
3. Settings. 3.5 Back height Loosen the cylinder head screw (A) with the hexagonal wrench (M8) at the rear and bring the back into the required height. 3.6 Armrests The armrests can be adjusted in angle, height and width. The angular adjust- ment takes place after loosening the star knob (B). -
Page 12: Foot Support
3. Settings. 3.7 Foot support A foot support (A) is already included in the basic model of the MADITA-Fun therapy chair. This has a non-slip surfa- ce (B) and has 8 slots (C) for fixing straps such as foot cuffs or foot fixing straps. -
Page 13: Footrests
3. Settings. 3.8 Footrests madita-fun. Optionally, can also be equipped with footrests (A). These have a non-slip surface (B) and have 4 slots each (C) for fixing straps such as foot cuffs or foot fixing straps. For adjust- ment of the knee angle, please loosen... -
Page 14: Positioning Of The Footrests
3. Settings. 3.8.1 Positioning of the footrests optimum positioning feet, the footrests can be adjusted independently of each other in width, angle and depth. Width In order to adjust the width (C), please loosen the pan head screws (D) under the footrests, bring the footrest into the required position and retighten the pan head screws (D). -
Page 15: Footrests With Foot Pans
3. Settings. 3.9 Footrests with foot pans Optionally, the footrests can also be equipped with foot pans (A). Here, as on the standard design, the knee angle can be adjusted, the foot pans folded up and the height adjusted (see point 3.8). -
Page 16: Accessories
(A) with a hexagonal wrench and bring the headrest into the requi- red position. 4.2 Conversion kit for combination sub-frame madita-fun. When retrofitting the the combination sub-frame, the plastic castors are replaced through 6“ pneu- matic tyres with castor forks and 12 ½“... -
Page 17: Removable Back
4. Accessories. 4.3 Removable back The removable back can be operated on the back of the therapy chair. Loosen the turning handle (A), press the locking lever (B) together and then remove the back. The function of the removable back can be in- tegrated into the therapy plan and also used for short periods of time, as the back, including the headrest, is quickly plugged in again, and... -
Page 18: Thigh Guide
4. Accessories. 4.6 Thigh guide The thigh guide pads are individually adjusta- ble in height and depth. In order to adjust the depth, loosen the nuts (A) under the seat area and bring the thigh guide pad into the requi- red position. -
Page 19: Adjustable Pelvic Guide
4. Accessories. 4.8 Adjustable pelvic guide The adjustable pelvic guide can be adjusted in width, provides the child with a high level of security and positions the pelvis. First loosen the cylinder head screw on the rear of the the- rapy chair at the lower edge of the cover (A). -
Page 20: Knee Abduction Wedge
30° in the washing machine. Please do not dry the covers in a dryer and do not use aggressive cleaning agents or simi- lar products. Please also pay attention to our general cleaning and hygiene www.schuchmann.de/madita-fun. advice. You can find this on 5.2 Repairs Please carry out a daily visual inspection and check the therapy chair regu- larly for cracks, breaks, missing parts and malfunctions. -
Page 21: Duration Of Use And Re-Use
5. Instandhalten und Reinigen. 21 21 5.4 Duration of use and re-use The expected duration of use of our product, dependent on the usage in- tensity and amount of re-use, totals up to „8“ years if the usage takes place in accordance with the information in these Instructions for use. -
Page 22: Guarantee
6. Technical data. Size 0 Size 1 Size 1 b Size 2 Seat depth 15 - 25 cm 21 - 30 cm 26 - 36 cm 30 - 42 cm Seat width 16 - 26 cm 20 - 30 cm 20 - 30 cm 28 - 38 cm Back height with short back... -
Page 23: Identification
8. Identification. 8.1 EC declaration of conformity Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below, classified in product class 1, madita-fun. The modern, integrative therapy chair. Art. No.: 74 00 000 (Size 0) -
Page 24: Serial Number / Date Of Manufacture
8.4 Ausgabe des Dokuments madita-fun. Instructions for use - Change status J; Issue 09.2018 8.5 Name and address of the manufacturer, specialist dealer supplying the product This product was manufactured by: Schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen Tel. +49 (0)5405/909-0 · Fax +49 (0)5405/909-109 info@schuchmann.de · www.schuchmann.de This product has been delivered by the following specialist dealer:...
