Summary of Contents for Schuchmann floyd

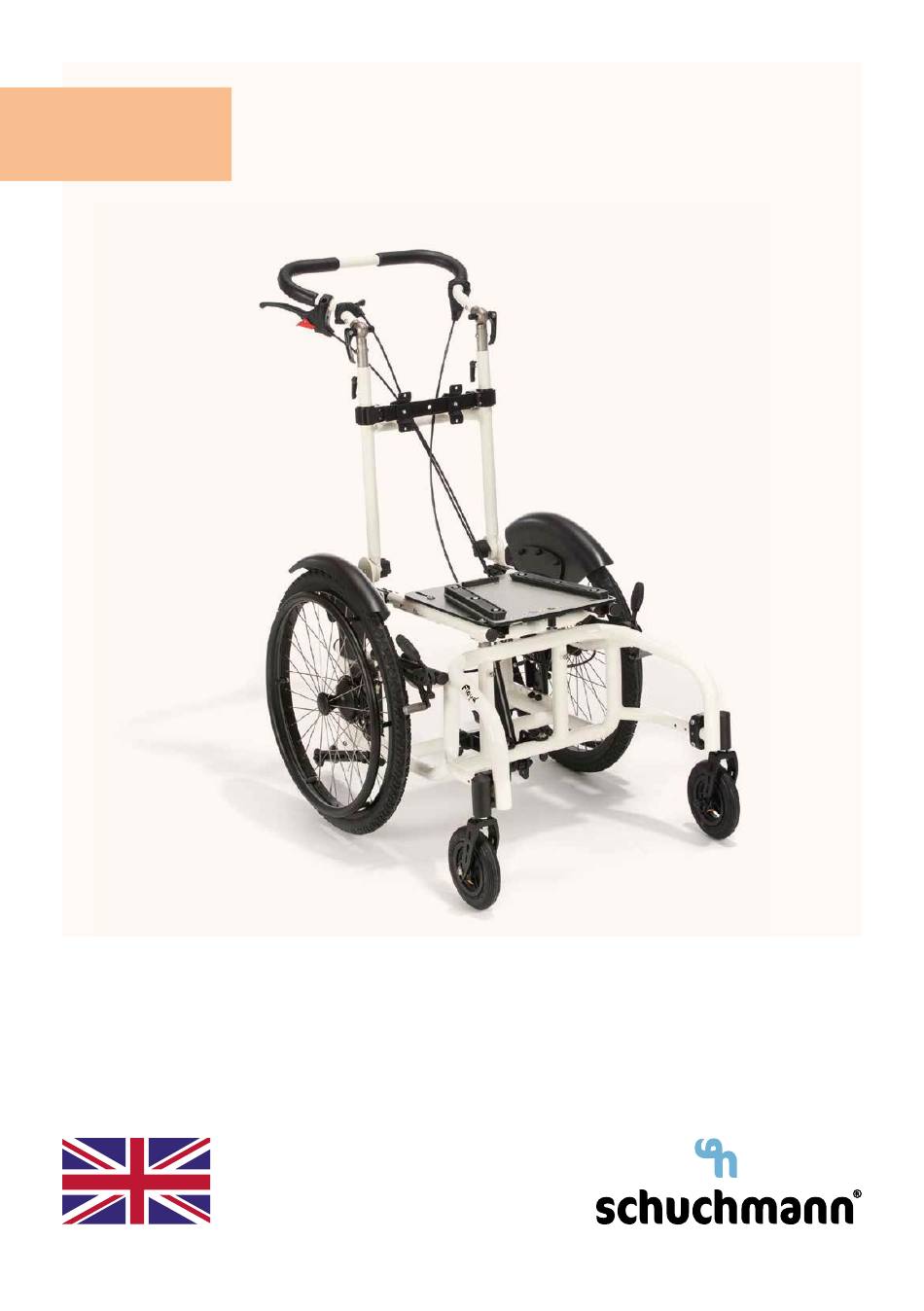

  • Page 1 Instructions for use. floyd. The robust seat pan sub-frame.
  • Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...

  • Page 3: Table Of Contents

    Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indication ......................06...
  • Page 4 Contents. 6. Adapter systems................. 19 6.1 Seat pan adapter, standard ................19 6.2 Seat pan adapter, trapezoidal shape ............19 6.3 Seat plate assembly ....................20 7. Cleaning and servicing..............21 7.1 Cleaning and disinfecting ..................21 7.1.1 Cleaning ........................ 21 7.1.2 Disinfection ......................

  • Page 5: Preparation

    1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de .

  • Page 6: Product Description

    To this end, please pay attention to Point 2.10. of these instructions for use! 2.3 Application areas, use according to the intended purpose floyd. seat pan sub-frame is a medical product of risk class 1 and designed to accommodate seat pan systems and seat pans for larger users with higher weight or a higher degree of activity.

  • Page 7: Use Not In Accordance With The Intended Purpose / Warning Gui

    • Do not use with defective, worn or missing parts. • Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. • Only use the seat pan sub-frame if all components have been correctly mounted and adjusted.

  • Page 8: List Of Accessories

    2. Product description. 2.6 List of accessories • Additional gas pressure spring for the seat angle adjustment • Push bar • Armrests • Headrest bracket • Clothing guard • Spoke guard • Knee lever brake with bracket 2.7 Product overview The Fig.

  • Page 9: General Settings

    2. Product description. 2.8 General settings floyd. To correctly us the seat pan sub-frame, it must be adjusted correctly. Some important points are as follows: • With the seat angled more, the rear wheels should be moved back – and moved forwards with a slight tilt.

  • Page 10: Settings

    Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. 3.1 Seat tilt floyd. The seat of the can be ad- justed by 30° in the basic setting using gas pressure springs.

  • Page 11: Back Angle Adjustment With Central Quick Adjustment

    3. Settings. 3.3 Back angle adjustment with central quick adjustment The back can be adjusted via the central fast adjustment at an angle of 90° to 120° to the seat frame. For versions with a gas pressure spring, the adjustment is made by pressing the lever on the gas pressure spring (A) and by releasing the clamp lever (B) for the mechanical version.

  • Page 12: Seat Height Adjustment

    3. Settings. 3.4 Seat height adjustment The height of the seat adapter can be adjusted by loosening both screws (A) on the horizontal tubes. Max. height adjustment 8 cm! The height of the gas pressure spring or the two gas pressure springs for versions with double gas pressure springs must then be adjusted.

  • Page 13: Back Unit Adjustment

    3.7 Push handles floyd. The push handles of the be adjusted individually in height. This takes place after loosening the two clamp levers (A) on the rear tubes.

  • Page 14: Handling Of Wheels

    4. Handling of wheels. The following are general rules: High air pressure: Low rolling resistance / less suspension comfort Lower air pressure: Higher rolling resistance / more suspension comfort See point 9 for sizes and air pressure for the guide and rear wheels (techni- cal data).

  • Page 15: Quick Release Axle

    4. Handling of wheels. 4.2 Quick release axle The quick-release axles of the rear floyd. wheels make transporting your significantly easier. You only need to press the button (A) in the centre of the wheel hub, and the wheel can be easily removed or reinserted.

  • Page 16: Guide Wheels

    4. Handling of wheels. 4.4 Guide wheels To guarantee perfect steering control, the steering axle on the front wheels (A) must be positioned vertical to the surface (B). If this no longer the case due to changes to the rear or front wheels, the front wheels can be read- justed by turning the two eccentric nuts (C) on the front wheel adapters.

  • Page 17: Accessories

    5. Accessories. 5.1 Tilting device Using the tilting device, the accompanying person can tilt the chassis easier, e.g. to drive over a kerb. The tilting device is mounted in the rear, lower frame tube. 5.2 Swing-away anti-tip mechanism The swing-away anti-tip mechanism prevents the chassis from tipping back.

  • Page 18: Footrests

    5. Accessories. 5.4 Footrests floyd. There are different footrest variants for which are fixed to the seat frame at the base plate for external adapters. After in- serting the knee angle in the footboard ad- apters (A) under the base plate and setting the depth, the footrest is tightened with the two wing screws (B).

  • Page 19: Adapter Systems

    6. Adapter systems. floyd. is prepared to accommodate a seat unit or seat pan. The seat ad- apter represents the connection point. 6.1 Seat pan adapter, standard 1. Insert the adapter into the rear tube of the seat pan support.

  • Page 20: Seat Plate Assembly

    6. Adapter systems. 6.3 Seat plate assembly Transfer the hole pattern of the trape- zoidal adapter onto the seal pan body and mount the seat plate with four M6 countersunk screws (strength class 8.8) onto the trapezoidal adapter. Please use M6 self-locking nuts (min. strength class 8) to fasten.

  • Page 21: Cleaning And Servicing

    7. Cleaning and servicing. 7.1 Cleaning and disinfecting 7.1.1 Cleaning 7190045 Please clean all frame elements regularly with a spon- ge or damp cloth; making sure that water droplets are removed. Please clean with a mild household deter- gent for severer dirt. Thorough drying of the cleaned areas is important.

  • Page 22: Maintenance Specifications

    7. Cleaning and maintaining. 7.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •...

  • Page 23: Spare Parts

    7. Cleaning and maintaining. 7.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty ex- pires. Should you wish to order spare parts, please contact the specialist dealer who supplied you with the product, stating the serial number of the therapy chair (see Point 10.5).

  • Page 24: Technical Data

    8. Technical data. 8.1 Dimensions Size 1 Size 2 Size 3 Min. seat height* 45 cm 45 cm 45 cm Seat depth 35 - 45 cm 40 - 50 cm 40 - 50 cm Seat angle (adjustment range) 30° 30° 30°...

  • Page 25: Guarantee

    9. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion.

  • Page 26: Identification

    Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1 declares under our sole responsibility that the following product(s) of Class 1 Medical Devices / chassis for outdoor use „floyd.“ Fahrgestell für den Außenbereich Item-No.: Art.-Nr. / 77 01 000, 77 02 000, 77 03 000...
  • Page 27 EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 Diese Konformitätserklärung gilt nur für Produkte mit den oben genannten Artikelnummern und...

  • Page 28: Serial Number / Date Of Manufacture

    UDI-DI Date of manufacture Barcode UDI-DI Barcode UDI-PI schuchmann.de • info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 10.3 Product version floyd. seat pan sub-frame is available in three sizes and can be sup- plemented through a diverse range of accessories (see Point 5).
