  • Page 1: User Manual

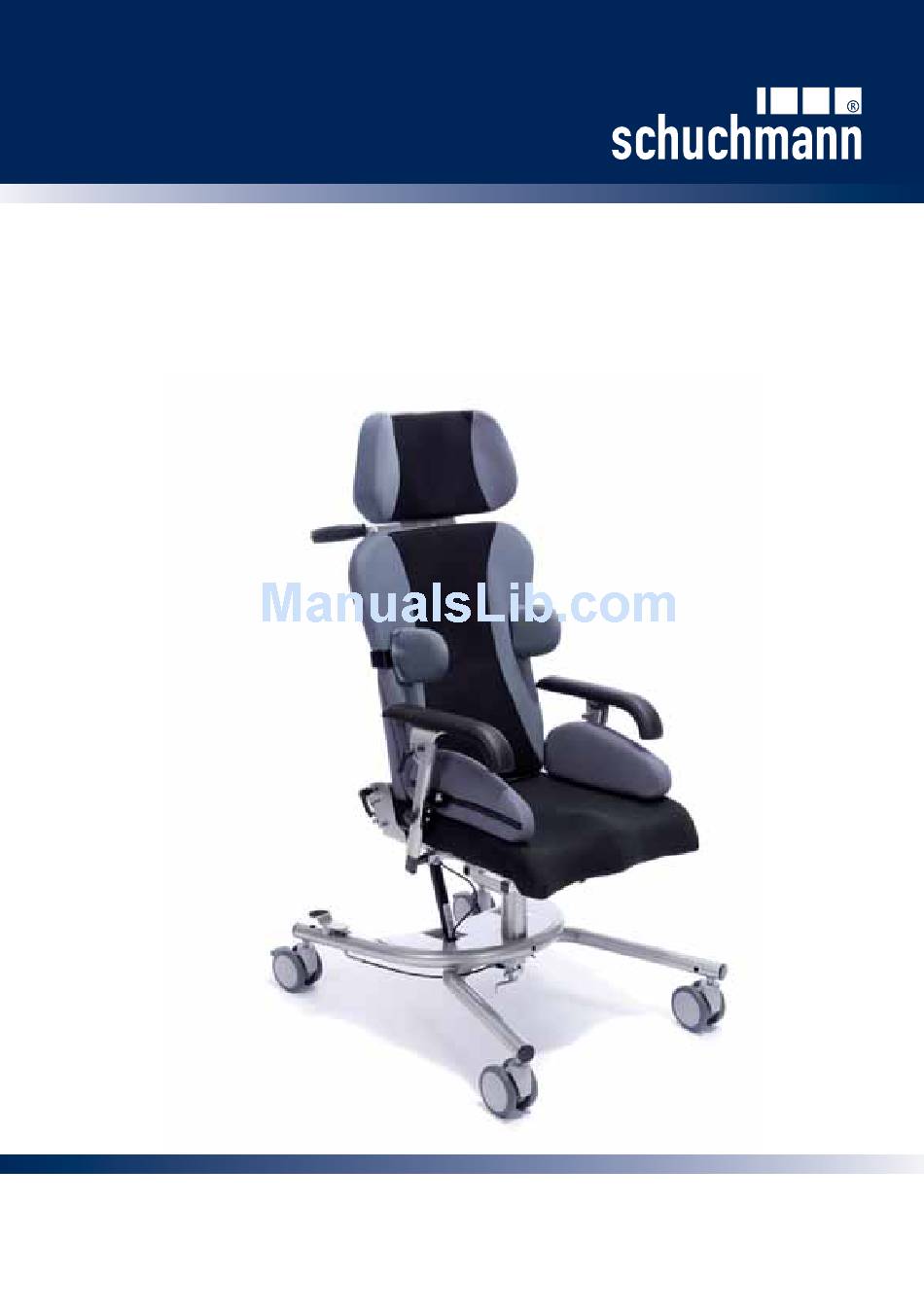

    MADITA MAXI the proven, solid therapy chair User Manual...
  • Page 2 We reserve the right to make technical alterations at any time. Please retain these instructions with the product, keeping them safely for future reference. Yours Schuchmann Team...

  • Page 3: Table Of Contents

    Contents Page 1. Preparation before use 1.1 Transport......................2 1.2 Safety instructions before use................2 1.3 Disposal of packaging material................. 2 1.4 Storing the user manual..................2 2. Product description 2.1 Materials......................2 2.2 Areas of application, intended use..............2 2.3 Not intended use / warnings................

  • Page 4: Preparation Before Use

    A limited posture makes it not necessary to sit in a seat shell constantly and therefore MADITA MAXI is the ideal chair for everyday life. It is also suitable in the geriatric sector and enables a coverage up to...

  • Page 5: Not Intended Use / Warnings

    2.3 Not intended use / warnings CAUTION! • MADITA MAXI should only be used by one youth/adult at the same time. • Never leave person unattended. • Correct use of MADITA MAXI requires an prior instruction of the caregiver. • Max. load of 120 kg should not be exceeded.

  • Page 6: List Of Accessory

    2.5 List of accessory • standard headrest – padded, • abduction wedge height adjustable • communication tray • headrest with directional control – • incontinence coating for the padded, height and angle adjustable seating area • shell-shaped headrest – padded, •...

  • Page 7: General Settings

    2.7 General settings 2.7.1 Locking the steering castors Please leave basically the brakes on to make sure that the therapy chair does not roll unintentionally. Brakes only operate correctly on even surfaces! 2.7.2 Adjustment of seat angle Seat angle adjustment is assisted by two gas springs. To adjust the seat angle, operate the foot pedal and with slight assistance the seat can be moved into the active or passive position.

  • Page 8: Seat Height

    2.7.3 Adjustment of seat height MADITA MAXI can be adjusted up to 12 cm in height, delivery takes place in lowest setting. Operate the crank (A) underneath the base frame to change the height. In addition, both gas springs must be readjusted in the height.

  • Page 9: Seat Depth

    2.7.5 Adjustment of seat depth Seat depth can be adjusted after loosening the two grub screws on both sides of the chair. Please retighten the grub screws after adjustment! 2.7.6 Adjustment of backrest height To adjust the height of the backrest, the two twist grips on the back of the backrest should be loo- sened.

  • Page 10: Accessory

    3. Accessory 3.1 Headrest The headrest is height adjustable. Loosen all four nuts on the back of the backrest and bring the headrest into the desired position. Please retighten all nuts when adjusted! 3.2 Side support pads Side support pads are height- and width- adjustable.

  • Page 11: Footrest

    3.4 Footrest The knee angle adjustment has a snap-lock joint which allows an adjustment in small steps. Both twist grips must be loosened to adjust the angle. Please loosen the grub screws (B) on the back of the footrest to adjust the height. Please retighten all bolted connections when adjusted! 3.5 Removable footplate...

  • Page 12: Knee Abduction Wedge

    3.7 Knee abduction wedge Loosen the wing bolt (A) to adjust the knee ab- duction wedge in the height. For depth adjust- ment loosen wing bolt (B) underneath the seat. Please retighten all bolted connections when adjusted! 3.8 Wheelbase extension The wheelbase extension serves to ensure sta- bility even for larger seating systems and back- wards tilted seat angle.

  • Page 13: Technical Data

    5. Technical data Measurements in cm A Seat depth 36 - 47 B Seat width 34 - 44 C* Height of low backrest C* Height of high backrest C** Height of low backrest C** Height of high backrest Seat height 45 - 57 G Total width H Total length...

  • Page 14: Warranty

    4. If the product has been fi tted with any accessories that have not been supplied by Schuchmann, the warranty shall lapse. 5. The manufacturer is not liable for damages caused by components and spare parts, which are not released by the manufacturer.

  • Page 15: Identifi Cation

    Fax: +49 (0) 54 05 / 909 - 109 declares in sole responsibility, that the below mentioned product of class 1 medical devices „MADITA MAXI“ - the proven, solid therapy chair Art.-No.: 30 03 000 complies with the requirements of the below listed directives and standards: •...

  • Page 16: Serial Number / Date Of Production

    The date of production can be deduced as marked (month / year) out of the serial number. 7.3 Product versions The proven and solid therapy chair MADITA MAXI is available in one size and can be supplemented by optional accessories (see item 3). 7.4 Date of issue of this document User manual MADITA MAXI - Revision A;...
