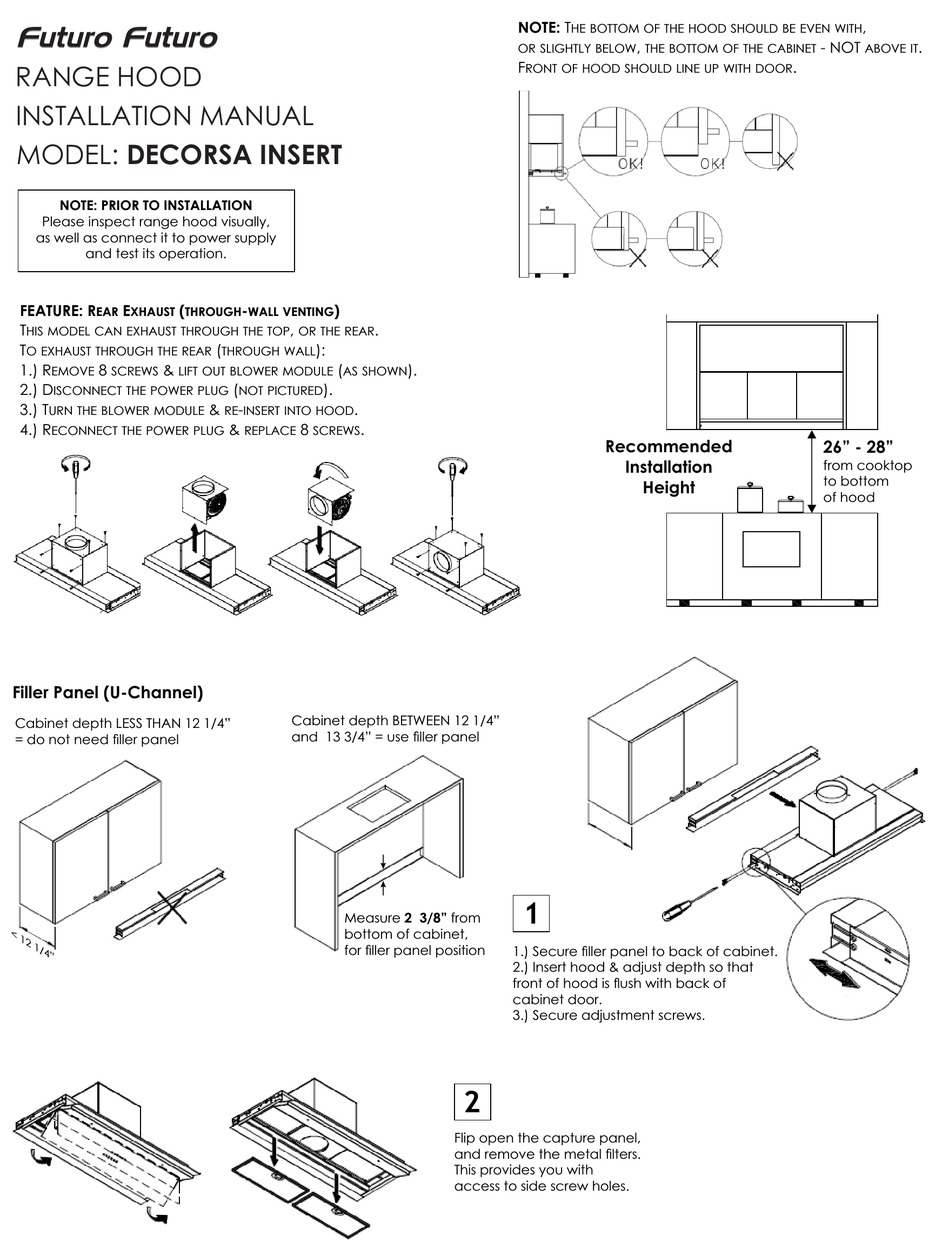

Futuro Futuro DECORSA INSERT Installation Manual

Futuro Futuro
Futuro Futuro

RANGE HOOD

INSTALLATION MANUAL

MODEL: DECORSA INSERT
NOTE: PRIOR TO INSTALLATION
Please inspect range hood visually,
as well as connect it to power supply
and test its operation.
FEATURE: R E (
EAR XHAUST THROUGH
T
HIS MODEL CAN EXHAUST THROUGH THE TOP
T
O EXHAUST THROUGH THE REAR
1.) R 8 &
EMOVE SCREWS LIFT OUT BLOWER MODULE
2.) D
ISCONNECT THE POWER PLUG
3.) T
URN THE BLOWER MODULE
4.) R
ECONNECT THE POWER PLUG
Filler Panel (U-Channel)
Cabinet depth LESS THAN 12 1/4"
= do not need ller panel
<
1 2
1 /
4 "
- )
WALL VENTING
, .
OR THE REAR
( ):
THROUGH WALL
(
AS SHOWN
( ).
NOT PICTURED
& - .
RE INSERT INTO HOOD
& 8 .
REPLACE SCREWS
Cabinet depth BETWEEN 12 1/4"
and 13 3/4" = use ller panel
Measure 2 3/8" from
bottom of cabinet,
for ller panel position
NOTE: T
HE BOTTOM OF THE HOOD SHOULD BE EVEN WITH
OR SLIGHTLY BELOW
F
RONT OF HOOD SHOULD LINE UP WITH DOOR
).
1
1.) Secure ller panel to back of cabinet.
2.) Insert hood & adjust depth so that
front of hood is ush with back of
cabinet door.
3.) Secure adjustment screws.
2
Flip open the capture panel,
and remove the metal lters.
This provides you with
access to side screw holes.
,
THE BOTTOM OF THE CABINET
Recommended
Installation
Height
,
- NOT .
ABOVE IT
.
26" - 28"
from cooktop
to bottom
of hood
