Futuro Futuro RACCOLTA INSERT Installation Manual

Futuro Futuro

RANGE HOOD

MODEL: RACCOLTA INSERT

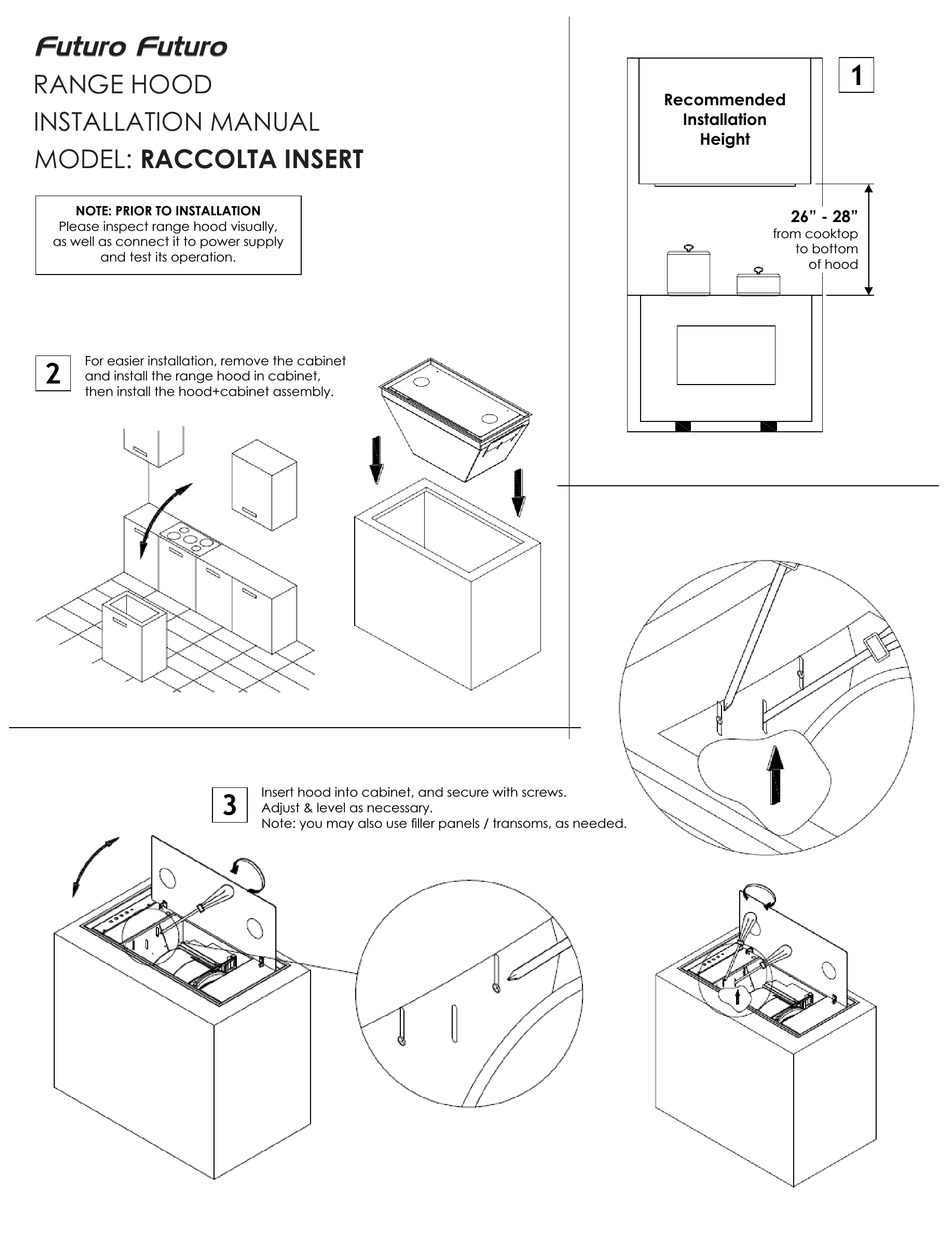

NOTE: PRIOR TO INSTALLATION

Please inspect range hood visually,

as well as connect it to power supply

and test its operation.

For easier installation, remove the cabinet

and install the range hood in cabinet,

then install the hood+cabinet assembly.

Insert hood into cabinet, and secure with screws.

Adjust & level as necessary.

Note: you may also use ller panels / transoms, as needed.

Recommended

Installation

Height

26" - 28"

from cooktop

to bottom

of hood
