Chore-Time Hyflo Assembly Manual page 5

48" and 52" HyfloTM Un-Assembled Fans Assembly Manual

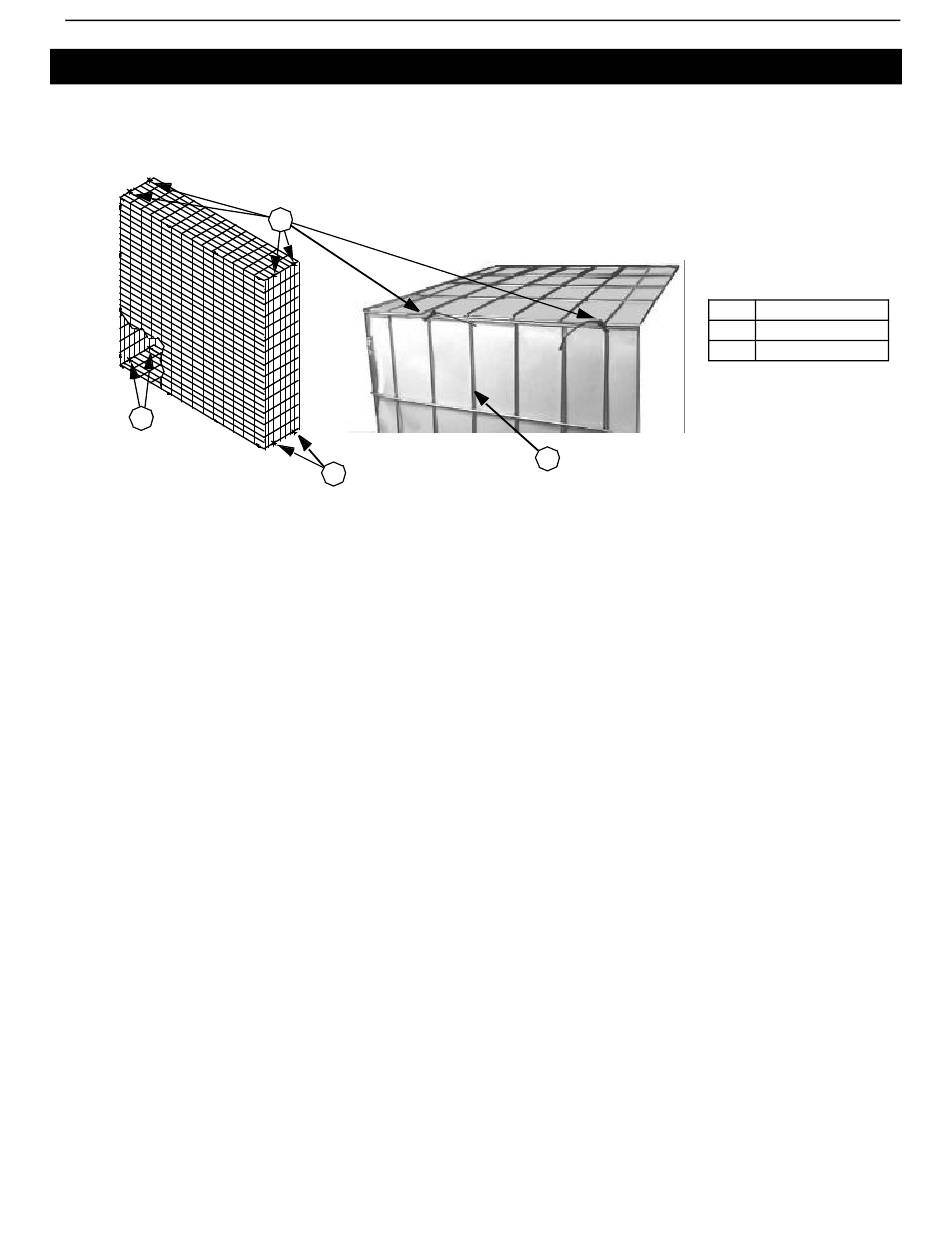

Assembling the Inlet Screen
With the Inlet Screen Laying flat rotate the Screen Sides 90 degrees and secure with supplied Nylon Cable Ties. Use
two Nylon Cable Ties per Corner in the locations shown below. Trim off excess Cable tie. (Cable ties shown before
being cut off for clarity).
3 2
Refer to the Hyflo Installation and Operators Manual MV1747 for further
installation procedures.
MV1756D
3 2
3 2
Assembling the Inlet Screen
Item
1
2
3 1
Description
Screen Side
Nylon Cable Tie
5
