Foundation
B

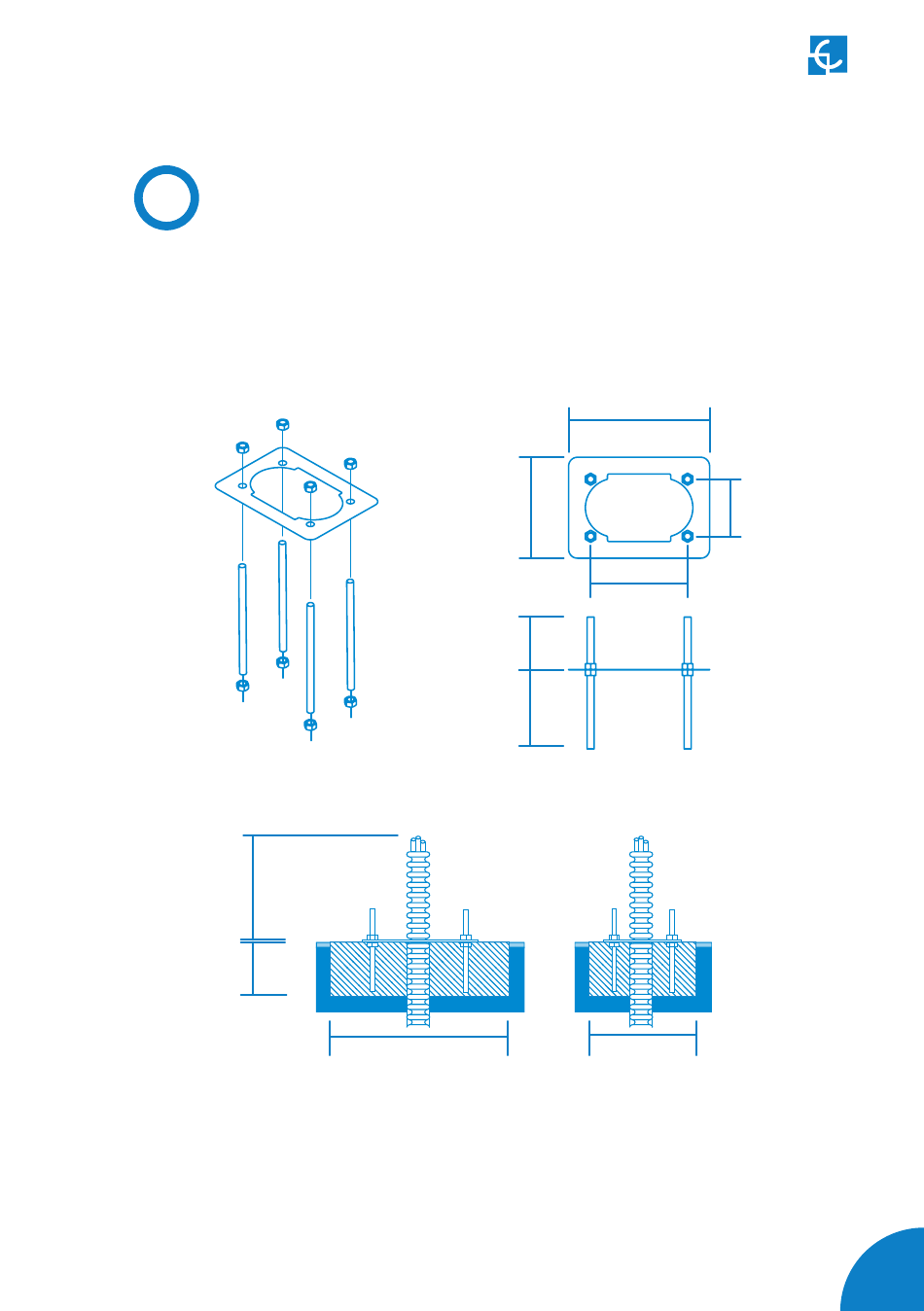

• Place the foundation bolts into the template using provided nuts with the help
of a 24mm open-end wrench.
• Once the kit is assembled, it must be placed in the ground taking into
consideration the following measures.
450
200
Note: In the event of any doubt about the terrain regarding the installation of this
unit, due to the weight and dimensions, it will be necessary to define a final solution
to install the unit. It must be confirmed by a specific technical project made for an
architectural firm prior to its installation.
230
119
180
Front view
500
320
130
220
Side view
300
Measures in mm
