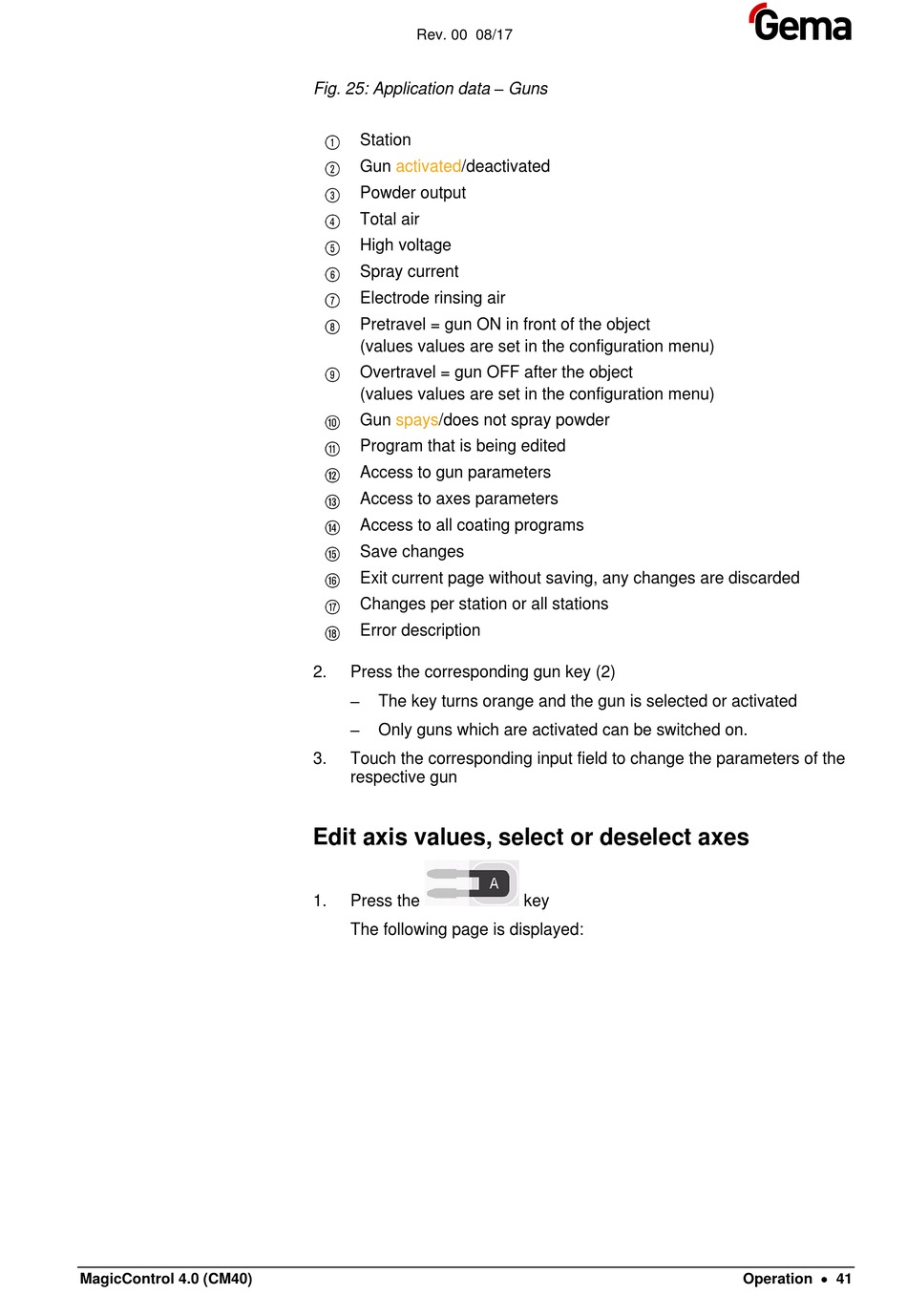

Fig. 25: Application data – Guns
Station
Gun activated/deactivated
Powder output
Total air
High voltage
Spray current
Electrode rinsing air
Pretravel = gun ON in front of the object
(values values are set in the configuration menu)
Overtravel = gun OFF after the object
(values values are set in the configuration menu)
Gun spays/does not spray powder
Program that is being edited
Access to gun parameters
Access to axes parameters
Access to all coating programs
Save changes
Exit current page without saving, any changes are discarded
Changes per station or all stations
Error description
2. Press the corresponding gun key (2)
–
The key turns orange and the gun is selected or activated
–
Only guns which are activated can be switched on.
3. Touch the corresponding input field to change the parameters of the
respective gun

Edit axis values, select or deselect axes

1. Press the
The following page is displayed:
key
