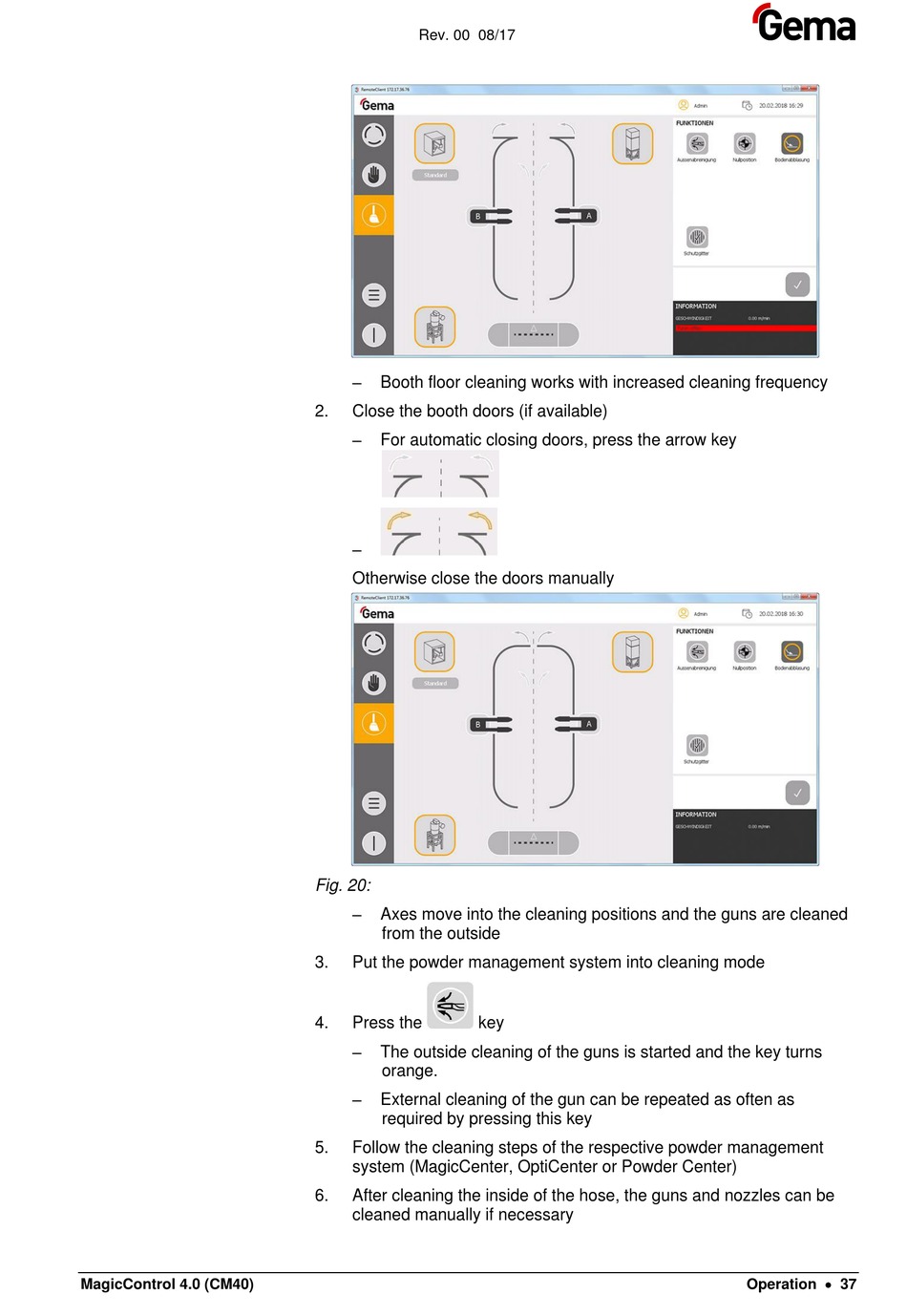

Gema MagicControl 4.0 Operating Instructions Manual page 37

MagicControl 4.0 (CM40)
Rev. 00 08/17
–
Booth floor cleaning works with increased cleaning frequency
2. Close the booth doors (if available)
–
For automatic closing doors, press the arrow key
–
Otherwise close the doors manually
Fig. 20:
–
Axes move into the cleaning positions and the guns are cleaned
from the outside
3. Put the powder management system into cleaning mode
4. Press the key
–
The outside cleaning of the guns is started and the key turns
orange.
–
External cleaning of the gun can be repeated as often as
required by pressing this key
5. Follow the cleaning steps of the respective powder management
system (MagicCenter, OptiCenter or Powder Center)
6. After cleaning the inside of the hose, the guns and nozzles can be
cleaned manually if necessary
Operation  37
