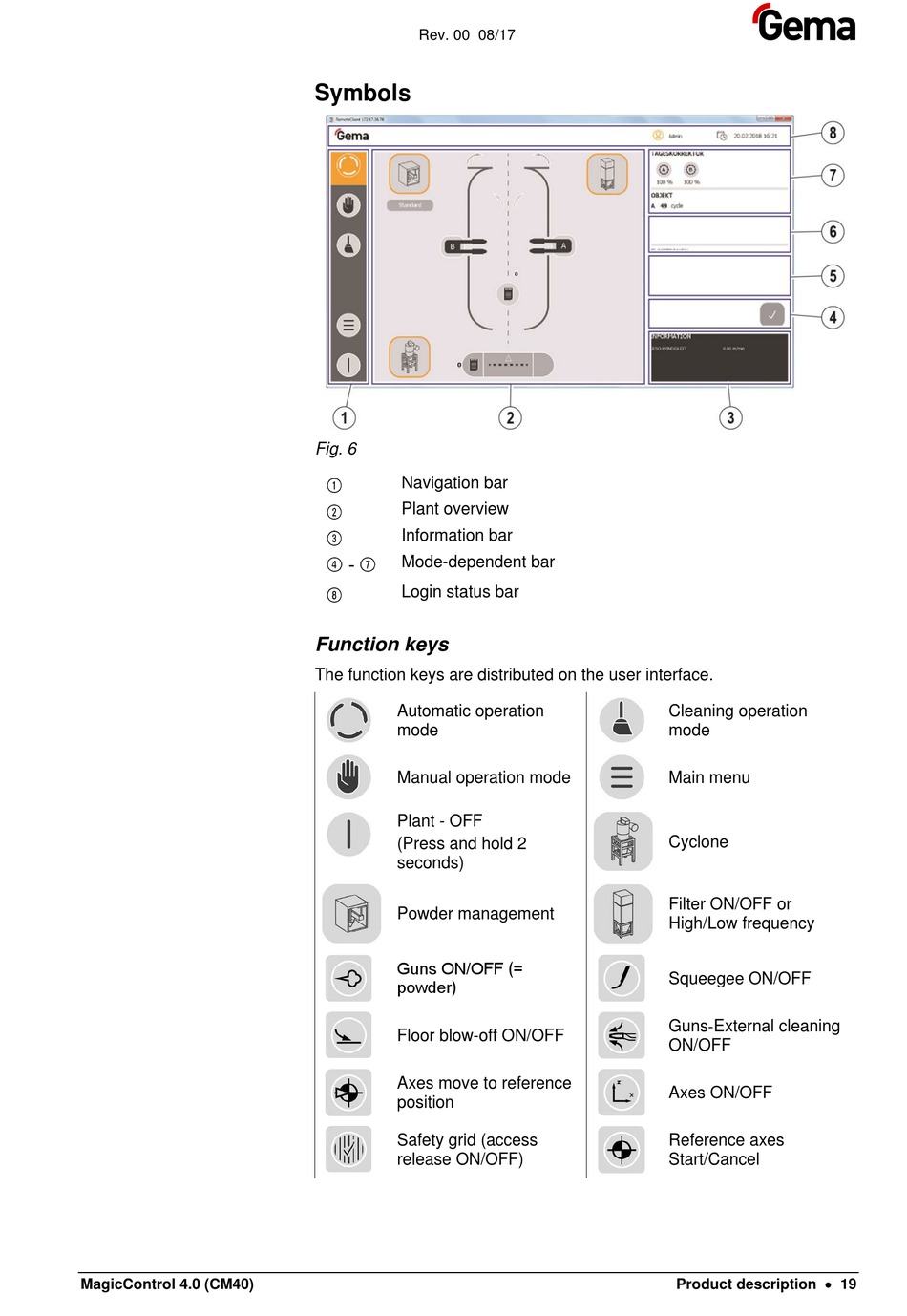

Symbols

Fig. 6
Navigation bar
Plant overview
Information bar
Mode-dependent bar
-
Login status bar
Function keys
The function keys are distributed on the user interface.
Automatic operation
mode
Manual operation mode
Plant - OFF
(Press and hold 2
seconds)
Powder management
Guns ON/OFF ﴾=
powder﴿
Floor blow-off ON/OFF
Axes move to reference
position
Safety grid (access
release ON/OFF)
Cleaning operation
mode
Main menu
Cyclone
Filter ON/OFF or
High/Low frequency
Squeegee ON/OFF
Guns‐External cleaning
ON/OFF
Axes ON/OFF
Reference axes
Start/Cancel
