Technische Daten

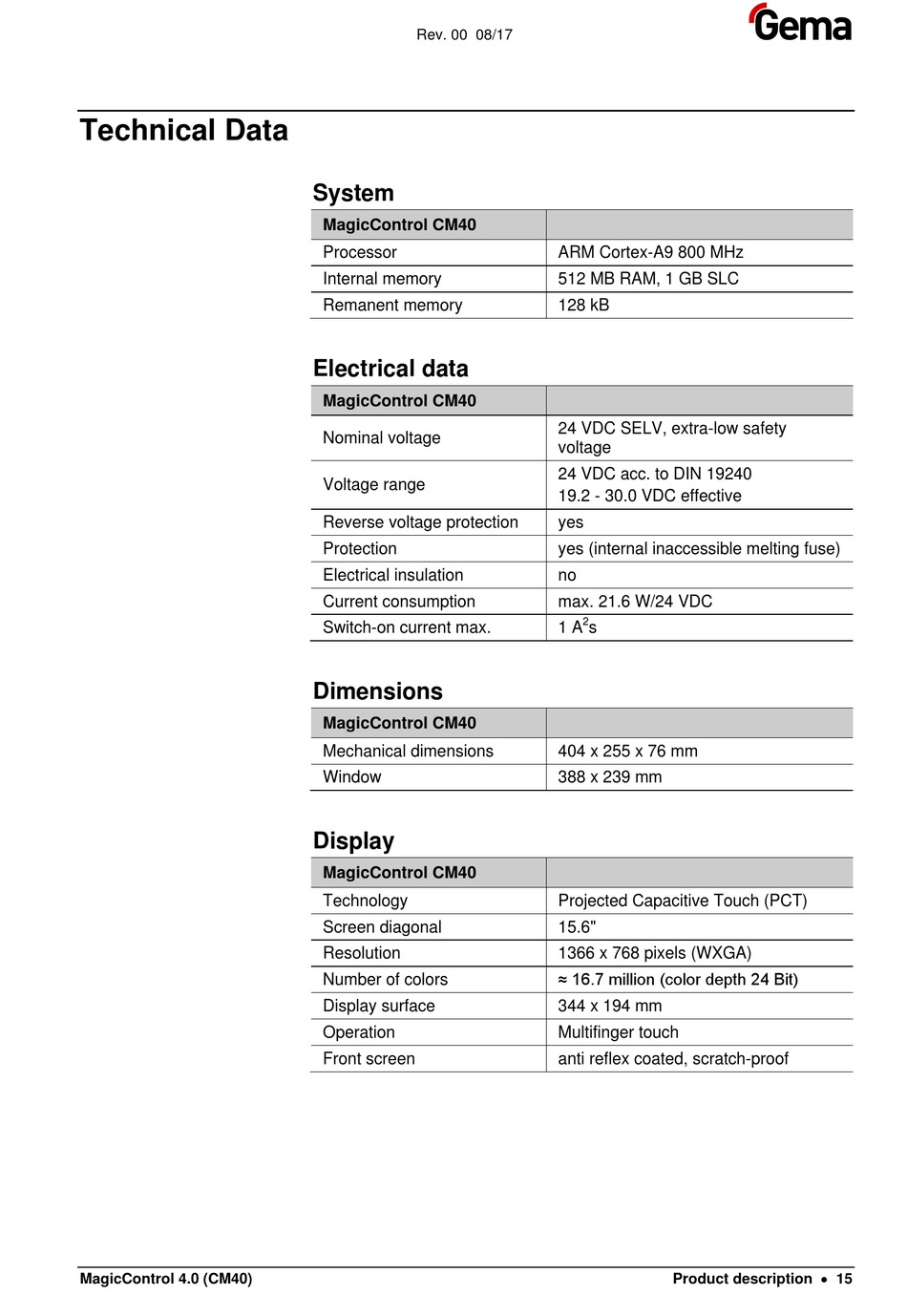

Technical Data
MagicControl 4.0 (CM40)
Rev. 00 08/17
System
MagicControl CM40
Processor
Internal memory
Remanent memory
Electrical data
MagicControl CM40
Nominal voltage
Voltage range
Reverse voltage protection
Protection
Electrical insulation
Current consumption
Switch-on current max.
Dimensions
MagicControl CM40
Mechanical dimensions
Window
Display
MagicControl CM40
Technology
Screen diagonal
Resolution
Number of colors
Display surface
Operation
Front screen
ARM Cortex-A9 800 MHz
512 MB RAM, 1 GB SLC
128 kB
24 VDC SELV, extra-low safety
voltage
24 VDC acc. to DIN 19240
19.2 - 30.0 VDC effective
yes
yes (internal inaccessible melting fuse)
no
max. 21.6 W/24 VDC
2
1 A
s
404 x 255 x 76 mm
388 x 239 mm
Projected Capacitive Touch (PCT)
15.6"
1366 x 768 pixels (WXGA)
≈ 16.7 million (color depth 24 Bit)
344 x 194 mm
Multifinger touch
anti reflex coated, scratch-proof
Product description 15
