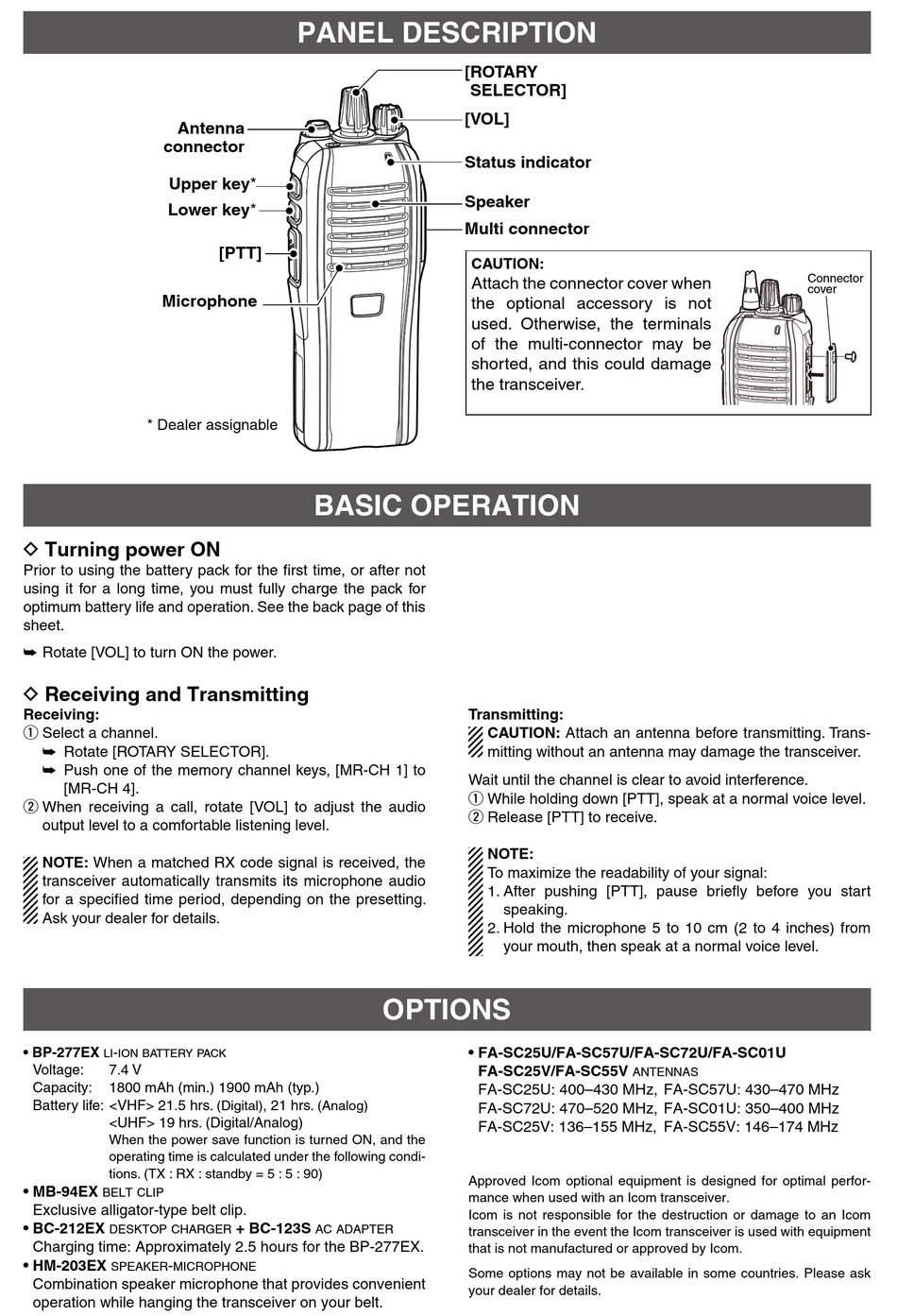

Panel Description; Basic Operation; Options - Icom IC-F3201DEX Basic Instructions

Antenna
connector
Upper key*
Lower key*
Microphone
* Dealer assignable
D Turning power ON
Prior to using the battery pack for the first time, or after not
using it for a long time, you must fully charge the pack for
optimum battery life and operation. See the back page of this
sheet.
Rotate [VOL] to turn ON the power.
➥
D Receiving and Transmitting
Receiving:
Select a channel.
q
Rotate [ROTARY SELECTOR].
➥
Push one of the memory channel keys, [MR-CH 1] to
➥
[MR-CH 4].
When receiving a call, rotate [VOL] to adjust the audio
w
output level to a comfortable listening level.
NOTE: When a matched RX code signal is received, the
transceiver automatically transmits its microphone audio
for a specified time period, depending on the presetting.
Ask your dealer for details.
• BP-277EX -
li ion battery pack
Voltage: 7.4 V
Capacity: 1800 mAh (min.) 1900 mAh (typ.)
Battery life: <VHF> 21.5 hrs.
<UHF> 19 hrs. (Digital/Analog)
When the power save function is turned ON, and the
operating time is calculated under the following condi-
tions. (TX : RX : standby = 5 : 5 : 90)
• MB-94EX
belt clip
Exclusive alligator-type belt clip.
• BC-212EX
desktop charger
Charging time: Approximately 2.5 hours for the BP-277EX.
• HM-203EX
-
speaker microphone
Combination speaker microphone that provides convenient
operation while hanging the transceiver on your belt.

PANEL DESCRIPTION

[PTT]

BASIC OPERATION

OPTIONS

, 21 hrs.
(Digital) (Analog)
+ BC-123S
ac adapter
[ ROTARY
SELECTOR]
[VOL]
Status indicator
Speaker
Multi connector
CAUTION:
Attach the connector cover when
the optional accessory is not
used. Otherwise, the terminals
of the multi-connector may be
shorted, and this could damage
the transceiver.
Transmitting:
CAUTION: Attach an antenna before transmitting. Trans-
mitting without an antenna may damage the transceiver.
Wait until the channel is clear to avoid interference.
While holding down [PTT], speak at a normal voice level.
q
Release [PTT] to receive.
w
NOTE:
To maximize the readability of your signal:
1. After pushing [PTT], pause briefly before you start
speaking.
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak at a normal voice level.
• FA-SC25U/FA-SC57U/FA-SC72U/FA-SC01U
FA-SC25V/FA-SC55V
antennas
FA-SC25U: 400–430 MHz, FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz, FA-SC01U: 350–400 MHz
FA-SC25V: 136–155 MHz, FA-SC55V: 146–174 MHz
Approved Icom optional equipment is designed for optimal perfor-
mance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equipment
that is not manufactured or approved by Icom.
Some options may not be available in some countries. Please ask
your dealer for details.
Connector
cover
