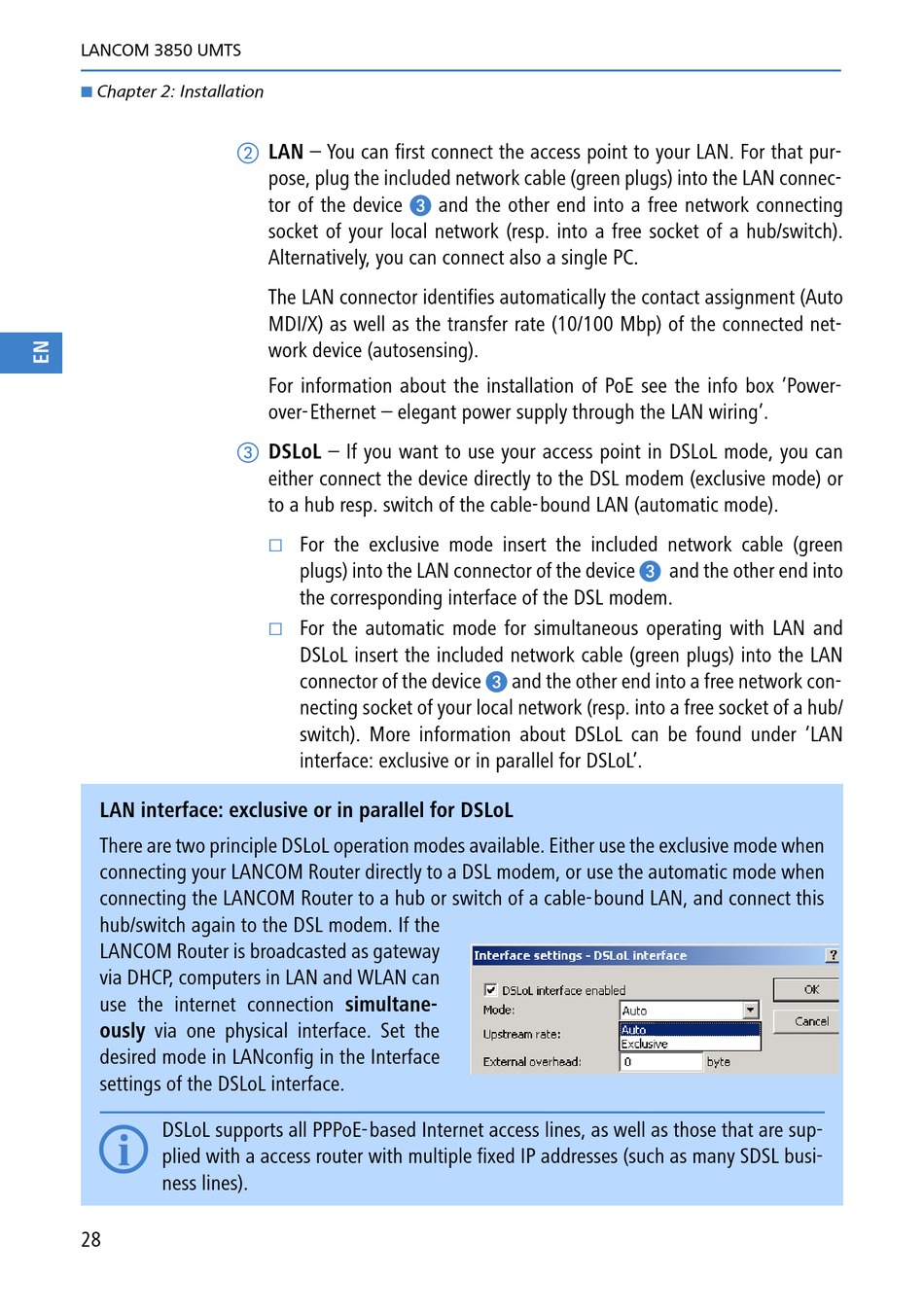

LANCOM 3850 UMTS
Chapter 2: Installation
LAN interface: exclusive or in parallel for DSLoL
There are two principle DSLoL operation modes available. Either use the exclusive mode when
connecting your LANCOM Router directly to a DSL modem, or use the automatic mode when
connecting the LANCOM Router to a hub or switch of a cable-bound LAN, and connect this
hub/switch again to the DSL modem. If the
LANCOM Router is broadcasted as gateway
via DHCP, computers in LAN and WLAN can
use the internet connection simultane-
ously via one physical interface. Set the
desired mode in LANconfig in the Interface
settings of the DSLoL interface.
DSLoL supports all PPPoE-based Internet access lines, as well as those that are sup-
plied with a access router with multiple fixed IP addresses (such as many SDSL busi-
ness lines).
28
LAN – You can first connect the access point to your LAN. For that pur-
pose, plug the included network cable (green plugs) into the LAN connec-
»
tor of the device
and the other end into a free network connecting
socket of your local network (resp. into a free socket of a hub/switch).
Alternatively, you can connect also a single PC.
The LAN connector identifies automatically the contact assignment (Auto
MDI/X) as well as the transfer rate (10/100 Mbp) of the connected net-
work device (autosensing).
For information about the installation of PoE see the info box 'Power-
over-Ethernet – elegant power supply through the LAN wiring'.
DSLoL – If you want to use your access point in DSLoL mode, you can
either connect the device directly to the DSL modem (exclusive mode) or
to a hub resp. switch of the cable-bound LAN (automatic mode).
For the exclusive mode insert the included network cable (green
plugs) into the LAN connector of the device
the corresponding interface of the DSL modem.
For the automatic mode for simultaneous operating with LAN and
DSLoL insert the included network cable (green plugs) into the LAN
connector of the device
necting socket of your local network (resp. into a free socket of a hub/
switch). More information about DSLoL can be found under 'LAN
interface: exclusive or in parallel for DSLoL'.
»
»
and the other end into a free network con-
and the other end into
