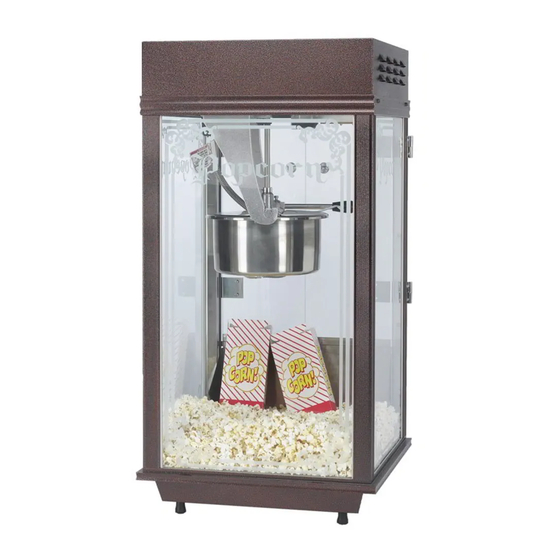

- Page 1 Instruction Manual Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Model 2212 Model 2213 Model 2214 Model 2214ST (reference image) (reference image) 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2018 Gold Medal Products Co. Part No. 67834...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST SAFETY PRECAUTIONS (continued) WARNING DO NOT allow direct contact of this equipment by the public when used in food service locations. Only personnel trained and experienced in the equipment operation may operate this equipment.
-
Page 4: Inspection Of Shipment
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). Manual Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1‐(800)‐543‐0862. Model Series Description Reference the Electrical Requirements section for power supply information. 2212: Mega Pop ‐ 12/14 oz. kettle, copper vein color, unit is equipped with a PowerOff Control feature 2213: Gay 90 Mega Pop – 12/14 oz. kettle 2214: Red Top‐12 ‐ 12/14 oz. kettle, red dome, unit is equipped with a PowerOff Control feature 2214ST: Pro Pop 12 Unimaxx – 12/14 oz. kettle, stainless steel top with LED lighted sign 2214JX: Export Red Top‐12 (100V Model) – 12/14 oz. kettle Items Included with this Unit Instruction Manual Flavacol... - Page 5 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level base. 3. Unit has 4 glide feet preinstalled at the factory (see image below). Install a Black Crutch Tip on each foot. Firmly push crutch tip over glide until it covers glide entirely. 4. The door knobs are shipped facing the inside of the machine. Re‐adjust knobs to face the outside of the machine. 5. Make sure kettle lead‐in cord is securely plugged into unit, and twisted to lock into the kettle receptacle. 6. After setup, unit should be cleaned prior to use (see Care and Cleaning section). Glide (pre‐installed Make sure kettle lead is plugged Black at the factory) in and twisted to lock into kettle Crutch Tip receptacle. Rubber Feet Installation Cabinet Light Bulb Installation General images shown for reference. gmpopcorn.com Page 5...
-
Page 6: Electrical Requirements
3. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect the outlet and correct if necessary. 4. DO NOT use a grounded to un‐grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com Page 6... -
Page 7: Controls And Their Functions
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST OPERATING INSTRUCTIONS Controls and Their Functions KETTLE HEAT SWITCH Two position, ON/OFF lighted rocker switch ‐ supplies power to the heating elements in the popping kettle. The green switch light ON indicates there is power to the kettle heating element. KETTLE MOTOR SWITCH Two position, ON/OFF switch ‐ supplies power to the kettle agitator motor. The Kettle Motor Switch MUST be ON at all times when there is popcorn (popped or un‐popped) in the kettle. LIGHTS/WARMER SWITCH Two position, ON/OFF switch ‐ supplies power to the popcorn sign (if equipped), interior cabinet light, and heat element for the corn pan. Light/Warmer Kettle Heat Switch Switch Label used on units with the PowerOff Control feature. Kettle Motor Switch POWEROFF CONTROL (if equipped) The PowerOff Control feature will automatically turn the kettle heat off after 15 minutes of idle time (no popcorn popped). The PowerOff Control will prevent the heat element and thermostat from cycling OFF‐ON if the Kettle Heat Switch is left on. This feature saves electrical power and extends the life of the kettle heating element and thermostat. ... -
Page 8: Popping Corn Instructions
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Popping Corn Instructions This section describes instructions for popping Salted Popcorn. The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in the kettle like other oils. Use only top quality, fresh popcorn from reputable suppliers. Popping Salted (Standard) Popcorn Raw Popcorn Charge: Use corn measure provided (ex: for 6 oz. Kettle, use 6 oz. corn) Recommended Oil Volume: Oil volume is approx. 30% of corn amount (ex: for 6 oz. corn, use 2 oz. oil) Flavacol (Salt) Amount: Use small Flavacol scoop provided Premeasure all ingredients (adjust as needed for desired taste), or for best results use Mega‐Pop ® premeasured popcorn and oil pouch made for your kettle size. 1. Turn all switches ON. 2. To determine when kettle is ready to pop corn (about 4 minutes), test pop three kernels of corn in one ounce (30 ml) of popping oil. When kernels pop, kettle is ready. 3. Lift kettle lid, pour in popcorn and Flavacol, then add oil; close lid. 4. When corn has finished popping, gently dump the popcorn. Popping Tip: On final batch, turn Kettle Heat Switch OFF just as lids are forced open by the popping corn (kettle has plenty of heat to finish popping). This helps eliminate smoke/odor from any oil residue remaining in kettle. -
Page 9: Care And Cleaning
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet. Always unplug the equipment before cleaning or servicing. - Page 10 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Daily Unit Cleaning Instructions 1. With the machine OFF, unplug the unit and allow it to cool before attempting to clean. 2. Make sure to clean all pans/accessories in order to sanitize them before each use. 3. Take a clean, SLIGHTLY damp cloth and wipe excess grease from the glass and cabinet. 4. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic doors. Use only non‐ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No. 2588). gmpopcorn.com Page 10...
-
Page 11: Troubleshooting
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Troubleshooting Issue Possible Cause Solution No Power to the Unit A. No Power to the Unit A. Make sure the unit’s power cord is plugged in. Kettle Does Not Heat A. Power to the Kettle A. Make sure kettle lead‐in cord is plugged in and twisted to lock into the kettle receptacle. B. Kettle Heat Switch B. Have a qualified service person check the voltage to and from the Kettle Heat Switch; if switch is defective, replace it. C. PowerOff Control (if C. Units with the PowerOff Control feature, kettle equipped) heat will automatically shut OFF after 15 minutes of idle time (no popcorn popped). - Page 12 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Agitator Assembly with a FLOATING Stir Rod Steps to Adjust Set Collars Gear Block Needle Bearing Step 1: Turn machine OFF, unplug unit, and (should set at least allow it to cool completely before attempting halfway into Gear Block) to adjust the agitator height. Step 2: Loosen the set screw in each set collar Agitator’s Spur Gear to be adjusted. (should set halfway up on Drive Motor Drive Motor Spur Gear) Spur Gear Step 3: With the kettle mounted in the popper, adjust the shaft so the Spur Gears are halfway engaged, and the Needle Bearing is at least...
-
Page 13: Maintenance Instructions
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 14: Ordering Spare Parts
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. (General images may be used in manual for reference only.) 2. Use only approved replacement parts when servicing this unit. 3. When ordering, please include part number, part name, and quantity needed. 4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241‐4807 Or, place orders by phone or online: Phone: (800) 543‐0862 (513) 769‐7676 Fax: (800) 542‐1496 (513) 769‐8500 E‐mail: info@gmpopcorn.com Web Page: gmpopcorn.com gmpopcorn.com Page 14... -
Page 15: Replacing Broken Glass
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front and Side Glass: 30” x 16 11/16” x 1/8” (3 Pieces) 1. Turn machine OFF, unplug unit and allow it to cool before attempting to replace glass. 2. Carefully remove all loose pieces of broken glass. 3. Lift out the Corn Pan (see Figure A). 1. Locate the Glass Retainer Strips holding in the glass panel, remove the screws to unfasten the retainers (see Figure A). Carefully remove the rest of the broken glass. Remove all rigid glass channels from around glass to be replaced; set channels aside for reuse. To remove the Glass Strip with the Cover: Bend out the tabs at bottom and top of Glass Strip (see Figure A). Pinch in the edge of the Glass Strip Cover just enough to rotate the cover out of the Glass Strip, then remove (see Figure B). Remove Glass Strip. When reinstalling, ensure wiring is on top of the Glass Strip (as seen in Figure C). 4. Apply decals (if desired) to new glass panel. 5. - Page 16 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST 12/14 oz. Kettle Assy. (58220) – Agitator Assy. Overall Kettle 58220 Agitator Assembly 58220 Complete Agitator Assembly (Includes Lids) *See Parts List note. 19, 20 See Kettle Bottom Assy. Complete Kettle Assembly Complete Agitator Assembly (Includes Lids) Part Number Item Part Description 58220 1/4‐20 X 1.25 THUMB SCREW 61068 8‐32 x 1/2 FH MS PH 106064 SHELL & KETTLE BLOCK 61013 12/14 OZ LID&AGITATOR ASSY (Complete Assy.)
- Page 17 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST 12/14 oz. Kettle Assembly (58220) – Kettle Bottom View Kettle Bottom Assembly 58220 Element View 58220 Kettle Bottom Assembly Element View Top Lock Nut ‐ Fastens each thermostat and ground. Install Lock Nut with triangle in UP position (as shown). ONE TIME USE ONLY, REPLACE NUT if removed. Thermostat Welded Stud Lock Nut View Part Number Item Part Description 58220 12/14 OZ. KETTLE BOTTOM ASSEMBLY...
- Page 18 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Cabinet Exterior – Front View For lighted sign parts (if equipped), see Lighted Sign section. For Glass Panels, Model 2212 see Replacing See Kettle Glass section. Assembly Section 5, 6 9, 10 Model 2214 (reference image) Model 2214ST (reference image) General images shown for parts reference only (features vary by model). Model 2213 Part Number Item Part Description 2213 2212 2214 2214ST...
- Page 19 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Cabinet Exterior – Operator Side View 1, 2 *Complete Door Hardware Kit (See next page for individual component breakdown). 11** **CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order General image shown for parts reference only. to avoid a hazard. Part Number Item Part Description 2213 2212 2214 2214ST 2214JX MAGNETIC CATCH MT BRKT 47559 41340 41340 41340...
- Page 20 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Door Hardware Kits – Individual Component Breakdown Complete Left Hand Door Complete Right Hand Door Hardware Kit (P/N 47054) Hardware Kit (P/N 47055) (contains all parts shown above) (contains all parts shown above) Part Number Item Part Description 47054 47055 DOOR KNOB 41013 41013 8‐32 X ½ SCREWS PH PAN W/SEMS 47124 47124 ACORN NUT #8‐32 47702 47702 TEE BOLT 75267 75267 MALE HINGE SHORT LEFT...
- Page 21 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Cabinet Interior View – Controls – Parts Breakdown 9*, 10 *See Parts List note. See Kettle Assembly section for Kettle parts breakdown. General images shown for parts reference only. Part Number Item Part Description 2213 2212 2214 2214ST 2214JX SWITCH BOX 17473 17473 17473 17473 17473 SWITCH BOX LABEL 48508 48508...
- Page 22 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Cabinet Interior – Corn Pan View 2452 3, 2 1, 2 3, 2 4, 2, 5 General image shown for parts reference only. Part Number Item Part Description All Models GLASS STRIP (glass retainer strip) 77526 8‐32 X 3/4 UNSL NON‐IND (fastens retainer strips) 39008 GLASS STRIP (glass retainer strip) 77525 GLASS STRIP (glass retainer strip behind corner 77529 post wire cover) GLASS STRIP COVER (corner post wire cover) 77838 BOTTOM CORN PAN ASSY 120V (Complete Assembly, includes Bottom Corn Pan, Conduit 77522 Cover, Female and Male Cordsets)
- Page 23 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Dome Interior View Molded Receptacle used on lighted sign models only (Molded Plug shown on Lighted Sign view.) Boost Transformer (Model 2214JX only) See Cabinet Assembly Interior PowerOff Control (Available on select View for Controls. models only.) General images shown for parts reference only (features vary by model). Part Number Item Part Description 2213 2212 2214 2214ST 2214JX LED REPLACEMENT NO PLATE 100544 100544 100544 100544 100544 POWER SUPPLY 24VDC 20W 55394 55394...
- Page 24 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Lighted Sign Assembly (if equipped) Molded Plug seen here For Power Supply, see (Molded Receptacle shown Dome Interior View. on Dome Interior View.) Front Sign View Interior View ‐ LED Strip General lighting images shown as reference for units with lighted sign option. Part Number Item Part Description 2214ST POPCORN SIGN 111876 DOME REFLECTOR ASSY (assembly includes 41112N parts listed below) MOUNT, FLOURESCENT OR LED 49428 8‐32 PAN HD (Mounts the LED Strip) 74141 LED STRIP COOL WHITE 55379 MOLDED PLUG 47726 Accessories...
-
Page 25: Wiring Diagram
Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Wiring Diagram Models 2212, 2214 gmpopcorn.com Page 25... - Page 26 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Models 2213, 2214ST gmpopcorn.com Page 26...
- Page 27 Pro Pop 12/14 oz. Poppers Model Series: 2212, 2213, 2214, and 2214ST Models 2214JX gmpopcorn.com Page 27...
-
