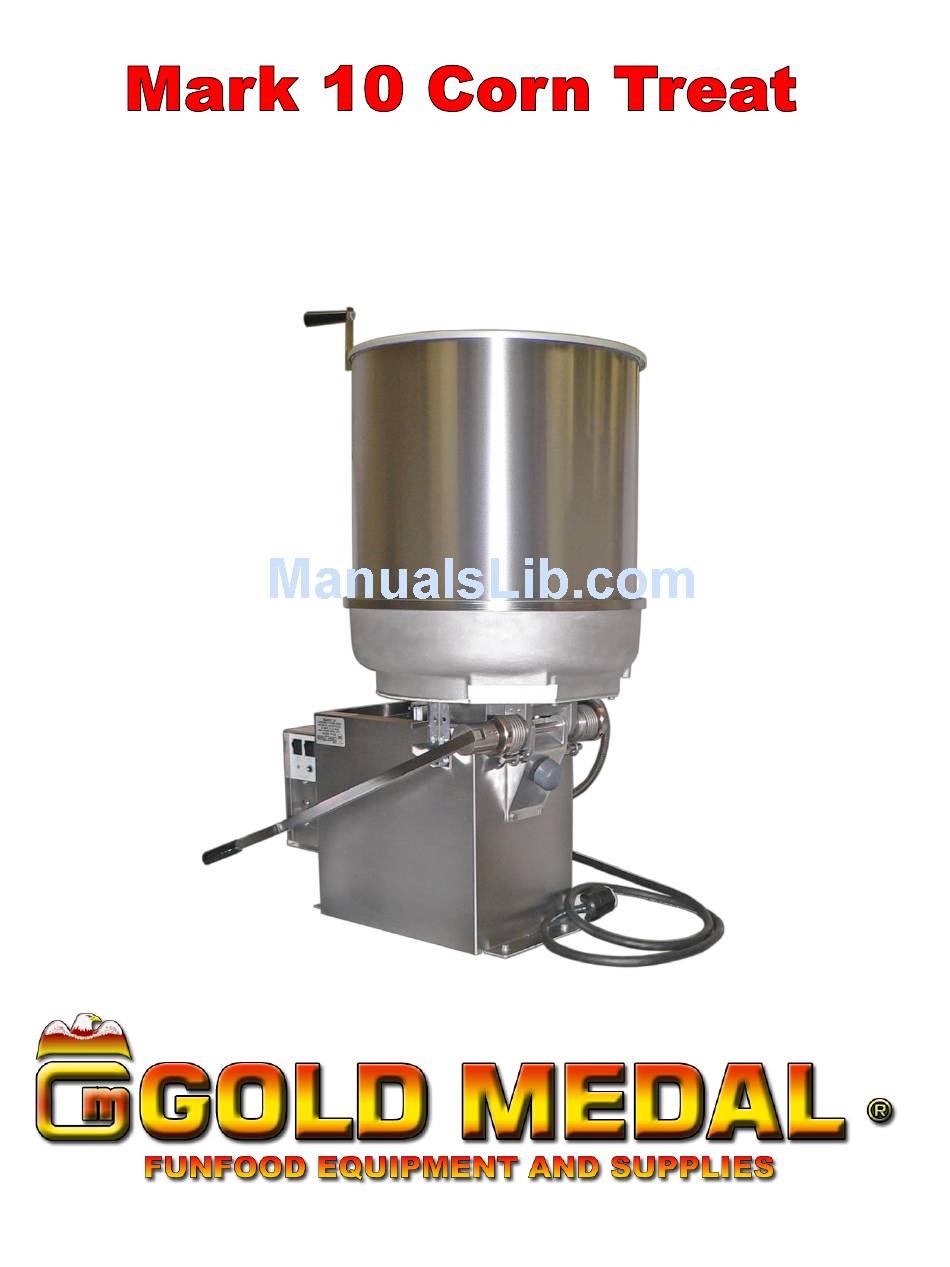

- Page 1 Part No. 78017 Instruction Manual Models: 2410E & 2411E Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_010914... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.

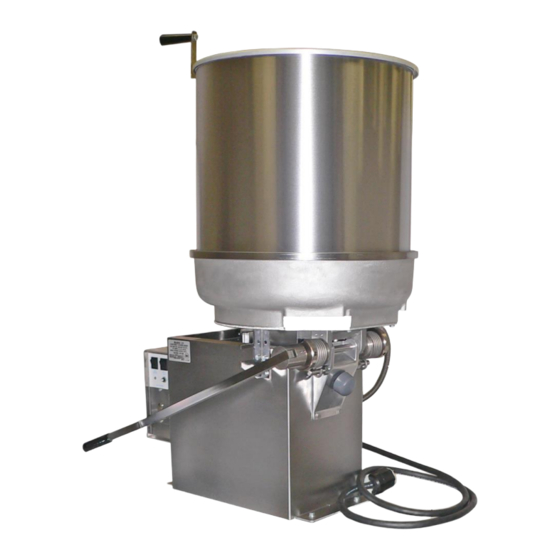

- Page 4 Left Hand Mark 10 (2411E) on 2622 truck shown Electrical Specifications: Mark 10 (2410E - RH, 2411E - LH) - 120/208v or 120/230v 4 wire (2 hot, 1 neutral, 1 ground) 60 5520 watts 30 amp plug & receptacle ( NEMA L14-30P & L14-30R ) ...
-
Page 5: Installation
2410E and 2411E INSTALLATION CHECKING SHIPMENT Unpack the shipping crate and check thoroughly for any damage which may have occurred in transit. Any claims should be filed immediately with the transportation company. ELECTRICAL REQUIREMENTS Voltage for the 2410E AND 2411E is 208 volt, 3-WIRE ( 2 HOT, 1 NEUTRAL) 60 cycle single phase. A wall receptacle is supplied with the machine. -
Page 6: Controls And Their Function
2410E and 2411E CONTROLS AND THEIR FUNCTION HEAT/MOTOR SWITCH This rocker switch in the “ON” position energizes the heating elements in the bottom of the kettle, and also operates the motor for 15 seconds out of every minute. MOTOR ONLY SWITCH With this rocker switch in the “ON”... - Page 7 Turn the Heat/Motor Switch ON (do not turn on the Motor Only Switch). Add (2) 22 ounce packages of Gold Medal Caramel Corn Mix (Item No. 2094), 8 cups of granulated sugar (brown or white), and 16-22 ounces of water (add water last).
-
Page 8: Care And Cleaning
2410E and 2411E Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. Always unplug the equipment before cleaning or servicing. 025_020314 WARNING To avoid serious burns, DO NOT touch the kettle while it is hot! 028_020314 Good sanitation practice demands that all food preparation equipment be cleaned regularly (only use non- toxic, food grade cleaners). - Page 9 Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine.
-
Page 10: Maintenance Instructions
2410E and 2411E MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. Keep cord and plug off the ground and away from moisture. - Page 11 2410E and 2411E NEW PADDLE & HUB SEAL KIT INSTALLATION and Kettle Shaft Maintenance 1. Unscrew the wing bolt (Mixing Paddle Lock Stud Assy.) and remove the mix paddles. 2. Remove the old hub seal assembly. 3. Clean the area around the center hub. Clean up all food and carbon residue. Note: For units manufactured prior to Jan.
-
Page 12: Ordering Spare Parts
3. Please include your model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 13 2410E and 2411E Corn Treat System Controller Circuit Breaker, 15 Switch, Rocker DPDT AMP p/n 47364 Lighted (2) p/n 48616 Terminal Block p/n 42006 Buzzer Signal p/n 46118 Potentiometer, 500 Ohm p/n 46326 Resistor, 240 k, ½ W (front, “On”) p/n 48689 Resistor, 750 k, ½...
- Page 14 2410E and 2411E Mixing Drum Mark Drum Seal Mark 10 10 p/n 48833 p/n 48834 (not visible, between Drum & Kettle) Retaining Ring Mark 10 p/n 48835 2 Position Bracket p/n 46153 Tilt Lever, Mark 10 Drive Coupling CTC p/n 46488...
- Page 15 2410E and 2411E Mixing Drum Mark 10 p/n 48833 Left Dump Shaft Weldment p/n 48881 Collar (2) p/n 74661 Right Dump Shaft Weldment p/n 48841 Hub p/n 48839 LG Spacer (Customer Spacer, Large (Dump Side) p/n 74690 Side) p/n 74659 Torsion Spring (2) p/n 74660 Spacer (4) (beneath...
- Page 16 2410E and 2411E Blending Strip RTD Heat Sensor p/n 46702 p/n 46299 Agitator Shaft, Mark 10 p/n 48825 Mix Paddle, Mark 10 (2) p/n 46475 Mix Paddle Lock Stud Assy. (2) p/n 46203 Motor & Agit Mount H.D. Motor 1/4 HP...
- Page 17 2410E and 2411E Kettle Bottom 10-24 x 1 in Stud w/Nuts (16) p/n 46327 Heat Element Clamp RTD Heat Sensor Mark 10 (8) p/n 46492 p/n 46299 Heat Element 120V, 2700W p/n 46491 Thermostat, Kettle L-510 (2) p/n 82219 Casting, Mark...
- Page 18 2410E and 2411E ELECTRICAL SCHEMATIC MODELS 2410E & 2411E MODEL # 2410E AND 2411E...
-
