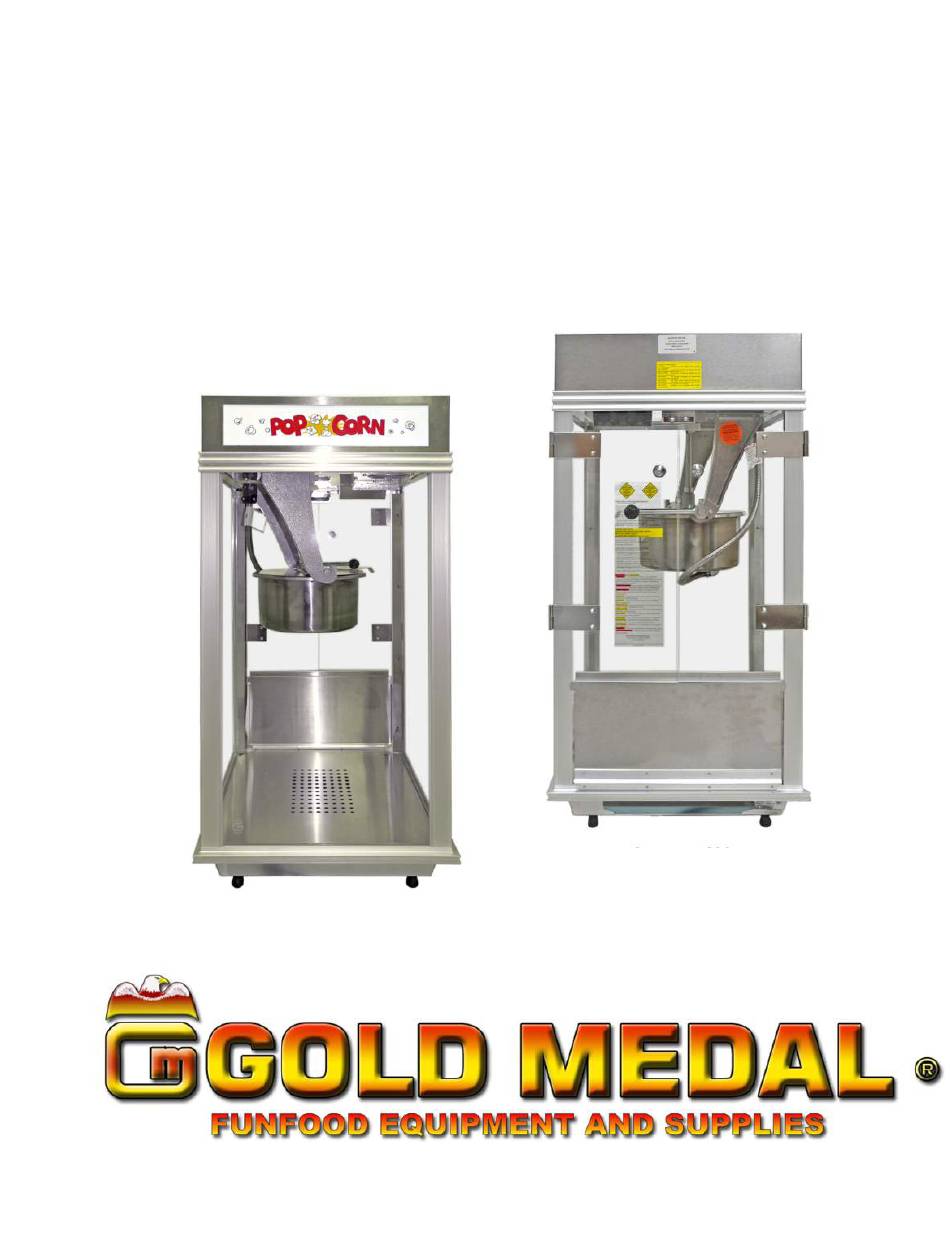

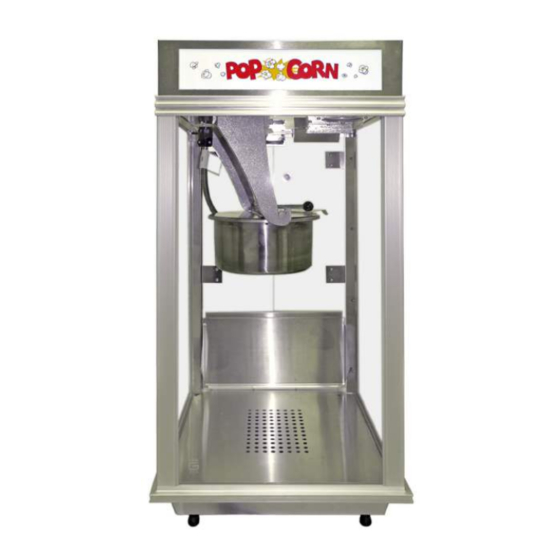

- Page 1 Part No. 67834 Pro Pop oz. Unimaxx 12/14 Model No. 2212, 2213, 2214, and 2214ST Instruction Manual Operator Side Model 2214ST Shown Customer Side (see page 4 for other Models covered) Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Models Included In This Manual
12/14 oz. Unimaxx With the exception of the lighted dome on the Model 2214ST, all service parts are common between models 2212, 2213, 2214, Model 2213 and 2214ST Gay 90s Mega Pop 12/14 oz. Unimaxx Models #2212, 2213, 2214, 2214ST... -
Page 5: Installation Instructions
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 6: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. - Page 7 Turns on all of the lights, interior, and dome on your popcorn machine, and operates the element for the heated corn pan. KETTLE HEAT SWITCH Operates the heating elements in the popping kettle. KETTLE MOTOR SWITCH Operates the kettle agitator motor. Light/Warmer Kettle Motor Kettle Heat Switch Switch Switch Models #2212, 2213, 2214, 2214ST...
- Page 8 5. Repeat cycle starting with Item #3; always pop 3-5 batches for best popcorn. “KETTLE HEAT” “KETTLE MOTOR” When you are finished popping, make sure “OFF”. switches are turned NEVER LEAVE THE KETTLE HEAT ON WHEN YOU ARE NOT POPPING CORN. Models #2212, 2213, 2214, 2214ST...
-
Page 9: Care And Cleaning
2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 10 DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic doors/panels. Use only non-ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No.
-
Page 11: Maintenance Instructions
No user serviceable parts inside. Refer servicing to qualified service personnel. 011_051514 CAUTION THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. 027_010914 Models #2212, 2213, 2214, 2214ST... -
Page 12: Troubleshooting
1/32” (use a dime). Loosen the set screw in the collars above and below the crossbar and adjust the agitator shaft as necessary. Then re-tighten the set screws in the collars. Models #2212, 2213, 2214, 2214ST... -
Page 13: Ordering Spare Parts
5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online: Phone: (800) 543-0862 (513) 769-7676 Fax: (800) 542-1496 (513) 769-8500 E-mail: info@gmpopcorn.com Web Page: gmpopcorn.com Models #2212, 2213, 2214, 2214ST... -
Page 14: Cabinet Breakdown
Bottom Corn Pan Assy. 120V p/n 77522 Drop Panel p/n 77509 Lead-In Cord 15 Amp Plug p/n 87085 Glide (4) p/n 47328 Old Maid Pan Crutch Tip (4) p/n 47003 p/n 49123 Models #2212, 2213, 2214, 2214ST... - Page 15 47054 p/n 47055 Door Hardware Kits Cabinet Interior – Ceiling Components 47047 41671 41671 Switch, Lighted Rocker Gr (3) p/n 42798 Rocker Switch Box 3 Hole p/n 48507 47047 Reflector Flood 65W p/n 41671 Models #2212, 2213, 2214, 2214ST...
- Page 16 Complete Bottom Corn Pan Assembly – Includes all items shown below (including Female Cordset p/n 61020). Male Cordset p/n 61020 Cover, Corn Pan Conduit p/n 47653 Heat Element 115V, p/n 44026 Female Cordset p/n 61020 Models #2212, 2213, 2214, 2214ST...
- Page 17 Pro Pop 12 Unimaxx Dome Assembly (2214ST only) Dome Reflector Assembly, 120V p/n 41112N LED Strip p/n 55379 Popcorn Sign p/n 111876 Molded Plug Power Supply p/n 47726 p/n 55394 Models #2212, 2213, 2214, 2214ST...
- Page 18 12/14 oz. Kettle Assembly – 58220 Agitator Assembly (Includes Lids) Dump Handle Assembly (Includes Knob) 32 31 Complete Agitator Assembly (Includes Lids) Complete Kettle Bottom Assembly includes Kettle Shell and Kettle Lead Assembly Heater View Models #2212, 2213, 2214, 2214ST...
- Page 19 61012 KETTLE INTEGRAL HEATER 58221 482°F THERMOSTAT 76708 (Two 6-32 X 3/16 screws included) 550°F THERMOSTAT 77108 (Two 6-32 X 3/16 screws included) 8-32 TOP LOCK NUT 67943 THERMOSTAT SHUNT BAR 47193 SHUNT BAR 77879 Models #2212, 2213, 2214, 2214ST...
- Page 20 Kettle Drive Motor, 120V p/n 47038 Kettle Receptacle 15A Twist Lock p/n 49330 Terminal Block, 8 Terminal p/n 47208 Rocker Switch Box (3 Hole) p/n 48507 Switch, Lighted Rocker Gr (3) p/n 42798 Motor Plate Assembly Models #2212, 2213, 2214, 2214ST...
-
Page 21: Electrical Schematic
Pro Pop 12 Unimaxx Electrical Schematic Models #2212, 2213, 2214, 2214ST... -
Page 22: Warranty
© 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
