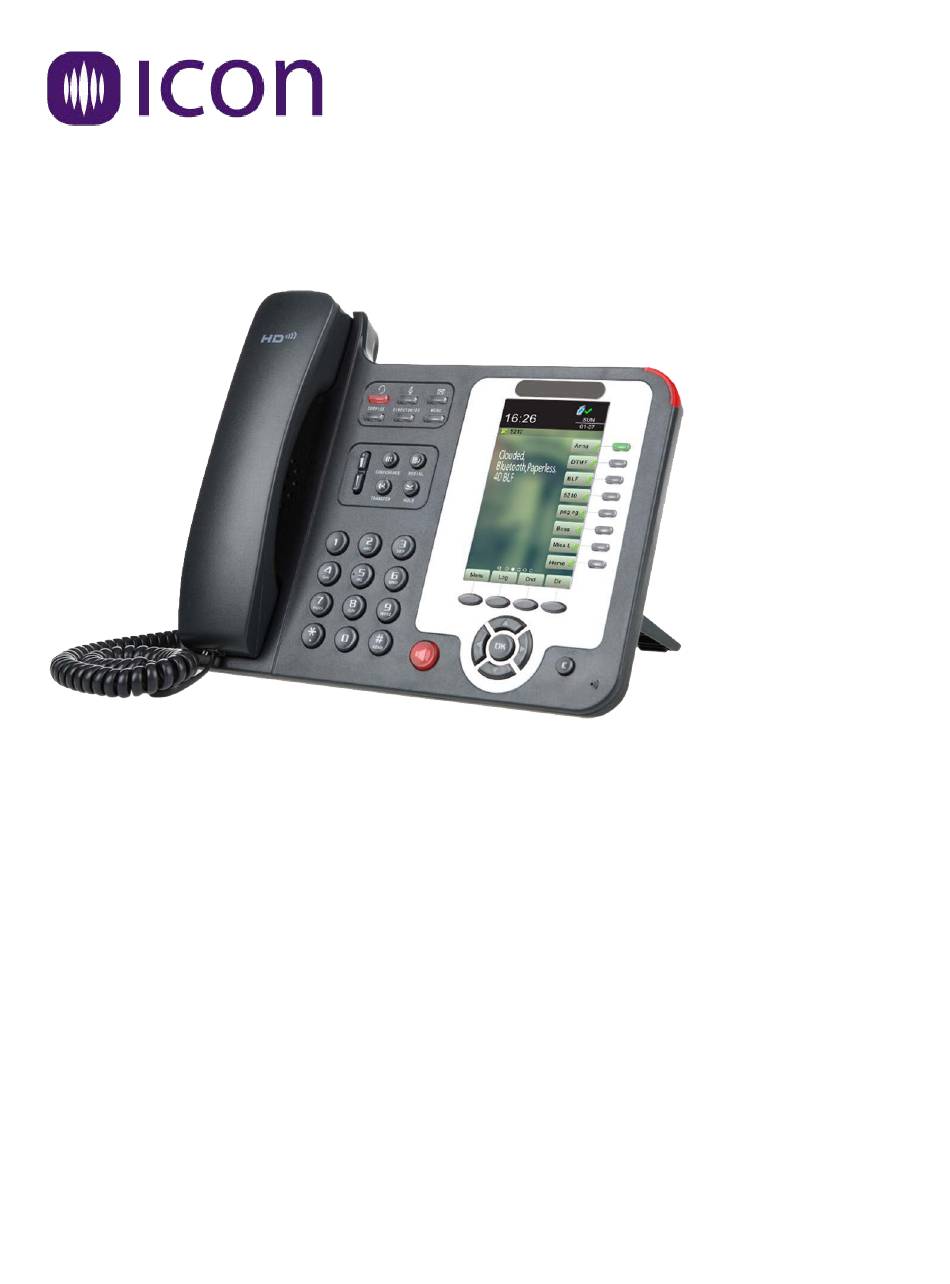

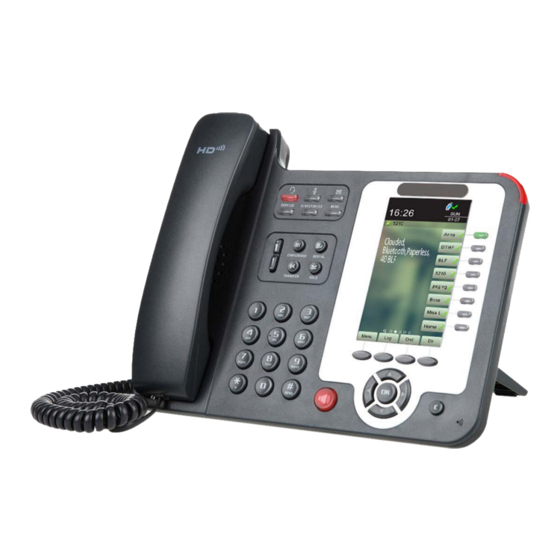

- Page 1 GS620 IP Phone Quick Reference Guide...
-
Page 2: Table Of Contents
GS620 IP Phone Quick Reference Guide Contents Getting Started ............................3 About................................. 3 Technical Specifications ..........................3 Connecting Your Phone......................... 4 Packing List ..............................4 Connecting Your Phone ..........................4 Adjusting the Angle of Your Phone ......................5 Phone Overview ............................ 6 Upper Housing ............................ -
Page 3: Getting Started
GS620 IP Phone Quick Reference Guide Getting Started About The GS620 is a feature rich IP telephone that works with the ICON Cloud ICONnect hosted communications platform as well as other manufacturer’s systems that support connection of a SIP terminals. Technical Specifications... -
Page 4: Connecting Your Phone
GS620 IP Phone Quick Reference Guide Connecting Your Phone Your telephone will be preconfigured to connect to ICON Cloud’s ICONnect hosted communications platform. This section describes the connection. Packing List 1 - IP Phone 1 - Handset 1 - Handset Cord... -
Page 5: Adjusting The Angle Of Your Phone
GS620 IP Phone Quick Reference Guide Adjusting the Angle of Your Phone Press the two tabs on either side of the base to adjust the GS620 to the desired angle. Page | 5 www.iconcloud.com... -
Page 6: Phone Overview
GS620 IP Phone Quick Reference Guide Phone Overview Upper Housing Buttons Description Headset button: Toggles the headset on or off Red indicates the feature is enabled. Mute button: Toggles the Mute feature on or off. Red indicates the feature is enabled. - Page 7 GS620 IP Phone Quick Reference Guide Buttons Description Volume button: Controls the volume and other settings. Conference Conference button: Connect calling / called party to the conference Redial Redial button: To Redial the last number. Transfer Transfer button: Transfer a call to another extension or number.
-
Page 8: Lower Housing
GS620 IP Phone Quick Reference Guide Buttons Description Red, steady: Missed Calls, or phone busy; Microphone Hands free transmit audio Line expansion Maximum support 6 ESM32 line expansion module (the total of 192 module programmable buttons). Lower Housing Buttons Description Adjustable Stand Multiple angle stand with built-in wall mount bracket. -
Page 9: Lcd Screen
GS620 IP Phone Quick Reference Guide 3.5 mm Headset Jack Not included with GS620 Power Connect External Power Supply. Not required for POE LAN connections. Headset Headset connection port. Handset Handset connection port. EXT Port Connector for optional EDM expansion module. - Page 10 GS620 IP Phone Quick Reference Guide Extension Status Displays the extension number and shows the current status on hook / dialing / ringing / off hook. Call Activity Displays information about the active call including caller ID. Missed Calls Shows the number of missed calls.
-
Page 11: Operation
GS620 IP Phone Quick Reference Guide Operation Making a Call Lift the handset or press the Speaker key or press the Headset key. When you hear dial tone, the first outside line LED will light. You can stay on this line or choose another line to make the call. -
Page 12: Transfer A Call (Supervised Transfer)
GS620 IP Phone Quick Reference Guide Press the TRANSFER button or softkey. Press the BLIND softkey. Enter the number to which you want to transfer the call. Press #, or press SEND, or wait five seconds. The call is transferred.
