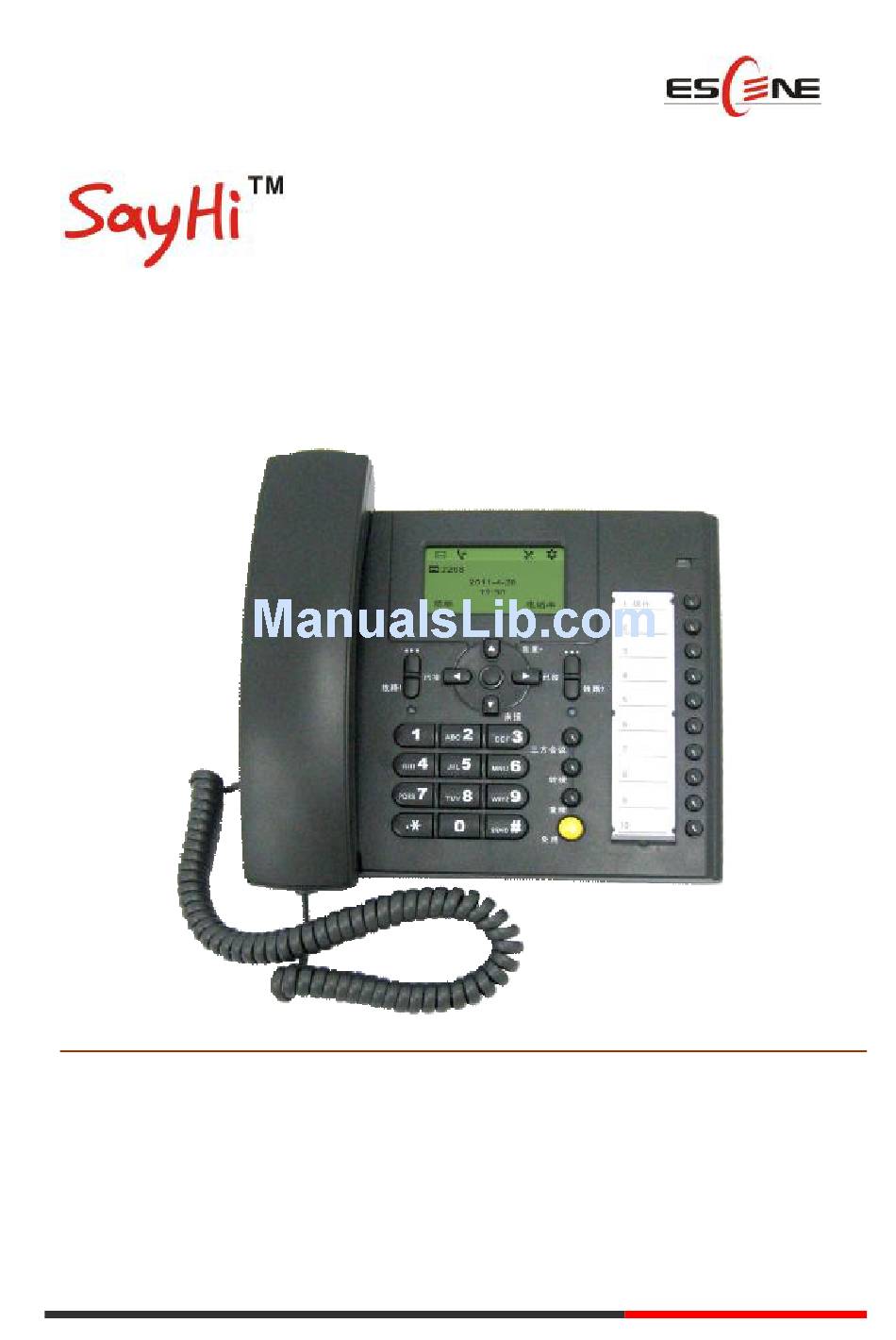

  • Page 1 US102 IP Phone User Manual www.escene.hk Escene Communication...

  • Page 2: Table Of Contents

    Group ....................错误！未定义书签。 Contact .................... 错误！未定义书签。 BanList.................... 错误！未定义书签。 Enterprise Phonebook ..............错误！未定义书签。 Advance....................错误！未定义书签。 Phone Setting .................. 错误！未定义书签。 VLAN Setting ................. 错误！未定义书签。 VPN Setting ..................错误！未定义书签。 Dial Plan setting................错误！未定义书签。 Global SIP..................错误！未定义书签。 Phone Maintenance................. 错误！未定义书签。 Log ....................错误！未定义书签。 www.escene.hk Escene Communication...
  • Page 3 Default Setting ................错误！未定义书签。 Auto Provision ................错误！未定义书签。 FTP Upgrade ................... 错误！未定义书签。 TFTP Upgrade................. 错误！未定义书签。 HTTP Upgrade ................错误！未定义书签。 Reboot ..................... 错误！未定义书签。 Phone Status.................... 错误！未定义书签。 System Info..................... 错误！未定义书签。 About ...................... 错误！未定义书签。 Appendix：..........................37 www.escene.hk Escene Communication...

  • Page 4: Getting Started

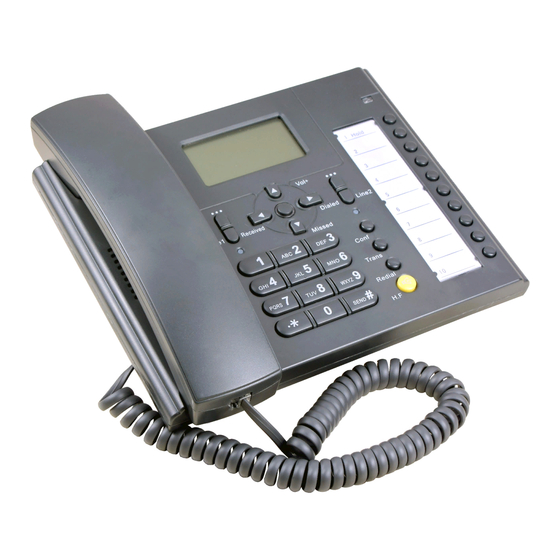

    1. Getting Started About US102 is a popular type IP Phone in Sayhi phones series, with modern design, functional, practical and voice clarity characteristics. It accomplished the powerful telephony features by cooperating with the communications platform, such as call transfer, hotline, third-party conferences, voice mail, interruption-free, etc.
  • Page 5 US102 IPPhone Network HTTP, BOOTP, FTP, TFTP, IEEE 802.1Q, *IEEE 802.1X Protocol G.723、G.729 A 、G.711 A/U G.722 Codec TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms) Network 2*RJ45 10/100M Ethernet interfaces(LAN/PC) IP Assignment: Static IP or DHCP VPN(L2TP) ,VLAN/QoS DNS Clients (Primary and Secondary)

  • Page 6: Connecting Your Phone

    Your system administrator will likely connect your new SayHi US102IP Phone to the corporate IP telephony network. If that is not the case, refer to the graphic and table below to connect your phone. 1) Open the box of US102 IP Phone，carefully check the packing list as follow: Item Counts...

  • Page 7: Phone Overview

    US102 IPPhone 3. Phone overview Understanding Buttons and Hardware You can identify buttons and hardware on your SayHi US102 from figure 3.1. Figure 3.1 SayHi US102 Item Description LCD Screem 128*64 characters, grayscale LCD with background light www.escene.hk Escene Communication...
  • Page 8 US102 IPPhone Menu button: which buttom make you enter the menu setting interface Line button: US102 have two account ,one account have a corresponding line button .If the call coming or the line is used, the light will become red.

  • Page 9: Understanding Phone Screen Features

    US102 IPPhone Understanding Phone Screen Features This is what your main phone screen might look like: Figure 3.3 SayHi US102 Phone LCD ○ ○ ○ Screen displays Functions Date Show current date（You can set with different sources，the more 7. Web Setting) Time Show current time（You can set with different sources，the more...

  • Page 10: Basic Call Handling

    Note: The bold type of the following text in table signifies the phone's button. Placing a Call Here are some easy ways to place a call on SayHi US102 IP Phone: If you want to... Then…...

  • Page 11: Answering A Call

    US102 IPPhone Answering a Call You can answer a call by simply lifting the handset, or you can use other options if they are available on SayHi US102. If you want to... Then... --1) Your phone ring; Answer with --Pick up the handset...

  • Page 12: Using Hold And Resume (Switch Calling Line)

    US102 IPPhone Headset Using Hold and Resume (Switch Calling Line) You can hold and resume calls. If you want to... Then... Put a call on hold Press HOLD button Resume a call Press HOLD button Tips • Engaging the Hold feature typically generates music or a beeping tone.

  • Page 13: 3-Way Conference

    US102 IPPhone --2) All enabled line on the phone would changes to status. Press MENU or OK button > “Functions” > “DND” >(select line) Disable DND “Disable” 3-way Conference You can establish a three-party conference, during the conversation three phone parties can communicate with each other.

  • Page 14: Advanced Call Handling

    --2) Use the navigation keys to view the call record information. Please refer to the previous part 4.Basic call handing – Placing a call. Dial from a call log Tips • Each call log store up to 20 entries on SayHi US102 IP phone. www.escene.cn Escene Communications...

  • Page 15: Keypad Instruction

    SIP Account Settings SayHi US102 series IP phone make calls based on sip accounts, sayHi US102 series IP phones can support 2 independent SIP account, Each account can be configured to different SIP server. If you want to…...

  • Page 16: Network Setting

    US102 IPPhone unavailable ,use the SIP server -Refresh time: Registration refresh interval, the minimum value is 20 The default value is 3600. -Con type: which protocol the phone used to send the voip packets -Amount of used lines: Maximum line are allowed to used --5) Set up the above parameters, select “Submit changes”...

  • Page 17: Customizing Rings And Volume

    US102 IPPhone Customizing Rings and Volume If you want to… Then… --1) Select “Settings” > “Phone settings” > “Ring type”; Change the ring tone --2) Press navigation to Select ring tone --1) Select “Settings” > “Phone settings” > “Volume settings”...

  • Page 18: Web Settings

    US102 IPPhone 7. Web Settings We can configure IP Phone more handy through web setting. Press OK button on the keypad of the phone to enter the status page and find out the IP address of IP phone. Enter it (for example http://192.168.0.200)
  • Page 19 US102 IPPhone After config the network parameter,press next,then you can config sip account for the phone. Press Finish,the base configuration of the phone is complete,now you can use the phone to call with sip. www.escene.hk Escene Communication...

  • Page 20: Network

    US102 IPPhone Network You can config the network parameters for the phone on the web page. Choose network,you will find the following parameters: Field Description DHCP Config the phone get ip info from DHCP server IP Address Config the ip manual for phone...

  • Page 21: Sip Account

    US102 IPPhone HTTP Port The default web port is 80,if you change it(for example change it to88), You must use IP and Web port to login the web page(for example http://192.168.0.200:88). It will take effect on next reboot. Telnet Port...

  • Page 22: Programmable Keys

    US102 IPPhone Account Mode You can choose VOIP Display Name It is showed as Caller ID when making a phone call Username It is a username provide by SIP Server Authenticate Name It is authenticated ID for authentication Password It is a password provide by SIP Server...

  • Page 23: Audio

    US102 IPPhone Audio The IP phone supports the following voice codecs: G.722, G.711A, G.711U, G.723, and G.729A. You can enable/disable the desired codecs via Web interface. Please contact your system administrator for more details about the codecs. To enable/disable the codecs: Choose Audio->...

  • Page 24: Group

    US102 IPPhone PhoneBook Group You can add, edit and delete group in a phone book on web page of US102. 1) Click “PhoneBook” > “Group”, If you want to add a Group, you just ought to click ‘Add Group’ .

  • Page 25: Banlist

    SIP account. BanList You can add, edit and delete banlist in a phone book on web page of US102.. 1) Click “PhoneBook” > “BanList”, If you want to add a BanList, you just ought to click ‘Add BanList’.

  • Page 26: Advance

    US102 IPPhone If the sip server no add some function to hold this option ,this option can be userd. Advance Phone Setting You can use phone setting to set the time,qos,port Mirroring for the phone. www.escene.hk Escene Communication...
  • Page 27 US102 IPPhone When used Phone Setting option,you can set several parameters as follow: Phone Setting DTMF The DTMF transmitted mode,include RFC 2833,Inband,SIP Info BackLight The backlight of the phone LCD Set Time Mode mode time phone,include SNTP/SIP Server/PSTN/Manual Daylight Saving...

  • Page 28: Vlan Setting

    US102 IPPhone VLAN Setting You can add the phone and PC to different VLAN used VLAN Setting option. When used VLAN Setting option,you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable vlan for phone and pc...

  • Page 29: Dial Plan Setting

    US102 IPPhone VPN Type: There is one choose you can choice. VPN Server Addr VPN server'ip VPN User Name VPN iser's name VPN User Name A password be userd foe authentication Dial Plan setting If you want to setup a dial plan, you can click "Dial Plan".

  • Page 30: Global Sip

    US102 IPPhone The ip of a phone which you want to call prefix The number which you need to press actually if you want to call the phone Called Insert There have two option, Enable or Disable. Number Position Which position you want insert the number...

  • Page 31: Phone Maintenance

    US102 IPPhone Phone Maintenance If you need to catch a debuging Level log, you need setup on this interface. You can change the password used to login phone GUI in Password option. www.escene.hk Escene Communication...

  • Page 32: Default Setting

    US102 IPPhone In Password option, you can set several parameters as follow: Password Username The login username of the web page Old Password The old password used to login of the web page New Password The new password used to login of the web page...
  • Page 33 US102 IPPhone When use auto provision, you can set several parameters as follow: Auto Provision Auto Provision You can enable/disable auto provision by select on/off Protocol The protocol use for auto provision,it include tftp/http/ftp Software Server The server address of the auto provision...

  • Page 34: Ftp Upgrade

    US102 IPPhone Expension Auto Download This used to auto download enterprise phone from server Enterprise Phonebook Auto Download This used to auto download personal phonebook from server Personal Phonebook Booting Checked This used to checked the auto provision when phone booting...

  • Page 35: Tftp Upgrade

    US102 IPPhone Password The password provide by ftp server Software Upgrade Used to upgrade the software of the phone Kernel Upgrade Used to upgrade the kernel of the phone Configuration You can used update/backup to update/backup the configure file of the...

  • Page 36: Http Upgrade

    US102 IPPhone HTTP Upgrade You can upgrade the software,kernel and configure file for the phone use http. When use http upgrade, you can set several parameters as follow: HTTP Upgrade Select a File Browse the software/kernel/config file you want to upgrade from http...

  • Page 37: Phone Status

    US102 IPPhone When you press ‘Reboot’,the phone will reboot. Phone Status You can see the currently status of the phone when use Phone Status option. www.escene.hk Escene Communication...

  • Page 38: System Info

    US102 IPPhone System Info You can see the system information when used System Info option. Attention: On this interface ,you can see the software and kernel which we used for test and this user_manual is written base on this software and kernel.
  • Page 39 US102 IPPhone www.escene.hk Escene Communication...

  • Page 40: Auto Provision

    US102 IPPhone Appendix： Auto Provision Pre-configuration on TFTP/HTTP/HTTPS/FTP Server When the software or kernel auto-provision is enabled and want to run, IP Phone will check the software and kernel version at first, so we need make some pre-configuration on the provisioning server.
  • Page 41 (You can see the following chapter to see how to download a configuration file from Escene IP hone) and modify by yourself. If the IP phone’s MAC address is 00:11:22:33:44:55, the normal configuration file of it should be 001122334455.xml.

  • Page 42: Automatic Provisioning Using Dhcp Option

    *You can’t rename the file on the provisioning server. The file name is fixed to Account1_Extern.xml.(Account1 is the first account you register) Phonebook on TFTP/HTTP/HTTPS/FTP Server Escene IP phone supports Enterprise Phonebook and Personal Phonebook. Enterprise Phonebook: Enterprise Phonebook is used for all staffs in your office. All phones will download a common phonebook for all staffs.
  • Page 43 US102 IPPhone 1. Start up the “DHCP Management Console”; 2. Expand the DHCP scope which will contain the phones 3. Right-click on the “Scope Options” node 4. Select “Configure Options” 5. In the “General” tab, scroll down the list of options and identify the option labeled “066 Boot Server Host Name”...
  • Page 44 US102 IPPhone It supports three protocols in Auto-Provision:TFTP,HTTP and FTP. The format with provisioning server URL is: TFTP: TFTP://192.168.0.201(192.168.0.201 is the default Server IP address) HTTP: HTTP://192.168.0.201 HTTPS: HTTPS://192.168.0.201 FTP: FTP://192.168.0.201 Username: the user to login FTP/HTTP/HTTPS server Password: the password of the user using to login FTP/HTTP/HTTPS server *Username and password are available in FTP/HTTP/HTTPS only (unavailable in TFTP).
  • Page 45 US102 IPPhone Auto Download Software: Download software from server and upgrade it automatically. Auto Download Kernel: Download kernel from server and upgrade it automatically. Auto Download Config File: Download configuration file from server and update it automatically. BroadsoftCompatibility: If you select this function, you need to put two configuration files (with Broadsoft format) on the provisioning server.
  • Page 46 US102 IPPhone function and input the AES Key matching the one on your server on. ---------------------------------------------------------------------------------------------------------------------- Address: Floor 4,Building C,Yuean Industrial Park,Huangcun Road No.51,Tianhe District,Guangzhou,China. Postal Code: 510660 Tel: (+86)20-28096798 Fax: (+86)20-28096786 http://www.escene.hk Technical Support: E-mail: support@escene.cn www.escene.hk Escene Communication...
