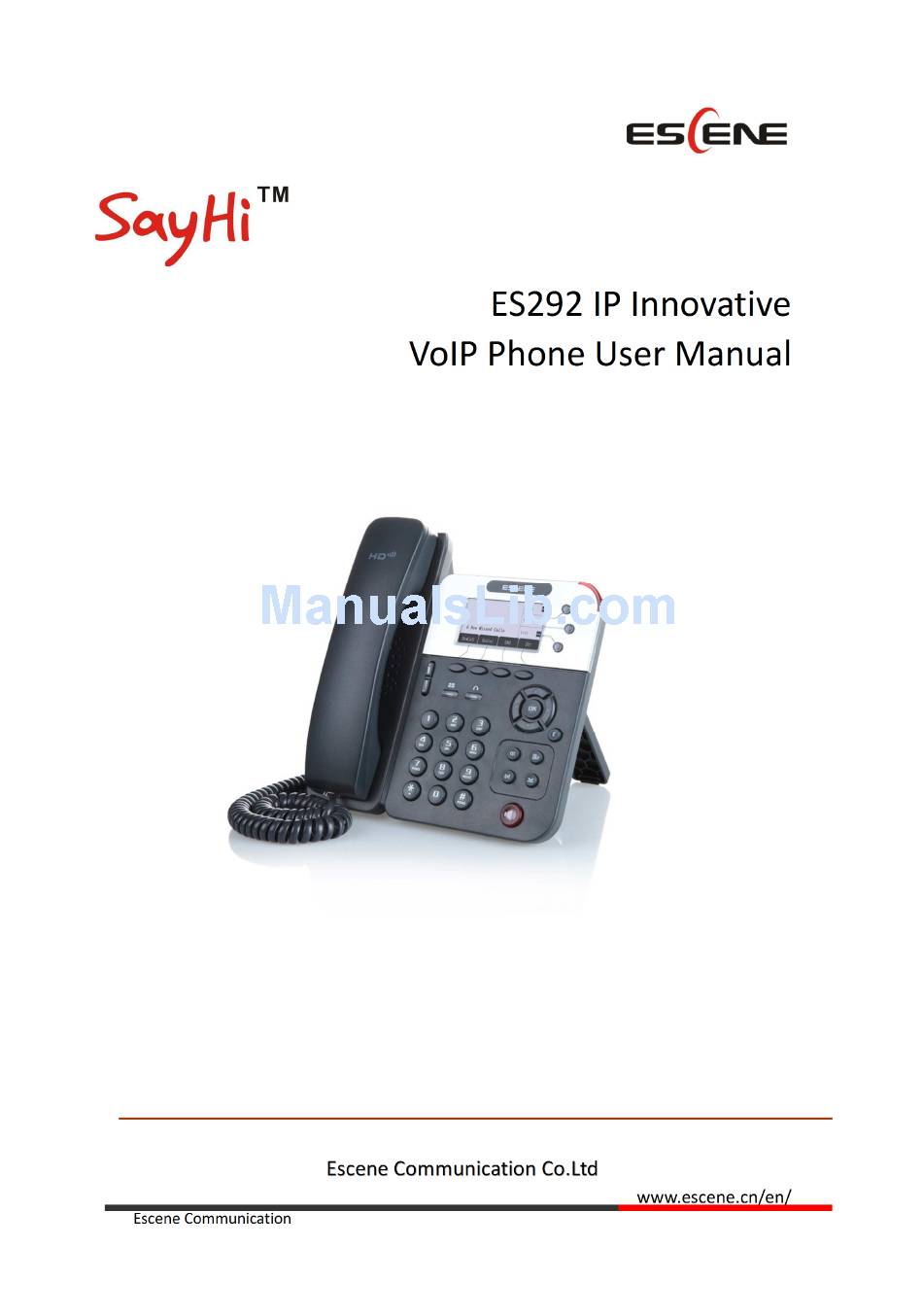

  • Page 1 ES292 IP Innovative VoIP Phone User Manual www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 2: Table Of Contents

    3.7.6 Cannot Set the Features with Keypad ..............23 4. WEB User Interface ........................23 Main Interface-Phone Status ....................23 4.1 Net Work ........................... 24 4.1.1 LAN Port ......................... 24 4.1.2 PC Port ........................26 4.1.3 Advanced ........................ 27 www.escene.cn/en/ Escene Communication http://ArtTel.ru...
  • Page 3 8.2.1 Log .......................... 47 8.2.2 Auto Provision ......................47 9 Password ............................49 10 WEB Other Settings or Information - Appendix ................. 49 10.1 WEB User ........................49 10.2 Multi-Language ....................... 49 10.3 Note Tips ......................... 50 www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 4: Getting Started

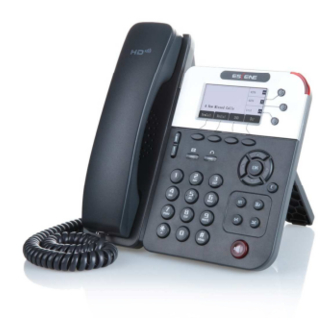

    1. Getting Started About Escene ES292 is a highly innovative based VoIP phone, It can perfectly satisfy all kinds of businessmen's communications. ES292 integrates with 132x64 pixel graphic LCD, a large resolution display, elegant and intuitionist user interface, which you can perfectly experience.ES292 delivers HD audio quality with HD handset, HD speaker and HD codec (G.722), it rich features can effectively improve the communications in working.
  • Page 5 USB(Standard DC 5V) NOTES： ： ： ： Pls make sure your phone support POE feature. You can check the label on the back of the phone , for example "Model: ES292-PN Rev:2.1.0", the P means it support POE feature. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 6: Phone User Interface

    Note: If POE works, the phone doesn't need to connect to the AC power adapter. Make sure the Ethernet cable and switch/hub is POE compliant. 3. Phone User Interface 3.1 Hardware Component Instructions The main hardware components of the ES292 IP Phone are the LCD screen and the keypad. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 7: Phone Screen Display Features

    Hardware component instructions of the ES292 IP Phone are: ITEM DESCRIPTION LCD Screen Displayed information about calls, messages, soft keys, time, date and other relevant data: • Call information — caller ID, call duration • Icons (e.g. • Missed calls or second incoming caller's information •Time and date...
  • Page 8 Screen Top Icon The Screen Top Icon from left to right is: : Handset Hand on status :Speaker Hand on status :Headset Hand on status :Call MUTE :Missed Call :Call Forward :Text Message :Keypad Lock :Network is unavailable www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 9: Basic Network Settings

    Press "Save" key to make it work Tips "Network is changed, press OK reboot " 3.4 SIP Account Settings ES292 IP phone makes calls based on sip accounts, It can support Single account or Multi-account, Each account can be configured to the different SIP server. www.escene.cn/en/ Escene Communication http://ArtTel.ru...
  • Page 10 Disable sip account --1) Select “System setting” > “Advanced setting”； --2) Enter the password required（The default is empty) ； --3) Select “SIP” > “Account sip”； --4) Select “Enable account” > “Disable”； --5) Select “Save” to saves settings www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 11: Basic Features

    --Press Enter or OK button , -You can select which Account want to use, enable/disable this feature and enable/disable reject anonymous 3.5.3 Redial To redial the last placed call from your phone Redial --Press REDIAL button to dial the last number www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 12: Call Log

    "Personal Phone Book", “Enterprise Phone Book”, “LDAP” and “Black List”, - or press Navigation button (in Standby interface) > select the desired contact. --2) Then press button. NOTE: You also can press the "DIR" to login this menu when in the idle. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 13: Multi-Lines To Answer The Call

    To end a call, hang up. Here are some more details. Hang up while using the --Return the handset to its cradle, -or press End Handset Hang up while using the --Press Speaker button that is Red -or press Line button for the appropriate line, Speakerphone www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 14: Using Hold And Recover (Switch Calling Line)

    Transfer redirects a connected call. The target is the number to which you want to transfer the call. Talk to the transfer --1) Press TRANSFER button or press XFER; recipient before --2) Enter number; --3) press “#”（default) , transferring a call www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 15: Using Mute

    Press MENU or OK button > “Function setting” > “DND” > (select line) Enable DND on a single line “Enable” Disable DND --Global DND enabled, press to disable global DND; --Line DND enabled, press twice -or press MENU or OK button > “Function setting” > “DND” >(select www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 16: 3-Way Conference

    Voice Mail --1 ） Press the Voice Mail button(There has Voice Mail icon ,without is --2）Enter the User Password --3） It will login into the voice mail server. You need to follow the IVR to do it. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 17: Advanced Settings

    -or press "OK" button > “Phone book”>“Personal phone book>View All”; --2) Select “Add contact”, press "OK" button; --3) Use the navigation keys to select content, press "OK" button to set and modify: -Name: set the name of contact, www.escene.cn/en/ Escene Communication http://ArtTel.ru...
  • Page 18 --3) Select the group you want to modify, press the "OK" button to set and modify, press "Save" to save the change Delete group --1) Press "DIR" soft key, -or press "MENU" button > “Phone book”>“Personal phone book>View All”, -or press "OK" button > “Phone book”>“Personal phone book>View www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 19: Black List

    --3) Press "Add" and input the name\office number\mobile number\other number\SIP account who what you want to add into the Black List. View the Contact --1) Press "DIR" in the idle, from Black List -or press "MENU" or "OK" button > “Phone book”>“Black List”, www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 20: Using Call Logs

    SayHi series IP Phone can through two ways configuration it, one is setting in MENU, another is setting in website. Here just description in MENU. NOTES: When you want to input the IP address like ".", it was replaced by the "*". www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 21: Language Setting

    --3) After you finish select, press Save to make it work. 3.7.2 Message ES292 have Message feature. It will display in the LCD when it has a New Message. --1）Press OK or MENU button； Create a Message --2）Select "Messaging"...

  • Page 22: Ring Tone And Volume Setting

    “Function Setting”, you can select " T9 > search" --2) Then press Enable/Disable and Save. --3) When you back to idle, you can use the digital keypad to search the contact. NOTES: The Search Phone Book setting default is Accurate Search. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 23: Cannot Set The Features With Keypad

    HTTP://192.168.0.10 or 192.168.0.10) in the address bar of web browser on your PC. The default user name is root (case-sensitive) and the password is root (case-sensitive). Main Interface-Phone Status Here you can see as below information: System Run Time, Register Status, Network Status, System Information, www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 24: Net Work

    Hardware ID, Kernel Version, Auto-Provision Server URL, TFTP Server IP. 4.1 Net Work 4.1.1 LAN Port Basic ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP, PPPoE. DNS Settings Select the DNS mode that you want. www.escene.cn/en/ Escene Communication http://ArtTel.ru...
  • Page 25 The default Telnet port is 23,if you want to change it(for example change it to 2003). You must input IP and Telnet port to login the manage page (for example telnet 192.168.0.200:2003).It will take effect on next reboot. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 26: Pc Port

    Router feature is for the phone PC Port. You must input IP address (it’s equivalent to a gateway) and Net mask. If you want to use DHCP function, please turn it on, input start IP and end IP. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 27: Advanced

    When using VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable vlan for phone and pc The vlan ID you want the phone or pc to join [LAN/PC Port] www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 28: Sip Account

    Pls contact us to buy another model that can supports PSTN. Amount Of Line The line key of account used, default is 2 Account Used Display Name It is showed as Caller ID when making a phone call www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 29: Call

    Share with the line. BLA Number BLA Number Subscribe Period Subscribe expire time. Register Expire Time IP phone automatically registered every time SIP Transport There are UDP/TCP/TLS three options Ring Type Select this account ringing type. 5.2 Call www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 30: Security

    UDP Keep-alive Interval Default is 30 second. 5.3 Security ITEM DECSRIPTION Security SIP Encryption Enable/Disable SIP encryption. RTP Encryption Enable/Disable RTP encryption. Encryption Algorithm The encryption algorithm at this time we only have RC4. Encryption Key The key with encryption. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 31: Phone Setting

    You can choose to save the call list into the phone or not. Network Packet When select on, then you can capture the phone’s packet use notebook Mirroring which connect to pc port of the phone www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 32: Time Settings

    You can use 24 hour time format or 12 hour time format Time Format You can choose the appropriate time format. Date Format Time Zone-GMT You can select different time zone for the phone Manual Setting Setting time manually. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 33: Call

    Open this feature, the phone light(Message) will be bright when it get message. Open this feature, it will be ringing when it get message. Play Voice Mail Tone Turn on or off the display with Miss call in the phone LCD. Miss Call Display www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 34: Voip Call Forward

    If the phone was busy working, the call will be transfer to others. If No Answer If the phone was no answer, the call will be transfer to others. Ring Frequency The ring frequency with the VOIP Call Forward. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 35: Qos

    Ring Volume The ring volume default is Lv3, the range is 0~9. Handset Volume The handset volume default is Lv5, the range is 1~9. Speaker Phone Volume The speaker volume default is Lv5, the range is 1~9. www.escene.cn/en/ Escene Communication http://ArtTel.ru...
  • Page 36 Please upload a ring tone with G711A audio coding, Maximum 10 rings and the total sizes must less than 150k. Audio Codec Use the navigation keys to highlight the desired one in the Enabled/Disable Codes list, and press the to move to the other list. Jitter Buffer www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 37: Line Keys

    You can use multicast paging to quickly and easily forward time sensitive announcements out to people within the multicast group. Call Park You can use call park feature to place a call on hold, and then retrieve the call www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 38: Function Keys

    Soft Keys: Soft key is the key with below display in the LCD. You can change it for your mind to the other features in many all kinds of status. As below example, when you dialing with someone, the LCD display soft key is Send \Del \Empty\End, Empty means nothing in it. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 39: Dial Plan

    Enable this feature will limit the dial length. Default is 25. No Dial Timeout Setting the range with no dial timeout, default is 5. Dial Rule Select the Add Rule button to add dial rule, pls see as below detail. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 40: Ip Strategy

    7 Phone Book The phone book including Group, Contact, LDAP and Ban list, please review the following for more details: 7.1 Group You can add, edit and delete group in a phone book on this web page. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 41: Contact

    You can edit or move this contact to Ban List after you select You can download and save this contact to PC after you select 7.3 LDAP NOTES: If you want to know more detail about LDAP, pls find it in the office website to www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 42: Ban List

    BASE:DC=ldap,DC=escene,DC=com User Name：bb@ldap.escene.com Pass Word：escene_2012 LDAP Name Attributes 1:sn LDAP Name Attributes 2:cn LDAP Number Attributes 1:telephoneNumber 7.4 Ban List You can add, edit and delete contact in a Ban List on this web page . www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 43: Phone Maintenance

    8 Phone Maintenance 8.1 Basic NOTES: Don't cut off the electricity or network cable when doing upgrade in the below ways! 8.1.1 HTTP Upgrade You can upgrade the software, kernel and configuration etc. files by HTTP. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 44: Ftp Upgrade

    Used for the administrator to find out or making sure the problem with this equipment. All Config File All Config File includes: Configuration, Extern, Log, XML Phone book, Enterprise Phone Book. 8.1.2 FTP Upgrade You can upgrade the software, kernel and configure files by FTP. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 45: Tftp Upgrade

    [NOTES： ： ： ： The mode doesn't support this feature] NOTES: It's not necessary to input filename when doing backup Configuration, Phone Book, EXT Module. 8.1.3 TFTP Upgrade You can upgrade the software, kernel and configure files by TFTP. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 46: Default Setting

    You can load the phone to the factory default setting in default setting option. Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot. 8.1.5 Reboot You can use reboot option to reboot the phone. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 47: Advanced

    When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP,HTTP,HTTPS,FTP, server. For the detailed information about auto provision, you can find it in the official website: HTTP://www.escene.cn/en www.escene.cn/en/ Escene Communication http://ArtTel.ru...
  • Page 48 Auto Provision Frequency Used for setting the time interval for auto provision Auto Provision Time Used for the specific time for auto provision Auto Provision Next Time Reset the Auto Provision Next Upgrading time. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 49: Password

    In the upper right corner of the website page, you can select the user or logout. 10.2 Multi-Language In the upper right corner of the website page, you can select the language in the below list. www.escene.cn/en/ Escene Communication http://ArtTel.ru...

  • Page 50: Note Tips

    10.3 Note Tips In the right middle of the website page, there is a Note tips in every function page. Hope it can help you to know something about that. www.escene.cn/en/ Escene Communication http://ArtTel.ru...
