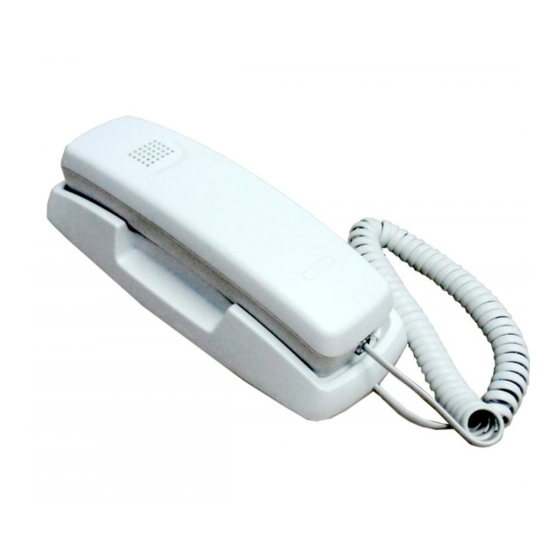

  • Page 1 HS108 IPPhone HS108 IP Phone User Manual www.escene.hk/en Escene Communication...

  • Page 2: Table Of Contents

    HS108 IPPhone Tables of Contents 1.Getting Started ........................1 Technical Features ......................1 2.Phone overview ........................2 The unit menu functions framework ..................3 3. Basic Call Handling ....................... 4 Do Not Disturb (WEB set >SIP account>Account 1> Do Not Disturb ) ........ 5 4.

  • Page 3: Getting Started

    HS108 IPPhone 1. Getting Started Technical Features Tips: The following functions in the unit cannot operation, only operate under the WEB. Item Technical Features English, Chinese Language Line Function Function Keys :Tranfer、HOLD、Redail、RLS、Number Keys Keys Voip SIP 2.0 Protocol Network HTTP、BOOTP、FTP、TFTP、IEEE 802.1Q Protocol G.723.1 (5.3K 6.4K b/S)、G.729 A (8Kb/s)、G.711 A/U (64Kb/S)、G.722(64Kb/S)

  • Page 4: Phone Overview

    HS108 IPPhone 2.Phone overview The unit keys and hardware www.escene.hk/en Escene Communication www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 48 46...

  • Page 5: The Unit Menu Functions Framework

    HS108 IPPhone The unit menu functions framework www.escene.hk/en Escene Communication www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 48 46...

  • Page 6: Basic Call Handling

    Note: The bold type of the following text in table signifies the phone's button. Placing a Call Here are some easy ways to place a call on SayHi HS108 IP Phone:： If you want to... Then…...

  • Page 7: Do Not Disturb (Web Set >Sip Account>Account 1> Do Not Disturb )

    HS108 IPPhone Hang up while using the -- Return the handset to its cradle Handset Do Not Disturb (WEB set >SIP account>Account 1> Do Not Disturb To end a call, hang up. Here are some more details. If you want to...

  • Page 8: Web Settings

    HS108 IPPhone 4. Web Settings We can configure IP Phone more handy through web setting.. Enter it (for example http://192.168.0.200) into the address bar of web browser..Tips:Please check IP address by pressing the button ‘*1*1*2’in the on hook status.The default login name and password are both “root”.
  • Page 9 HS108 IPPhone After config the network parameter,press next,then you can config sip account for the phone. Press Finish,the base configuration of the phone is complete,now you can use the phone to call with sip. Network www.escene.hk/en Escene Communication www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 48 46...
  • Page 10 HS108 IPPhone You can config the network parameters for the phone on the web page. Choose network,you will find the following parameters: Field Description DHCP Config the phone get ip info from DHCP server IP Address Config the ip manual for phone...

  • Page 11: Sip Account

    HS108 IPPhone HTTP Port The default web port is 80,if you change it(for example change it to88), You must use IP and Web port to login the web page(for example http://192.168.0.200:88). It will take effect on next reboot. Telnet Port...

  • Page 12: Audio

    HS108 IPPhone Field Description Enable You can choose on/off to enable/disable the line. Account Mode VOIP Display Name It is showed as Caller ID when making a phone call Username It is a username provide by SIP Server Authenticate Name...

  • Page 13: Phonebook

    HS108 IPPhone 2) Use the navigation keys to highlight the desired one in the Enabled/Disable Codecs list, and press to move to the other list. 3) Choose Submit to save the change. Of course, you can control the voice bulk in this choose.

  • Page 14: Enterprise Phonebook

    HS108 IPPhone If you want to add a BanList, you just ought to click „Add BanList‟. You can edit an existed BanList by click You can delete an existed BanList by click , if you want to delete all BanLists, you just ought to click ‟Delete All BanList‟.

  • Page 15: Advance

    HS108 IPPhone Advance Phone Setting You can use phone setting to set the time,qos,port Mirroring for the phone. When used Phone Setting option,you can set several parameters as follow: Phone Setting DTMF The DTMF transmitted mode,include RFC 2833,Inband,SIP Info Set Time Mode...

  • Page 16: Vlan Setting

    HS108 IPPhone Time Zone-GMT You can select different time zone for the phone Manual Setting This used to manual set time for the phone The qos priority,support diff-serv and precedence Network Packet When select on,then you can capture the phone‟s packet use notebook...

  • Page 17: Vpn Setting

    HS108 IPPhone VPN Setting IF you need to setup a VPN Setting, you should fill below options. When used VPN Setting option, you can set several parameters as follow: VLAN Setting Enable VPN You can enable/disable VPN for phone and pc VPN Type: There is one choose you can choice.
  • Page 18 HS108 IPPhone Click "add rule" to entry this interface. Dial Plan Setting Dial Plan ID The ip of a phone which you want to call prefix The number which you need to press actually if you want to call the...

  • Page 19: Global Sip

    HS108 IPPhone Called Delete There have two option, Enable or Disable. Number Tips (Note: When you want to add code and delete at the same time, you can add code first, after that base on the number you add, decide the position and length of the delete code.) Global SIP You also can setup the SIP server on Global SIP.
  • Page 20 HS108 IPPhone You can change the password used to login phone GUI in Password option. In Password option, you can set several parameters as follow: Password Username The login username of the web page Old Password The old password used to login of the web page...

  • Page 21: Password

    HS108 IPPhone Password Default Setting You can load the phone to the factory default setting in default setting option. Press the „Reset to Factory Setting‟ option,the phone will load to factory default setting on next reboot. Auto Provision When you open the auto provision function, the phone will auto provision if the phone detect a higher sofrwre or kernel which are put on the software server.
  • Page 22 HS108 IPPhone When use auto provision, you can set several parameters as follow: Auto Provision Auto Provision You can enable/disable auto provision by select on/off Protocol The protocol use for auto provision,it include tftp/http/ftp Software Server The server address of the auto provision...

  • Page 23: Ftp Upgrade

    HS108 IPPhone Auto Download This used to auto download personal phonebook from server Personal Phonebook Booting Checked This used to checked the auto provision when phone booting Auto Provision This used to set the time interval for auto provision Freqency...

  • Page 24: Tftp Upgrade

    HS108 IPPhone Configuration You can used update/backup to update/backup the configure file of the phone Phone Book You can used update/backup to update/backup the phonebook of the phone EXT Module You can used update/backup to update/backup the expansion of the...

  • Page 25: Http Upgrade

    HS108 IPPhone HTTP Upgrade You can upgrade the software, kernel and configure file for the phone use http. When use http upgrade, you can set several parameters as follow: HTTP Upgrade Select a File Browse the software/kernel/config file you want to upgrade from http...

  • Page 26: Phone Status

    HS108 IPPhone When you press „Reboot‟,the phone will reboot. Phone Status You can see the currently status of the phone when use Phone Status option. www.escene.hk/en Escene Communication www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 48 46...

  • Page 27: System Info

    HS108 IPPhone System Info You can see the system information when used System Info option. Attention: On this interface ,you can see the software and kernel which we used for test and this user_manual is written base on this software and kernel.
