- Page 1 Installation and operating instructions CPX39xx-0010 Multi-touch Control Panel with CP-Link 4 interface for use in hazardous locations, zone 2/22 Version: Date: 30.05.2018...
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 Notes on the documentation ........................ 5 Explanation of symbols........................ 6 Documentation issue status ...................... 7 2 For your safety............................ 8 Intended use ............................ 8 Notes about operation in potentially explosive areas ................ 9 2.2.1 Special conditions (ATEX) .................... 9 2.2.2 Special conditions (IECEx) .................... - Page 4 Table of Contents 10.4 Support and Service ........................ 38 Version: 0.1 CPX39xx-0010...
-
Page 5: Notes On The Documentation
EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Explanation Of Symbols
Notes on the documentation Explanation of symbols The following symbols with corresponding warnings or explanatory text are used in the documentation. Read and follow the warnings. Symbols that warn of personal injury: DANGER Serious risk of injury Note this warning. Hazard with high risk of death or serious injury. WARNING Risk of injury Note this warning. -
Page 7: Documentation Issue Status
Notes on the documentation Documentation issue status Version Comment Preliminary Version CPX39xx-0010 Version: 0.1... -
Page 8: For Your Safety
Beckhoff Automation GmbH & Co. In addition, the following actions are excluded from the liability of Beckhoff Automation GmbH & Co. KG: • Failure to comply with this documentation. -
Page 9: Notes About Operation In Potentially Explosive Areas
For your safety Notes about operation in potentially explosive areas 2.2.1 Special conditions (ATEX) WARNING Danger of explosion Gases or dusts can be ignited in potentially explosive areas. Read and follow the safety instructions to pre- vent deflagration or explosions. Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 119 V. -
Page 10: Special Conditions (Iecex)
For your safety 2.2.2 Special conditions (IECEx) WARNING Danger of explosion Gases or dusts can be ignited in potentially explosive areas. Read and follow the safety instructions to pre- vent deflagration or explosions. Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 119 V. -
Page 11: Marking
For your safety 2.2.3 Marking The Control Panel CP39xx-0010 bears The Control Panel CP39xx-0010 is a continuous serial number, markings certified for potentially explosive areas and a production date on the name and bears the following: plate: ATEX: DEKRA 18ATEX0053 X II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIC T100°C Dc IECEx:... -
Page 12: Safety Instructions
• The sensitivity of an Industrial PC against malicious software increases with the number of installed and active software. • Uninstall or disable unnecessary software. Further information about the safe handling of networks and software can be found in the Beckhoff Information System: http://infosys.beckhoff.com... -
Page 13: Staff Qualification
For your safety Staff qualification All operations involving Beckhoff software and hardware may only be carried out by qualified personnel with knowledge of control and automation engineering. The qualified personnel must have knowledge of the administration of the Control Panel and the associated network. -
Page 14: Transport And Storage
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. Version: 0.1 CPX39xx-0010... -
Page 15: Product Overview

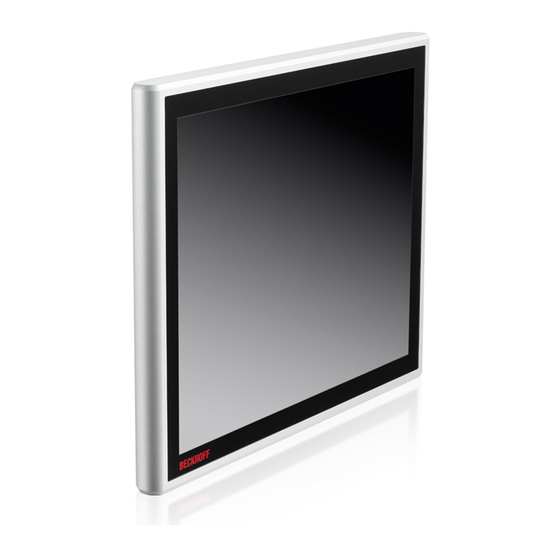

With all the interfaces like power supply, CP-Link 4 and ground The new Beckhoff panel generation with industry-standard multi-touch display offers a solution for any application. The Control Panel is also suitable for hazardous locations of Zone 2/22. The wide selection of models offers different display sizes and formats. -
Page 16: Access To The Interfaces
Product overview Access to the interfaces The interface of the Control Panel are located below the connection block. Fig. 1: Connection block of the Control Panel CPX39xx-0010 with all interfaces Fig. 2: Connection block with protective cover Version: 0.1 CPX39xx-0010... - Page 17 Product overview Fig. 3: After removing the two M3 screws with a star screwdriver Torx size 10 the protection cover can be removed. CPX39xx-0010 Version: 0.1...
-
Page 18: Name Plate
Product overview Name plate The Control Panel CP39xx-0010 bears The Control Panel CP39xx 0010 is a continuous serial number, markings certified for potentially explosive areas and a production date on the name and bears the following: plate: ATEX: DEKRA 18ATEX0053 X II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIC T100°C Dc IECEx:... -
Page 19: Interfaces Cpx39Xx-0010
Product overview Interfaces CPX39xx-0010 4.3.1 CP-Link 4 Architecture Description 4.3.1.1 CP-Link 4 - The Two Cable Display Link The CPX39xx-0010 multi-touch panels can be operated up to 100 m away from the PC. CP-Link 4 transfers DVI and USB together via a CAT.6A cable. The CU8802 CP-Link 4 transmitter box is connected to the PC via DVI and USB. -
Page 20: Description Of The Interfaces
Product overview Description of the interfaces Interface CP-Link4 (X102) Power supply (X101) Ground Also see about this 2 Ground [} 21] 4.4.1 Power supply (X101) Conductive cross-section The connector is specified for 7.5 A and can lift conductive cross-sections of 1.5 mm The power supply for the Control Panel is established via the 4-pole M12 socket (X101). -
Page 21: Cp-Link 4 Input (X102)
Product overview 4.4.2 CP-Link 4 Input (X102) X102 SG 8-pole M12 built-in-IP67 METZ connect CAT6Ads The Control Panel is connected with the transmitter box CU8802/ CU8803 via the CP-Link 4 Input (X102). Signal Signal CP-Link 4_0P CP-Link 4_3P CP-Link 4_0N CP-Link 4_3N CP-Link 4_1P CP-Link 4_2N... -
Page 22: Mounting And Wiring
Mounting and wiring Mounting and wiring Mounting The Control Panel CPX39xx is designed for industrial application in machine and plant engineering. The Control Panel is intended for mounting arm installation either via 100 x 100 mm mounting interface. The ambient conditions specified for operation must be observed (see chapter: Technical Data [} 33] ). Permitted mounting position The Control Panel may only be mounted horizontally. - Page 23 Mounting and wiring Malfunction possible with missing ground connection A proper ground connection of the device is absolutely necessary for the correct function of the touchscreen. CPX39xx-0010 Version: 0.1...
-
Page 24: Wiring
Mounting and wiring Wiring 5.2.1 Preparation and protective earthing CAUTION The mains plug must be disconnected Please read the documentation for the external devices prior to connecting them! During thunderstorms, plug connector must neither be inserted nor removed! When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! CAUTION CU8803-0000 disconnect power supply If using the CP-Link 4 –... -
Page 25: Connecting
Mounting and wiring 5.2.2 Connecting NOTICE Use the correct fuse The power supply must be protected with maximum 4 A. Cable Cross Sections For the connection of the power supply, wiring with a cable-cross-section of 0.5 … 1.5 mm² must be used. With bigger distances between voltage source and Control Panel, you take the voltage drop as a function of the cable-cross-section as well as voltage fluctuations of your distribution voltage into account, so that is secured that the voltage doesn't fall under 22 V at the power supply. -
Page 26: Fitting The Power Supply
Mounting and wiring 5.2.3 Fitting the power supply Version: 0.1 CPX39xx-0010... -
Page 27: Operation
Operation Operation Switching the Control Panel on and off Switching on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the Control Panel is activated. Shutting down and switching off Control software such as is typically used on Industrial PCs permits various users to be given different rights. -
Page 28: Servicing And Maintenance
Maintenance The Control Panel is maintenance-free. Do not open the Control Panel. For hardware problems, please contact the Beckhoff Service Emergency procedures In case of fire, the Control Panel should be extinguished with powder or nitrogen. -
Page 29: Troubleshooting
The Control Panel shows no function No power supply to the Control Check power supply cable Panel/ Industrial PC 1. Correctly connect cable 2. Call Beckhoff Service Cable not connected Computer boots, software starts, but Cause of the fault is either in the... -
Page 30: Assembly Dimensions
Assembly dimensions Assembly dimensions CPX3915-0010 Version: 0.1 CPX39xx-0010... - Page 31 Assembly dimensions CPX3919-0010 CPX39xx-0010 Version: 0.1...
- Page 32 Assembly dimensions CPX3921-0010 Version: 0.1 CPX39xx-0010...
-
Page 33: Technical Data
Technical Data Technical Data Product name CPX3915-0010 CPX3919-0010 CPX3921-0010 Dimensions (W x H x D) 375 x 290.9 x 445.1 x 364.8 x 549.8 x 330.3 x 69.5 mm 69.5 mm 69.5 mm Weight approx. 5.3 kg approx. 7.4 kg approx. -
Page 34: Appendix
Appendix Appendix 10.1 Standards reference for explosive atmospheres The following standards have been used: ATEX Standard Description EN 60079-0:2012+A11:2013 Explosive atmospheres - Part 0: Equipment - General requirements EN 60079-15:2010 Explosive atmospheres - Part 15: Equipment protection by type of protection “n” EN 60079-31:2014 Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"... -
Page 35: Approvals For Usa And Canada
Appendix 10.2 Approvals for USA and Canada FCC: Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 36: Connection Kits/ Connecting Cables/ Accessories
Appendix 10.3 Connection Kits/ Connecting Cables/ Accessories One 4-pole power supply connector is provided with the Panel PC. Optionally prefabricated connection cables for the network connection are available. Accessories for CPX39xx-0010, optional The following accessories are available: Connecting ca- Network cable with IP65 connector bles CU8802-0000 Transmitter box for CP-Link 4 –... - Page 37 Appendix Connecting cable for CPX39xx-0010, optional The following accessories are available: Accessories Cable for CU880x C9900-K667 Connecting cable RJ45, Cat.6A, 3 m, one end with IP 65 connector for Control Panel CP39xx-0010 or CPX39xx-0010 C9900-K652 Connecting cable RJ45, Cat.6A, 5 m, one end with IP 65 connector for Control Panel CP39xx-0010 or CPX39xx-0010 C9900-K653 Connecting cable RJ45, Cat.6A, 10 m, one end with IP 65 connector for Control Panel...
-
Page 38: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
