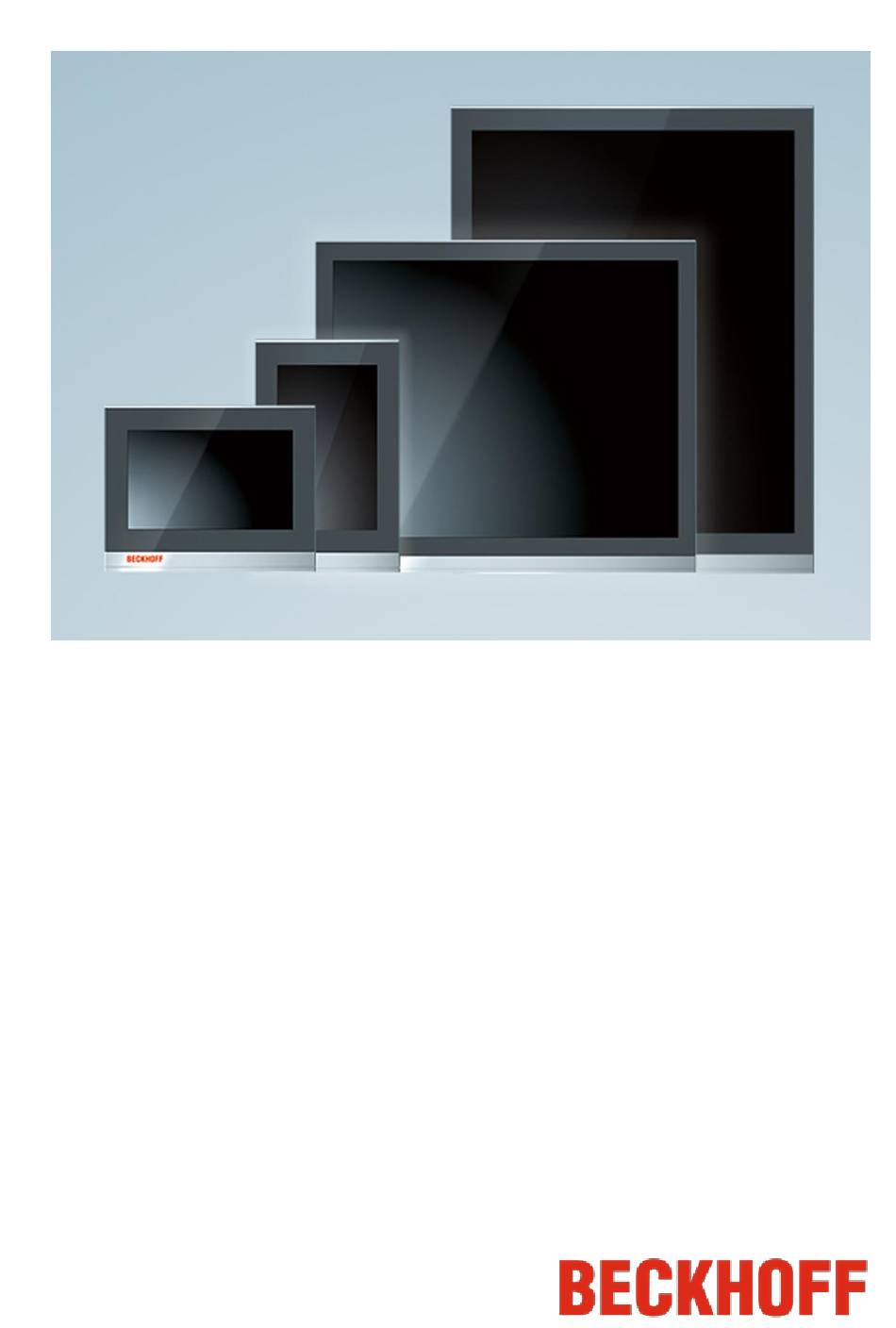

- Page 1 Installation and Operating instructions for CP29xx-0000 Multi-touch Control Panel with DVI/ USB Extended interface CP29xx-0010 Multi-touch Control Panel with CP-Link 4 interface Version: 2.1 Date: 2021-02-05...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Foreword Notes on the Documentation 1.1.1 Liability Conditions 1.1.2 Trademarks 1.1.3 Patent Pending 1.1.4 Copyright 1.1.5 State at Delivery 1.1.6 Delivery conditions Description of safety symbols Basic safety measures Operator’s obligation to exercise diligence 1.4.1 National regulations 1.4.2... - Page 4 6 Troubleshooting 7 Assembly dimensions 8 Technical Data 9 Appendix Beckhoff Support and Service 9.1.1 Beckhoff branches and partner companies 9.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approvals for the United States of America FCC Approval for Canada...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply. CP29xx... -
Page 6: Description Of Safety Symbols
Foreword 1.2 Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury! If you do not adhere the safety advise adjoining this symbol, there is immediate danger to life and health of individuals! DANGER Risk of injury! -
Page 7: Basic Safety Measures
Foreword 1.3 Basic safety measures Before the Industrial PC is switched off, software that is running must be properly closed. Otherwise it is possible that data on the storage medium is lost. Please read the section Switching the Control Panel on and off. -
Page 8: Operator's Obligation To Exercise Diligence
• the operation manual is in good condition and complete, and always available for reference at the location of the product. Do not open the housing of the Control Panel! For technical support contact Beckhoff Service. Note 1.4.1 National regulations Depending on the type of machine and plant in which the Control Panel is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. -
Page 9: Product Description
2.1 Product overview Front view of CP29xx The new Beckhoff panel generation with industry-standard multi-touch display offers a feature-laden solution for any application. The wide selection of models offers different display sizes and formats as well as custom designs. Even for single-touch users, this new panel generation offers an excellent price- to-performance ratio and represents an economical alternative to other systems. - Page 10 Product Description CP29xx...
-
Page 11: Appropriate Use
Product Description 2.2 Appropriate Use The multi-touch built-in Control Panel CP29xx is designed for industrial application in machine and plant engineering. A multi-touch display is accommodated in a stainless steel housing. The Control Panel is installed in the front of control cabinets. The DVI/USB extension technology integrated in the CP29xx-0000 Control Panel enables remote Panel operation at a distance of up to 50 m from the PC via a standard cable. - Page 12 Product Description Connection block CP29xx-0010 For the pin assignment see chapter Interfaces CP29xx-0010. CP29xx...
-
Page 13: Interfaces Cp29Xx-0000
Product Description 2.4 Interfaces CP29xx-0000 X106 X105 X104 X102, Ground X101 DVI-E Input USB-E USB in X103 Power Input USB out 2.4.1 DVI-E Input (Digital Visual Interface-Extended) (X106) X106 DVI-D 3 X 8-pole digital PCB installation (MOLEX 74320-9000 / 74320-9004) The DVI-E connection (X 106) is used for transferring the video signal from the Industrial PC to the Control Panel. -
Page 14: Usb In (X 104)
Product Description 2.4.3 USB in (X 104) X104 USB type B, PCB installation (FCI 61729-0010B USB Receptacle B-Type) The Control Panel is connected with the Industrial PC via the USB port (X 104, connector type B). USB3.0 standard is supported. Signal Signal 2.4.4 USB out (X 102, X 103) -
Page 15: Interfaces Cp29Xx-0010
Product Description 2.5 Interfaces CP29xx-0010 2.5.1 CP-Link 4 Architecture Description CP-Link 4 – The Two Cable Display Link 2.5.1.1 The CP29xx-0010 multi-touch panels can be operated up to 100 m away from the PC. CP-Link 4 transfers DVI and USB together via a CAT.6 cable. - Page 16 Product Description CP-Link 4 – The One Cable Display Link 2.5.1.2 The power supply for the Control Panel can also be provided via CP-Link 4. The CU8803 CP-Link 4 transmitter box is used instead of the CU8802 or the PCIe module. The Control Panel remains unchanged.
-
Page 17: Interfaces
Product Description 2.5.2 Interfaces X102, X104 Ground X101 X103 CP-Link 4 Power USB out Input 2.5.3 USB out (X 102, X 103) X102, X103 USB Type-A twin circuit board mounting (FCI 72309-0030B USB Double Receptacle A-Type) The two USB interfaces (X102, X103, connector type A) are used for connecting peripheral devices with USB connection. -
Page 18: Power Supply (X101)
Product Description CP-Link 4 cables with above 60 m cable-length with ferrite core CP-Link 4 cables with above 60 m cable-length are fitted with a ferrite core at one end. Note If connecting the cable make sure to plug in the cable as shown in the picture with the ferrite core Control Panel-sided. -
Page 19: Connection Kits/ Connection Cables/Accessories
Product Description 2.6 Connection Kits/ Connection Cables/Accessories One 5-pole power supply connector is provided with the Control Panel. Optionally prefabricated connection kits for the DVI-E/ USB-E connection are available. 2.6.1 Connection Kits DVI-E/ USB-E connection for CP29xx-0000, optional The following connection kits are available: Connecting kit DVI-E/ USB-E Connection C9900-K622... -
Page 20: Connecting Cables For Cp29Xx-0010, Optional
Product Description 2.6.3 Connecting cables for CP29xx-0010, optional The following connection cables are available: Accessories Cable for CU880x C9900-K671 Connecting cable RJ45 CAT.6 , 3 m C9900-K672 Connecting cable RJ45 CAT.6 , 5 m C9900-K673 Connecting cable RJ45 CAT.6 , 10 m C9900-K674 Connecting cable RJ45 CAT.6 , 20 m... -
Page 21: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP29xx... -
Page 22: Mounting
Mounting 4 Mounting The Control Panel CP29xx is designed for mounting in control cabinets in machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical Data). 4.1 Installation in the control cabinet 4.1.1 Preparation of the control cabinet The control cabinet wall must be prepared with the required mounting opening according to the Control Panel’s dimensions (see chapter Assembly... -
Page 23: Mounting Of The Control Panel
Mounting 4.1.4 Mounting of the Control Panel The Control Panel is installed in the cabinet wall with clamping levers. For the cutout dimension of the Control Panel see chapter Assembly dimensions, the wall thickness is between 1 mm and 5 mm. 1. -
Page 24: Fitting The Power Supply Cable
Mounting 4.1.5 Fitting the power supply cable Fit the cables for the power supply of the Control Panel, using the included material for assembling the connectors: Material for assembling the connector Plug connector 5-pole Stain relief housing with lacing cord Conductive cross-section The connector is specified for 16 A and can lift conductive cross-sections until 1.5 mm Note... -
Page 25: Connecting The Control Panel
Mounting 4.2 Connecting the Control Panel The mains plug must be disconnected Please read the documentation for the external devices prior to connecting them! Attention During thunderstorms, plug connector must neither be inserted nor removed! When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! CU8803-0000 disconnect power supply If using the CP-Link 4 - One Cable Display Link, the 24 V power supply of the CP-Link 4 transmitter box must be switched off before disconnecting the CP-Link 4 output... -
Page 26: Operating Instructions
Operating Instructions 5 Operating Instructions 5.1 Switching the Control Panel on and off 5.1.1 Switching on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the Control Panel is activated. 5.1.2 Shutting down and switching off Control software such as is typically used on Industrial PCs permits various users to be given different rights. -
Page 27: Servicing And Maintenance
Operating Instructions 5.3 Servicing and maintenance 5.3.1 Cleaning Disconnect power supply Switch off the device and all connected devices, and disconnect the device from the power supply. DANGER The device can be cleaned with a soft, damp cleaning cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. -
Page 28: Troubleshooting
No power supply to the Control Check power supply cable function Panel/ Industrial PC Correctly connect cable Call Beckhoff Service Cable not connected Computer boots, software starts, Cause of the fault is either in the Call the manufacturer of the... -
Page 29: Assembly Dimensions
7 Assembly dimensions For the assembly dimensions of the Control Panels please visit our homepage. Here you will find the actual drawings using the link: http://download.beckhoff.com/download/Technical_Drawings/Industrial_PC/Control_Panel/CP29xx Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. -
Page 30: Technical Data
Technical Data 8 Technical Data Risk of explosion! Do not use the Control Panel in areas of explosive hazard! Danger Pixel errors Pixel errors in the TFT display are production-caused and represent no complaint- reason! Note Anomalies of the Touchscreen Anomalies of the touchscreen sensor are production-caused and represent no complaint-reason! Note... -
Page 31: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 32: Approvals For Usa And Canada
Appendix 9.2 Approvals for USA and Canada 9.3 FCC Approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
