- Page 1 Installation and Operating instructions for CP29xx Multi-touch built-in Control Panel with DVI/ USB Extended interface Version: 1.4 Date: 2013-12-19...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Foreword Notes on the Documentation 1.1.1 Liability Conditions 1.1.2 Trademarks 1.1.3 Patent Pending 1.1.4 Copyright 1.1.5 State at Delivery 1.1.6 Delivery conditions Description of safety symbols Basic safety measures Operator’s obligation to exercise diligence 1.4.1 National regulations 1.4.2... - Page 4 6 Troubleshooting 7 Assembly dimensions 8 Technical Data 9 Appendix Beckhoff Support and Service 9.1.1 Beckhoff branches and partner companies 9.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approvals for the United States of America FCC Approval for Canada...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH apply. CP29xx... -
Page 6: Description Of Safety Symbols
Foreword 1.2 Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury! If you do not adhere the safety advise adjoining this symbol, there is immediate danger to life and health of individuals! DANGER Risk of injury! -
Page 7: Basic Safety Measures
Foreword 1.3 Basic safety measures Before the Industrial PC is switched off, software that is running must be properly closed. Otherwise it is possible that data on the storage medium is lost. Please read the section Switching the Control Panel on and off. -
Page 8: Operator's Obligation To Exercise Diligence
• the operation manual is in good condition and complete, and always available for reference at the location of the product. Do not open the housing of the Control Panel! For technical support contact Beckhoff Service. Note 1.4.1 National regulations Depending on the type of machine and plant in which the Control Panel is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. -
Page 9: Product Description

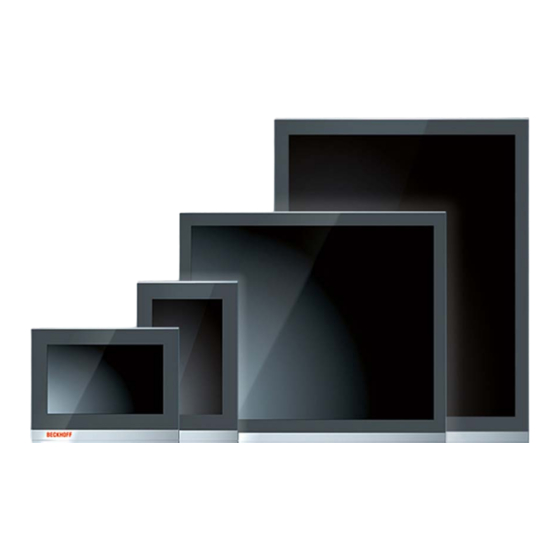

2.1 Product overview Front view of CP29xx The new Beckhoff panel generation with industry-standard multi-touch display offers a feature-laden solution for any application. The wide selection of models offers different display sizes and formats as well as custom designs. Even for single-touch users, this new panel generation offers an excellent price- to-performance ratio and represents an economical alternative to other systems. -
Page 10: Appropriate Use
Product Description 2.2 Appropriate Use The multi-touch built-in Control Panel CP29xx is designed for industrial application in machine and plant engineering. A multi-touch display is accommodated in a stainless steel housing. The Control Panel is installed in the front of control cabinets. The DVI/USB extension technology integrated in the CP29xx Control Panel enables remote Panel operation at a distance of up to 50 m from the PC via a standard cable. -
Page 11: Interfaces
Product Description 2.4 Interfaces X106 X105 X104 X102, Ground X101 DVI-E Input USB-E USB in X103 Power Input USB out 2.4.1 DVI-E Input (Digital Visual Interface-Extended) (X106) X106 DVI-D 3 X 8-pole digital PCB installation (MOLEX 74320-9000 / 74320-9004) The DVI-E connection (X 106) is used for transferring the video signal from the Industrial PC to the Control Panel. -
Page 12: Usb-Extended Input (X 105)
Product Description 2.4.2 USB-Extended Input (X 105) X105 Connection via standard-RJ45-cabel, not crossed The Control Panel is connected with the CU8801 USB to USB extended converter box via the USB- Extended input (X 105). In order to realize a distance of 50 m without hubs, with USB extended the USB signal is converted so that it can be transferred via 50 m CAT5 cables commonly used for Ethernet wiring. -
Page 13: Connection Kits/ Connection Cables
Product Description 2.5 Connection Kits/ Connection Cables One 5-pole power supply connector is provided with the Control Panel. Optionally prefabricated connection kits for the DVI-E/ USB-E connection are available. 2.5.1 Connection Kits for DVI-E/ USB-E connection, optional The following connection kits are available: Connecting kit DVI-E/ USB-E Connection C9900-K622... -
Page 14: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP29xx... -
Page 15: Mounting
Mounting 4 Mounting The Control Panel CP29xx is designed for mounting in control cabinets in machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical Data). 4.1 Installation in the control cabinet 4.1.1 Preparation of the control cabinet The control cabinet wall must be prepared with the required mounting opening according to the Control Panel’s dimensions (see chapter Assembly... -
Page 16: Mounting Of The Control Panel
Mounting 4.1.4 Mounting of the Control Panel The Control Panel is installed in the cabinet wall with clamping levers. For the cutout dimension of the Control Panel see chapter Assembly dimensions, the wall thickness is between 1 mm and 5 mm. 1. -
Page 17: Fitting The Power Supply Cable
Mounting 4.1.5 Fitting the power supply cable Fit the cables for the power supply of the Control Panel, using the included material for assembling the connectors: Material for assembling the connector Plug connector 5-pole Stain relief housing with lacing cord Conductive cross-section The connector is specified for 16 A and can lift conductive cross-sections until 1.5 mm Note... -
Page 18: Connecting The Control Panel
Mounting 4.2 Connecting the Control Panel Risk of explosion! The Control Panel must never be connected or disconnected in an area that is subject to explosion hazard! Danger The mains plug must be disconnected Please read the documentation for the external devices prior to connecting them! Attention During thunderstorms, plug connector must neither be inserted nor removed! When disconnecting a plug connector, always handle it at the plug. -
Page 19: Operating Instructions
Operating Instructions 5 Operating Instructions 5.1 Switching the Control Panel on and off 5.1.1 Switching on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the Control Panel is activated. 5.1.2 Shutting down and switching off Control software such as is typically used on Industrial PCs permits various users to be given different rights. -
Page 20: Servicing And Maintenance
Operating Instructions 5.3 Servicing and maintenance 5.3.1 Cleaning Disconnect power supply Switch off the device and all connected devices, and disconnect the device from the power supply. DANGER The device can be cleaned with a soft, damp cleaning cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. -
Page 21: Troubleshooting
No power supply to the Control Check power supply cable function Panel/ Industrial PC Correctly connect cable Call Beckhoff Service Cable not connected Computer boots, software starts, Cause of the fault is either in the Call the manufacturer of the... -
Page 22: Assembly Dimensions
7 Assembly dimensions CP2907 with 7“ display, landscape (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP2912 with 12“ display, landscape (all dimensions are in mm) CP29xx... - Page 23 Assembly dimensions CP2915 with 15“ display, landscape (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
- Page 24 Assembly dimensions CP2915 with 15“ display, portrait (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
- Page 25 Assembly dimensions CP2916 with 15.6“ display, landscape (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
- Page 26 Assembly dimensions CP2918 with 18.5“ display, landscape (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
- Page 27 Assembly dimensions CP2918 with 18.5“ display, portrait (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
- Page 28 Assembly dimensions CP2919 with 19“ display, landscape (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
- Page 29 Assembly dimensions CP2921 with 21.5“ display, landscape (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
- Page 30 Assembly dimensions CP2924 with 24“ display, landscape (all dimensions are in mm) Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning CP29xx...
-
Page 31: Technical Data
Note Product name CP29xx Dimensions (B x H x T) See chapter Assembly dimensions Weight CP2907: 1.46 kg CP2918: 5.10 kg CP2912: 2.95 kg CP2919: 5.36 kg CP2915: 3.64 kg CP2921: 5.90 kg CP2916: 4.22 kg CP2924: 7.18 kg... -
Page 32: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 33: Approvals For Usa And Canada
Appendix 9.2 Approvals for USA and Canada 9.3 FCC Approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
