1. Introduction

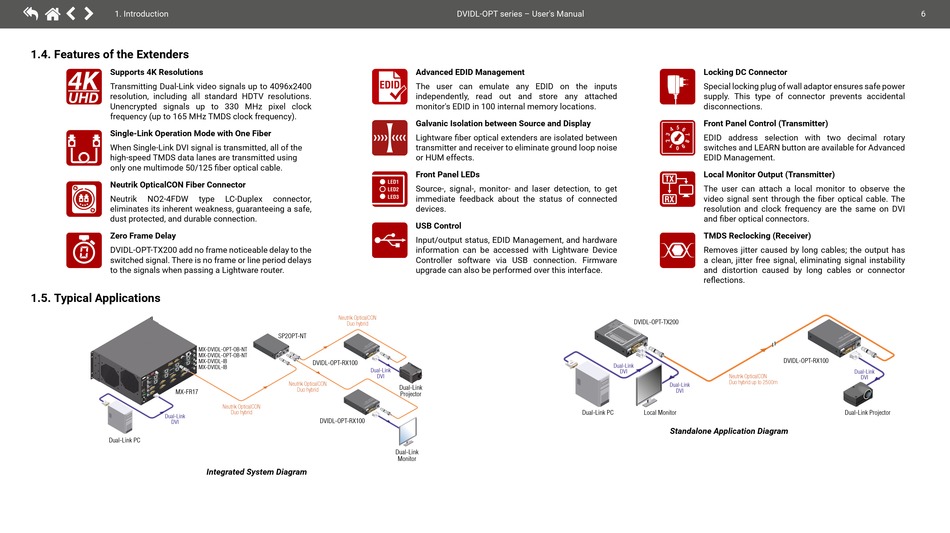

1.4. Features of the Extenders
Supports 4K Resolutions
Transmitting Dual-Link video signals up to 4096x2400
resolution, including all standard HDTV resolutions.
Unencrypted signals up to 330 MHz pixel clock
frequency (up to 165 MHz TMDS clock frequency).
Single-Link Operation Mode with One Fiber
When Single-Link DVI signal is transmitted, all of the
high-speed TMDS data lanes are transmitted using
only one multimode 50/125 fiber optical cable.
Neutrik OpticalCON Fiber Connector
Neutrik NO2-4FDW
eliminates its inherent weakness, guaranteeing a safe,
dust protected, and durable connection.
Zero Frame Delay
DVIDL-OPT-TX200 add no frame noticeable delay to the
switched signal. There is no frame or line period delays
to the signals when passing a Lightware router.
1.5. Typical Applications
IVE
L.ACT
IVE
L.ACT
L.ACT IVE
L.ACT IVE L.ACT IVE
L.ACT IVE
IVE
L.ACT
L.ACT IVE
MX-FR17
Dual-Link
DVI
Dual-Link PC
type LC-Duplex connector,
Neutrik OpticalCON
Duo hybrid
SP2OPT-NT
MX-DVIDL-OPT-OB-NT
MX-DVIDL-OPT-OB-NT
MX-DVIDL-IB
DVIDL-OPT-RX100
IVE
L.ACT
L.ACT IVE
IVE MX-DVIDL-IB
L.ACT
IVE
L.ACT
Neutrik OpticalCON
Duo hybrid
Neutrik OpticalCON
Duo hybrid
DVIDL-OPT-RX100
Integrated System Diagram
DVIDL-OPT series – User's Manual
Advanced EDID Management
The user can emulate any EDID on the inputs
independently, read out and store any attached
monitor's EDID in 100 internal memory locations.
Galvanic Isolation between Source and Display
Lightware fiber optical extenders are isolated between
transmitter and receiver to eliminate ground loop noise
or HUM effects.
Front Panel LEDs
LED1
Source-, signal-, monitor- and laser detection, to get
LED2
immediate feedback about the status of connected
LED3
devices.
USB Control
Input/output status, EDID Management, and hardware
information can be accessed with Lightware Device
Controller software via USB connection. Firmware
upgrade can also be performed over this interface.
Dual-Link
DVI
Dual-Link
Projector
Dual-Link
Monitor
Locking DC Connector
Special locking plug of wall adaptor ensures safe power
supply. This type of connector prevents accidental
disconnections.
Front Panel Control (Transmitter)
EDID address selection with two decimal rotary
switches and LEARN button are available for Advanced
EDID Management.
Local Monitor Output (Transmitter)
The user can attach a local monitor to observe the
video signal sent through the fiber optical cable. The
resolution and clock frequency are the same on DVI
and fiber optical connectors.
TMDS Reclocking (Receiver)
Removes jitter caused by long cables; the output has
a clean, jitter free signal, eliminating signal instability
and distortion caused by long cables or connector
reflections.
DVIDL-OPT-TX200
Dual-Link
DVI
Neutrik OpticalCON
Duo hybrid up to 2500m
Dual-Link
DVI
Dual-Link PC Local Monitor
Standalone Application Diagram
6
DVIDL-OPT-RX100
Dual-Link
DVI
Dual-Link Projector
