5. Software Control – Lightware Device Controller

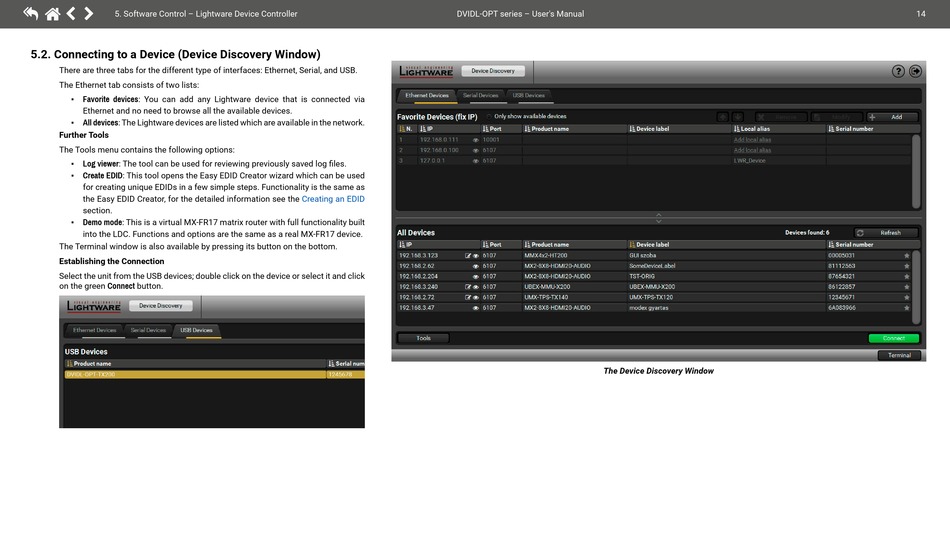

5.2. Connecting to a Device (Device Discovery Window)
There are three tabs for the different type of interfaces: Ethernet, Serial, and USB.
The Ethernet tab consists of two lists:
▪ Favorite devices: You can add any Lightware device that is connected via
Ethernet and no need to browse all the available devices.
All devices: The Lightware devices are listed which are available in the network.
▪
Further Tools
The Tools menu contains the following options:
Log viewer: The tool can be used for reviewing previously saved log files.
▪
Create EDID: This tool opens the Easy EDID Creator wizard which can be used
▪
for creating unique EDIDs in a few simple steps. Functionality is the same as
the Easy EDID Creator, for the detailed information see the
section.
▪ Demo mode: This is a virtual MX-FR17 matrix router with full functionality built
into the LDC. Functions and options are the same as a real MX-FR17 device.
The Terminal window is also available by pressing its button on the bottom.
Establishing the Connection
Select the unit from the USB devices; double click on the device or select it and click
on the green Connect button.
DVIDL-OPT series – User's Manual
Creating an EDID
The Device Discovery Window
