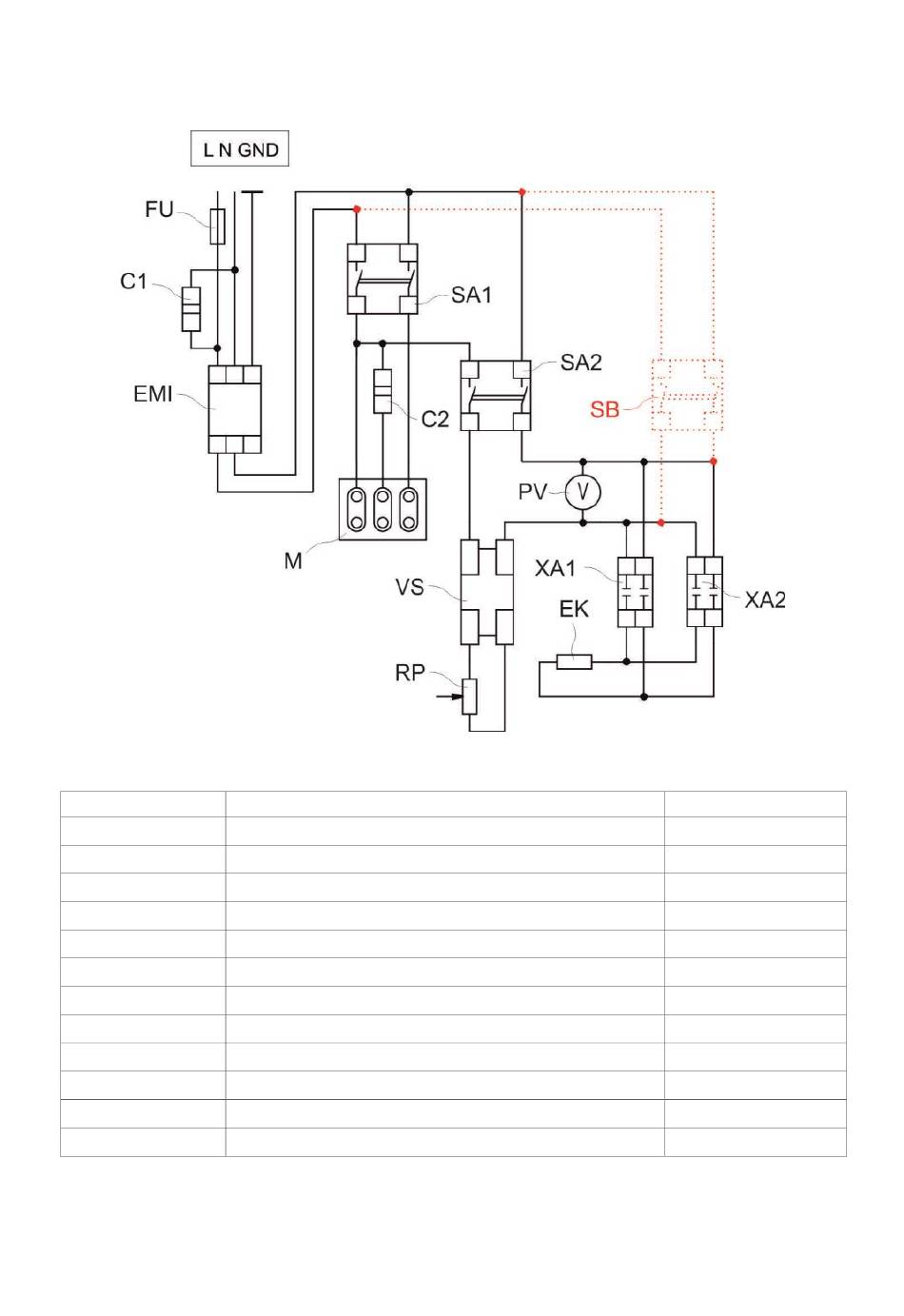

APPENDIX A. ELECTRIC DIAGRAM
PRO version has additional part that is shown in red dotted lines
Sign
C1
C2
EK
EMI
FU
M
PV
RP
SA1, SA2
SB
VS
XA1, XA2
COTTON CANDY MACHINE ACB-09E
Designation
Capacitor
Capacitor (AC motor)
Heating element 1200W
EMI filter
Fuse
Electric motor
Voltmeter
Variable resistor
Key switch
'Quick start' button (PRO version only)
Power regulator
Brush Assembly
REVISED 28-Sep-17
Part no.
16623
1287
3734
13706
2536
4245
95
2789
3730
2393
14927
4200
25
